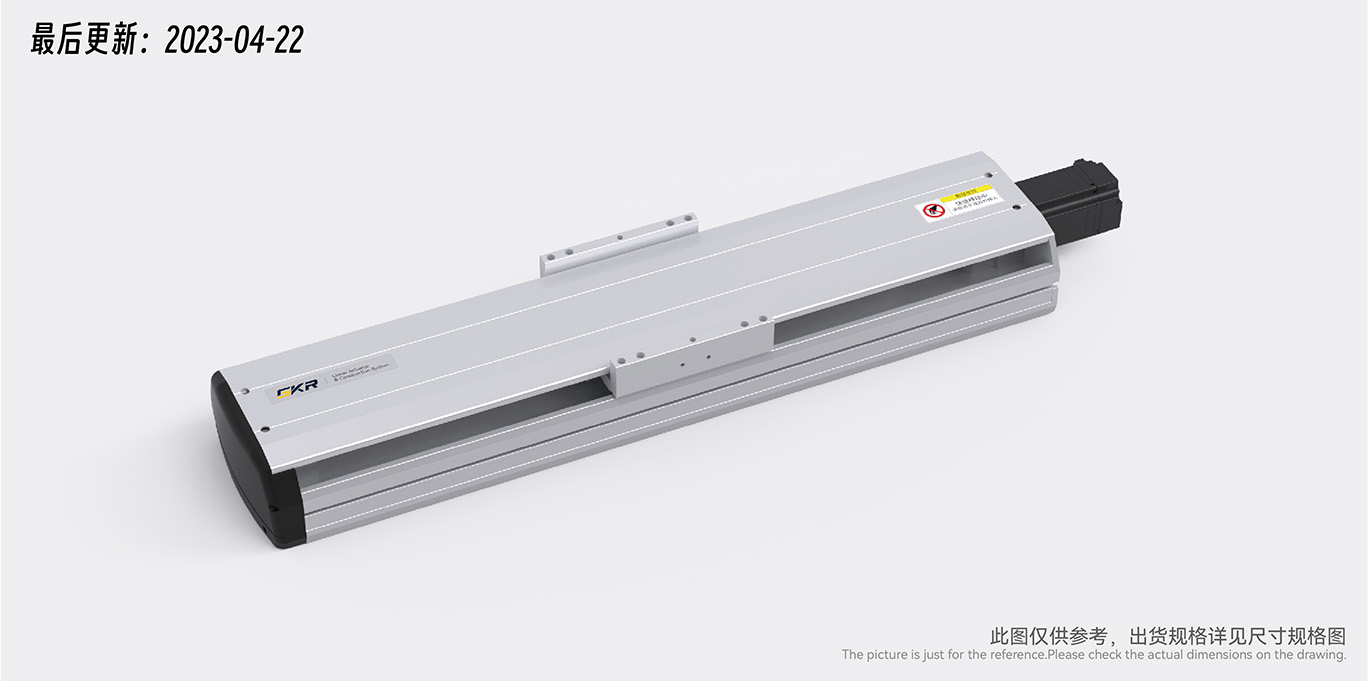

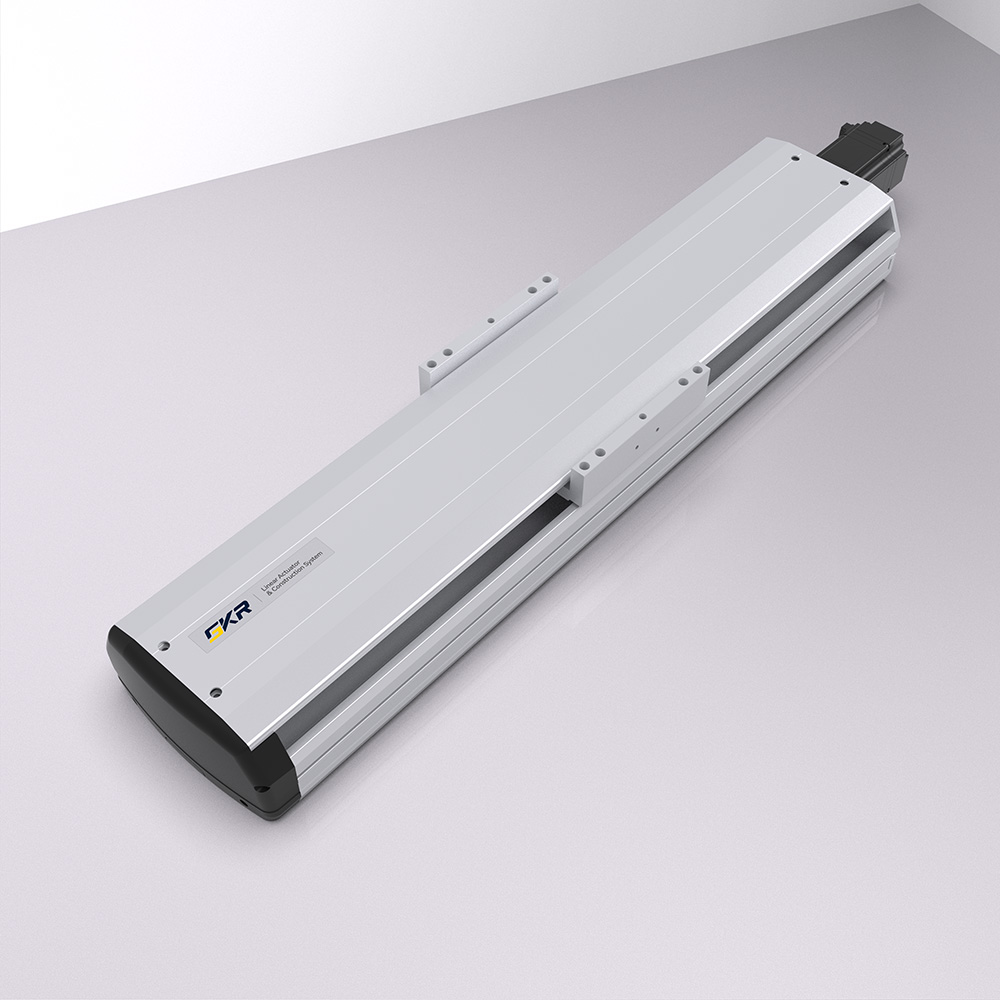

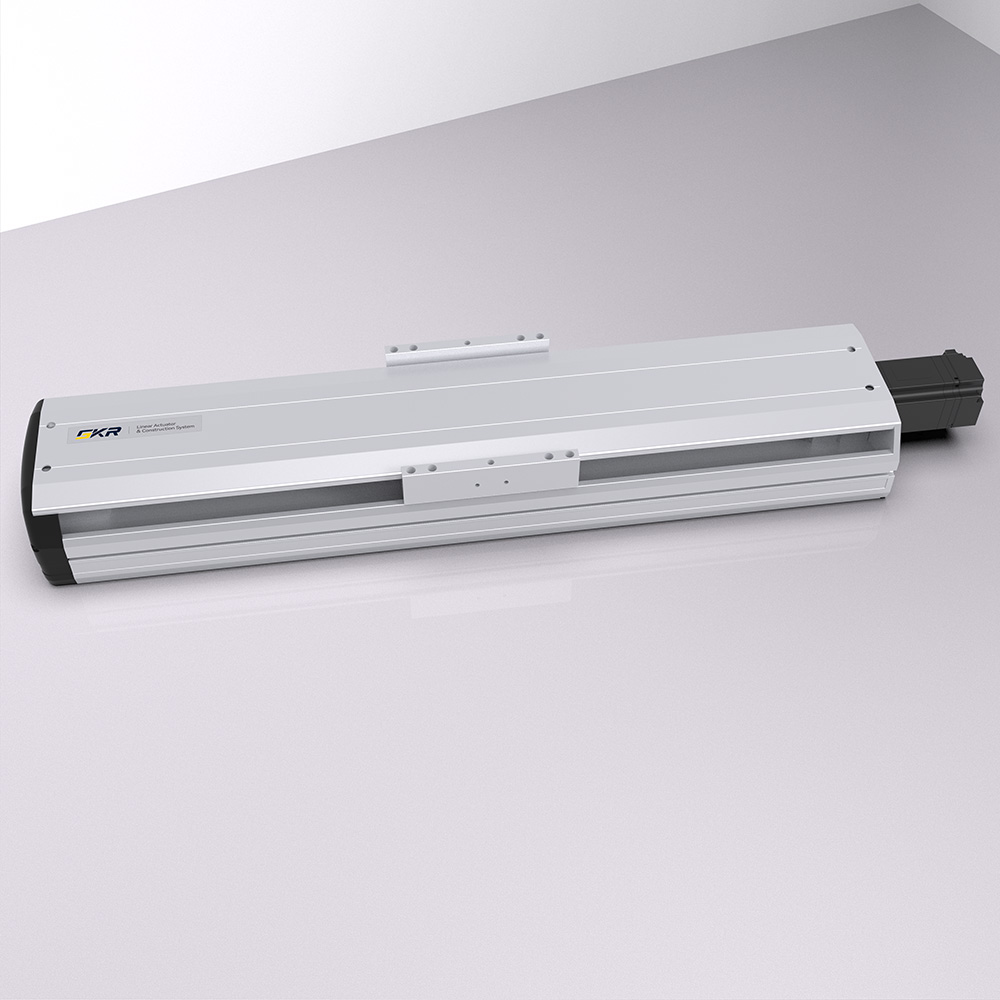

PSS170 Series, ball screw type slide module
PSS170 Series, ball screw type slide module
PSS170 Series, ball screw type slide module
PSS170 Series, ball screw type slide module
PSS170 Series, ball screw type slide module
PSS170 Series, ball screw type slide module

PSS170 Series, ball screw type slide module

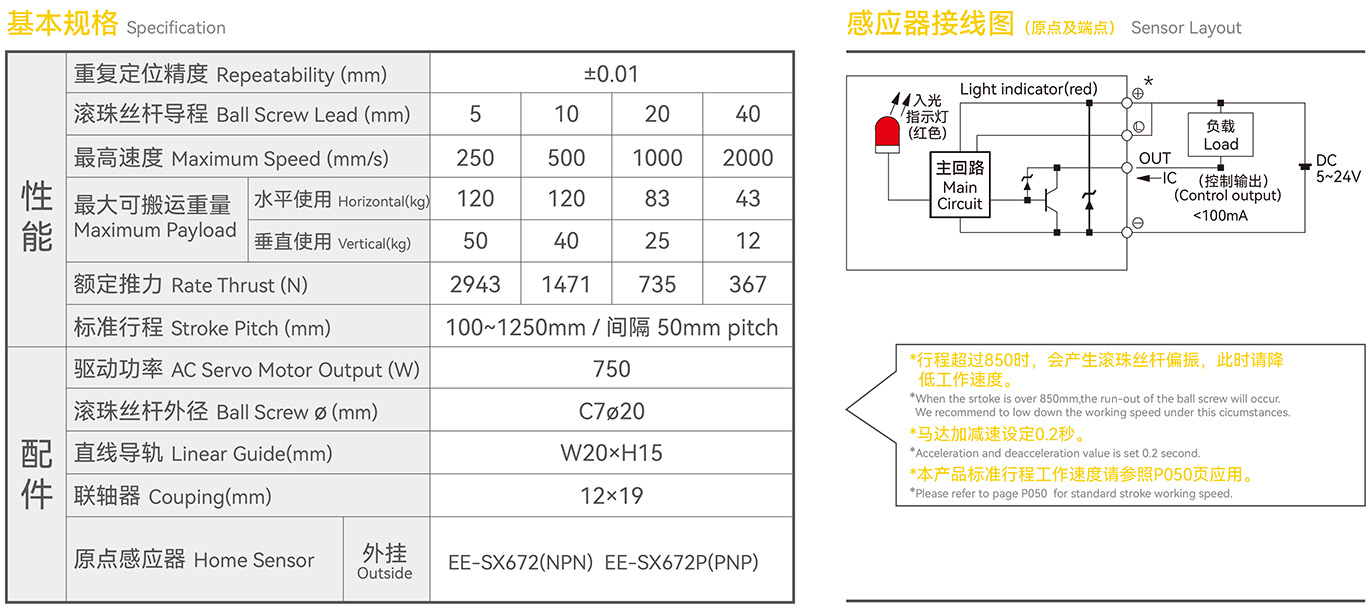

Larger PSS products. Driven by 20mm diameter screws;
  • Repeatability±0.01mm
  • Ball Screw øC7ø20
  • Ball Screw Lead5mm/10mm/20mm/40mm
  • Horizontal Handling Weight120kg/120kg/83kg/43kg
  • Vertical Handling Weight50kg/40kg/25kg/12kg

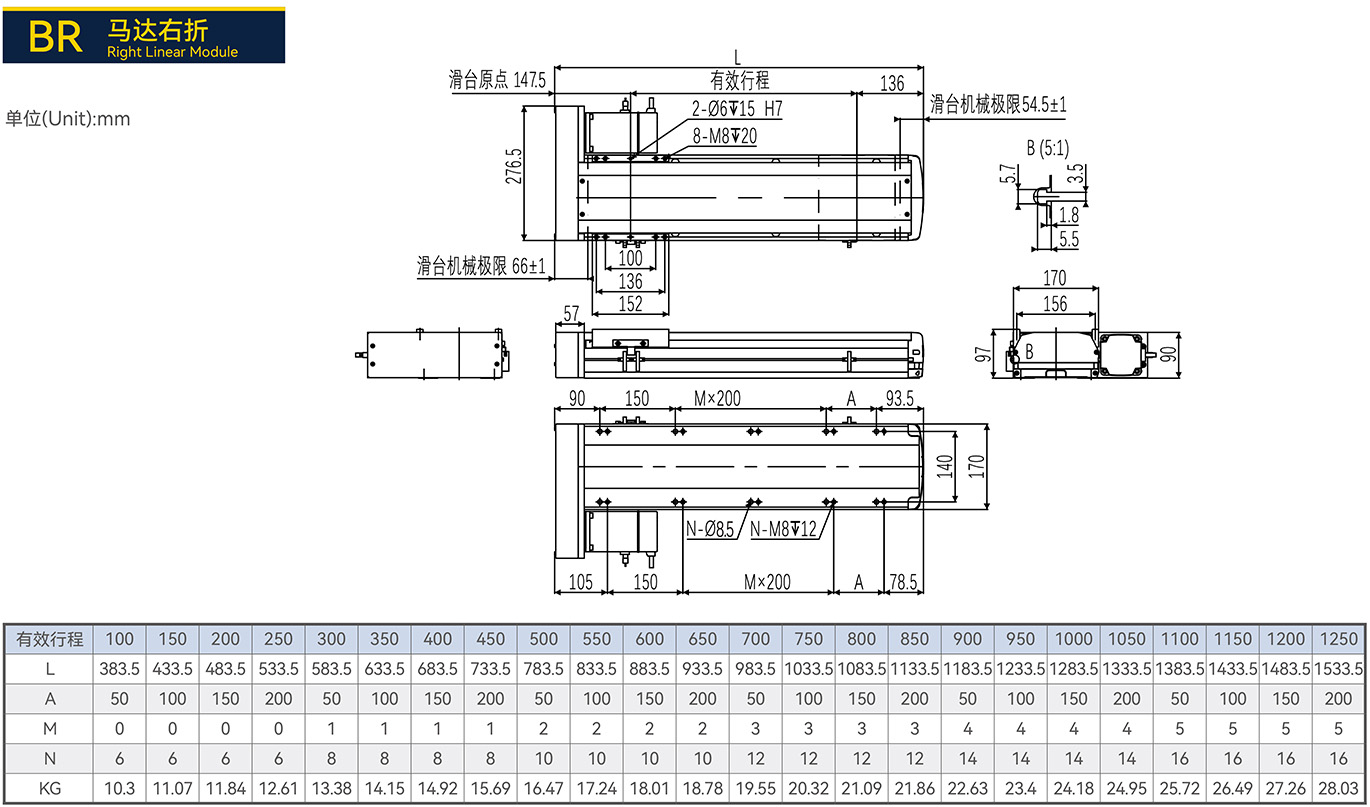

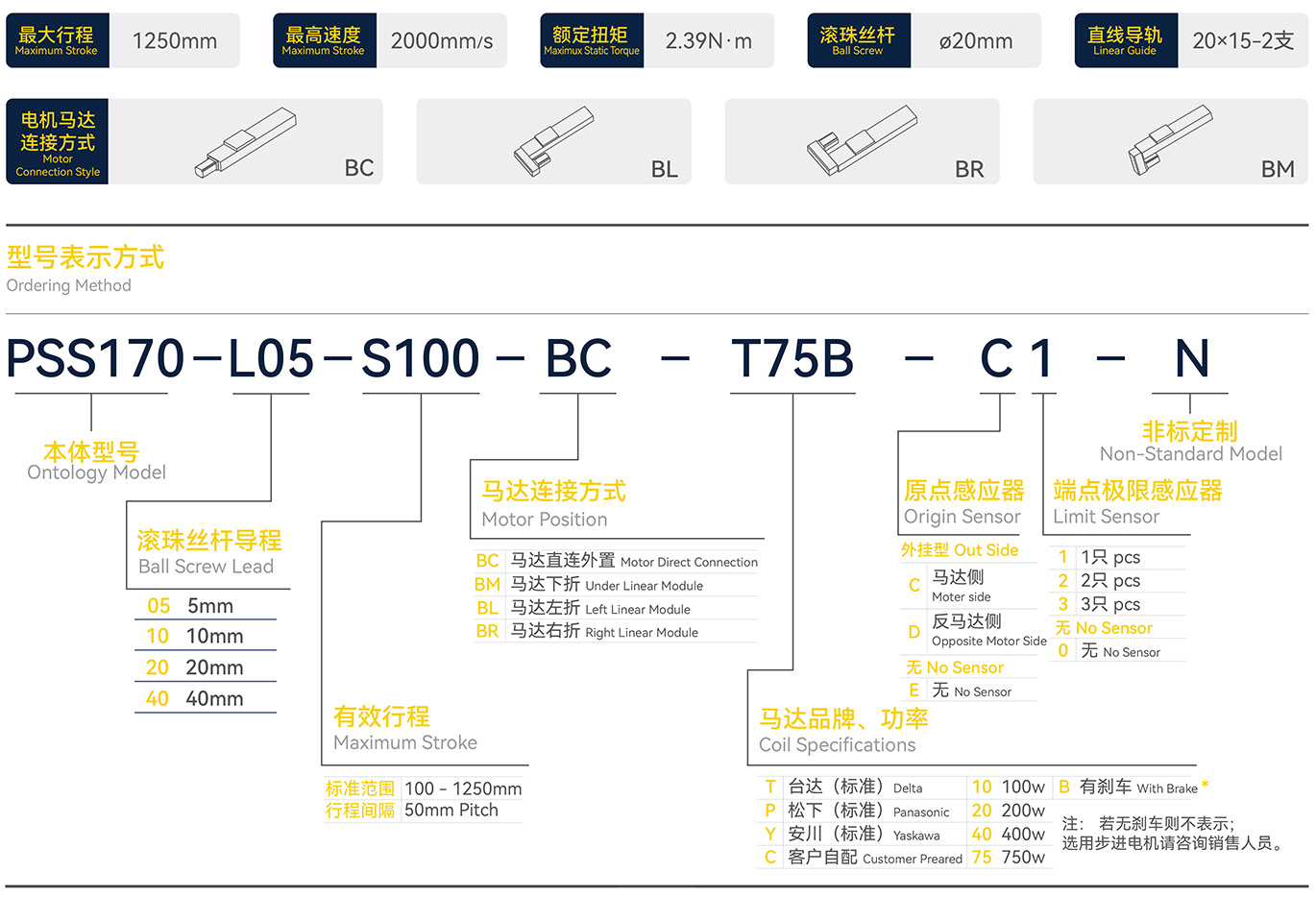

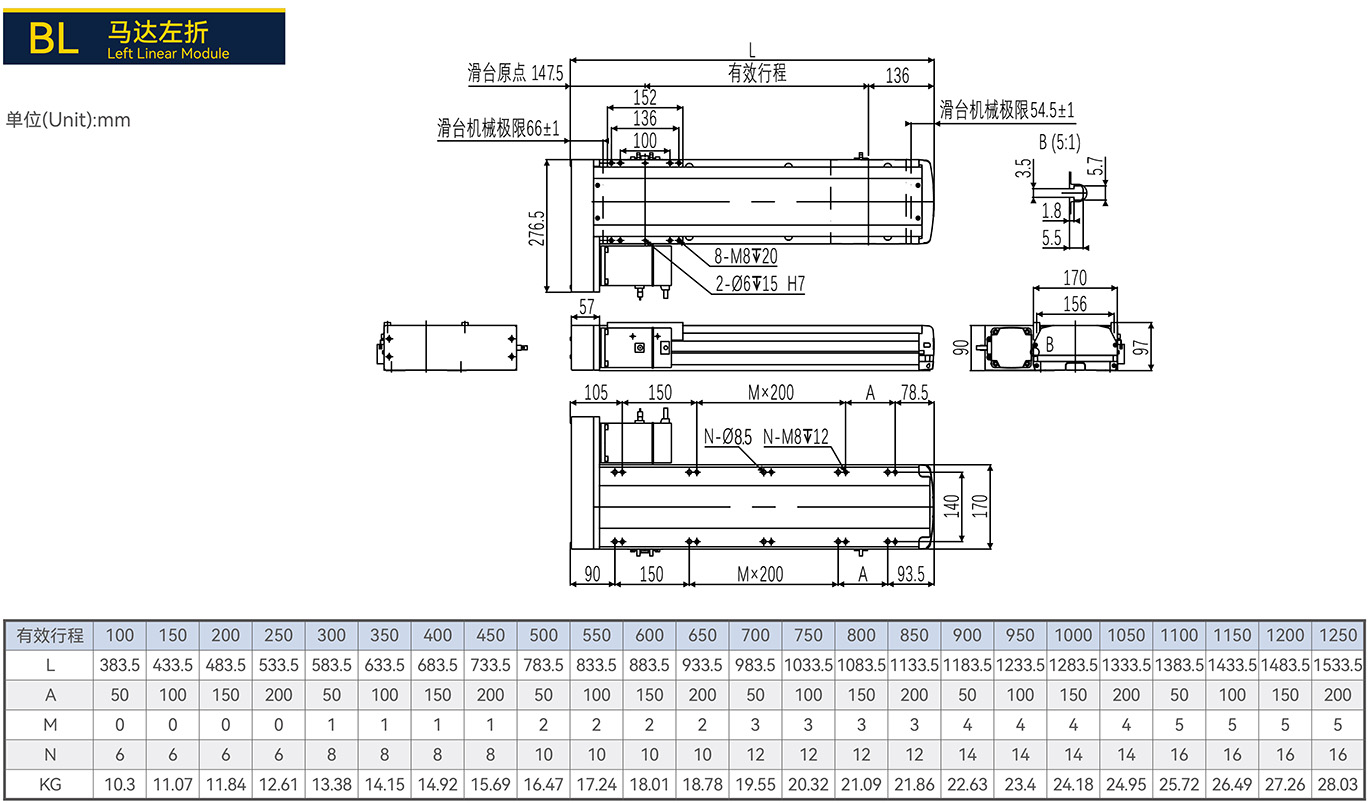

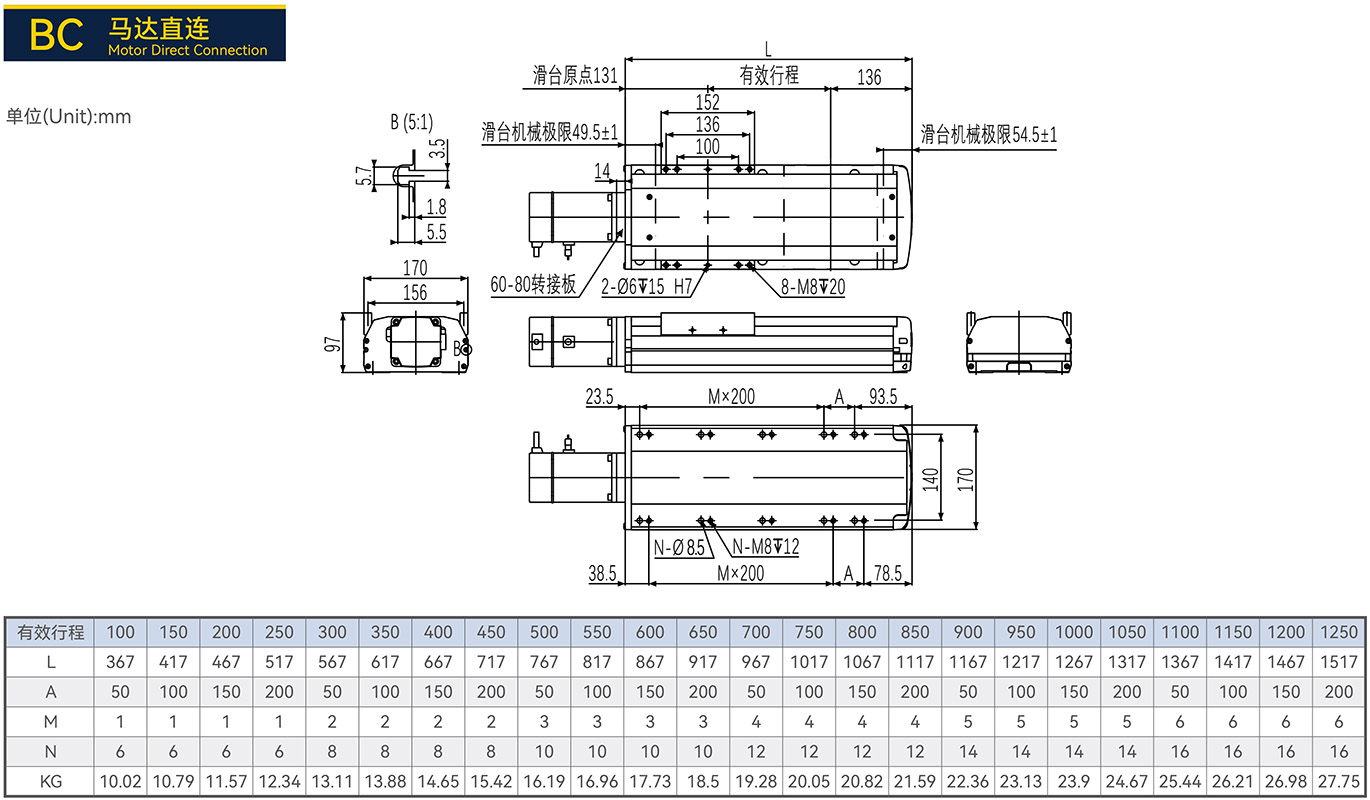

  • Motor Connection MethodBC Direct Motor ConnectionBC Direct Motor ConnectionBL Motor Left BendBL Motor Left BendBM Motor Down BendBM Motor Down BendBR Motor Right BendBR Motor Right Bend
  • Linear Guide Model20×15-2pcs
  • Body Size Reference Width:170mm， Height:97mm

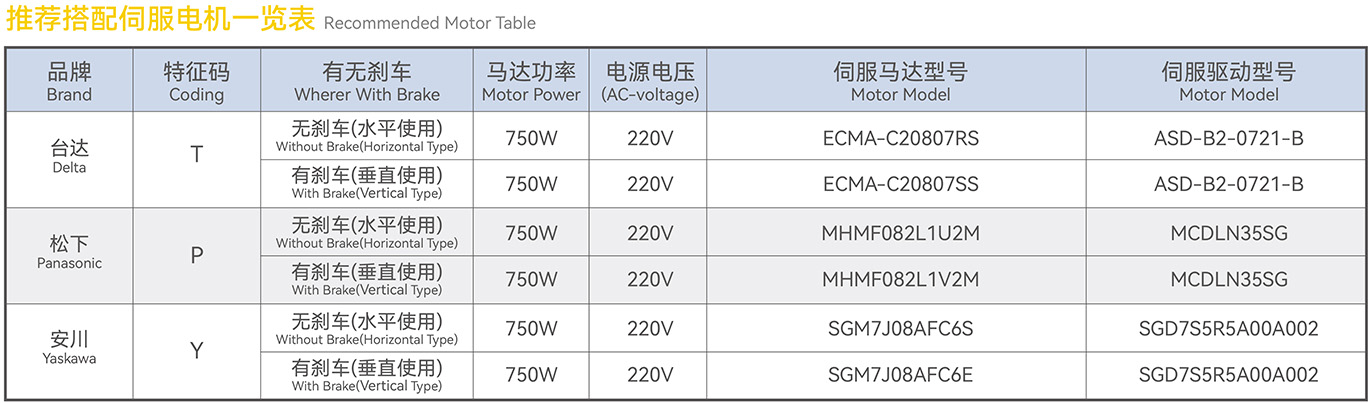

  • Drive Specification750W/3000r·min/2.39N·m
  • Standard Stroke100~1250mm(Interval 50mm)
Inquire This Product
Go to Official Flagship Store to Buy

Product Data Download

Product Description

Product Features

Larger semi-enclosed linear modules;

PSS170 Series, ball screw type slide modulePSS170 Series, ball screw type slide modulePSS170 Series, ball screw type slide modulePSS170 Series, ball screw type slide modulePSS170 Series, ball screw type slide modulePSS170 Series, ball screw type slide modulePSS170 Series, ball screw type slide modulePSS170 Series, ball screw type slide modulePSS170 Series, ball screw type slide module
