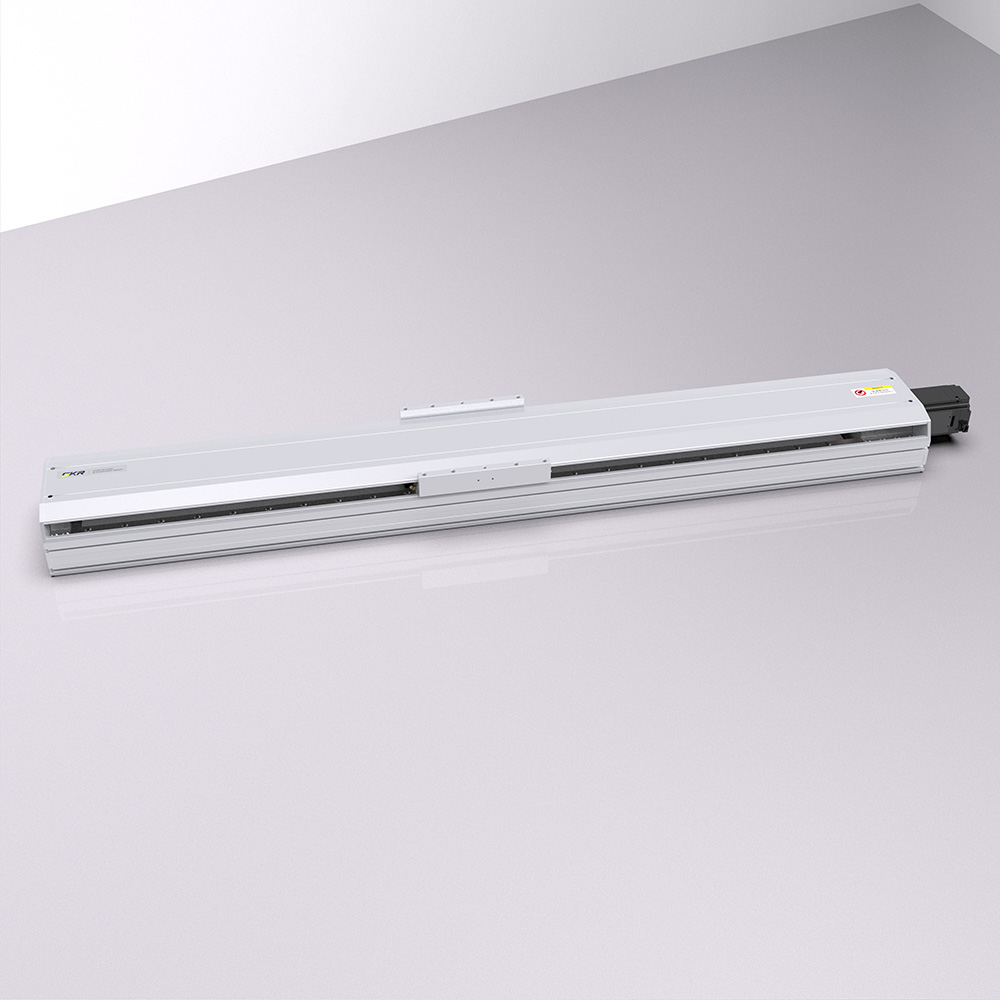

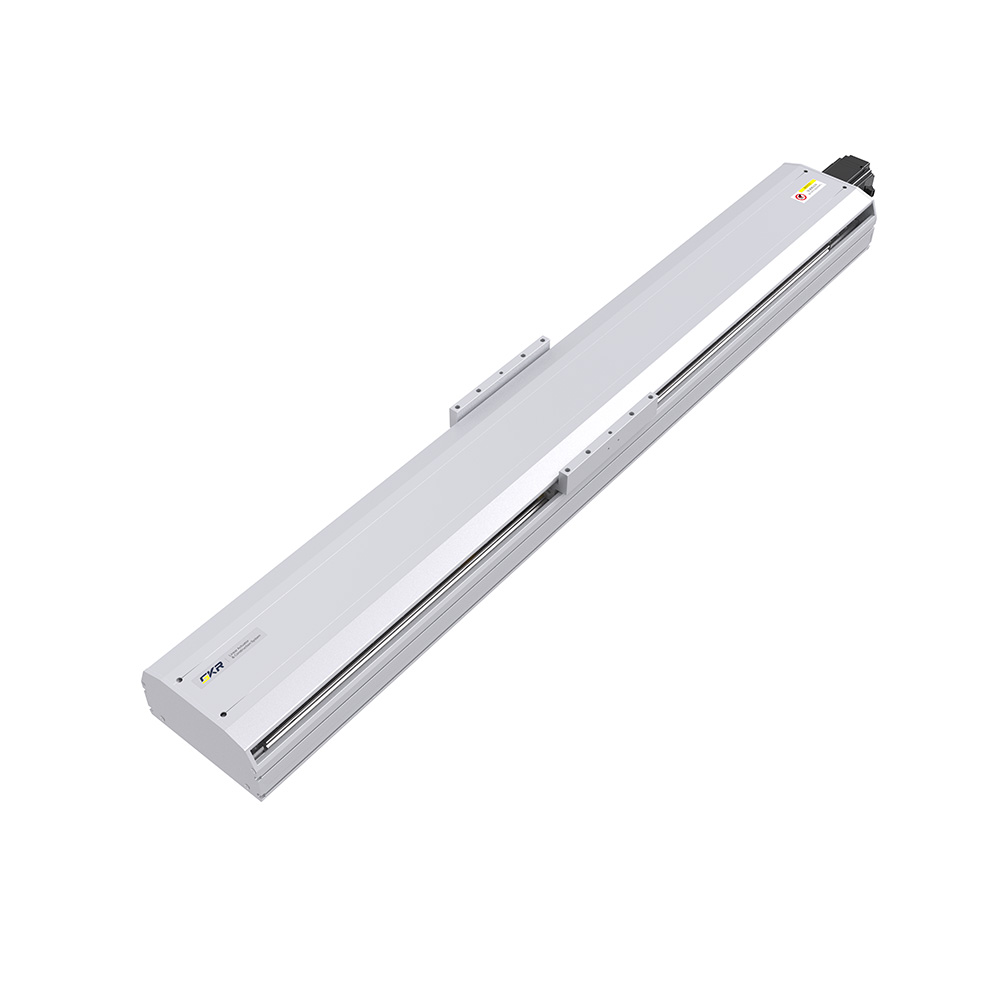

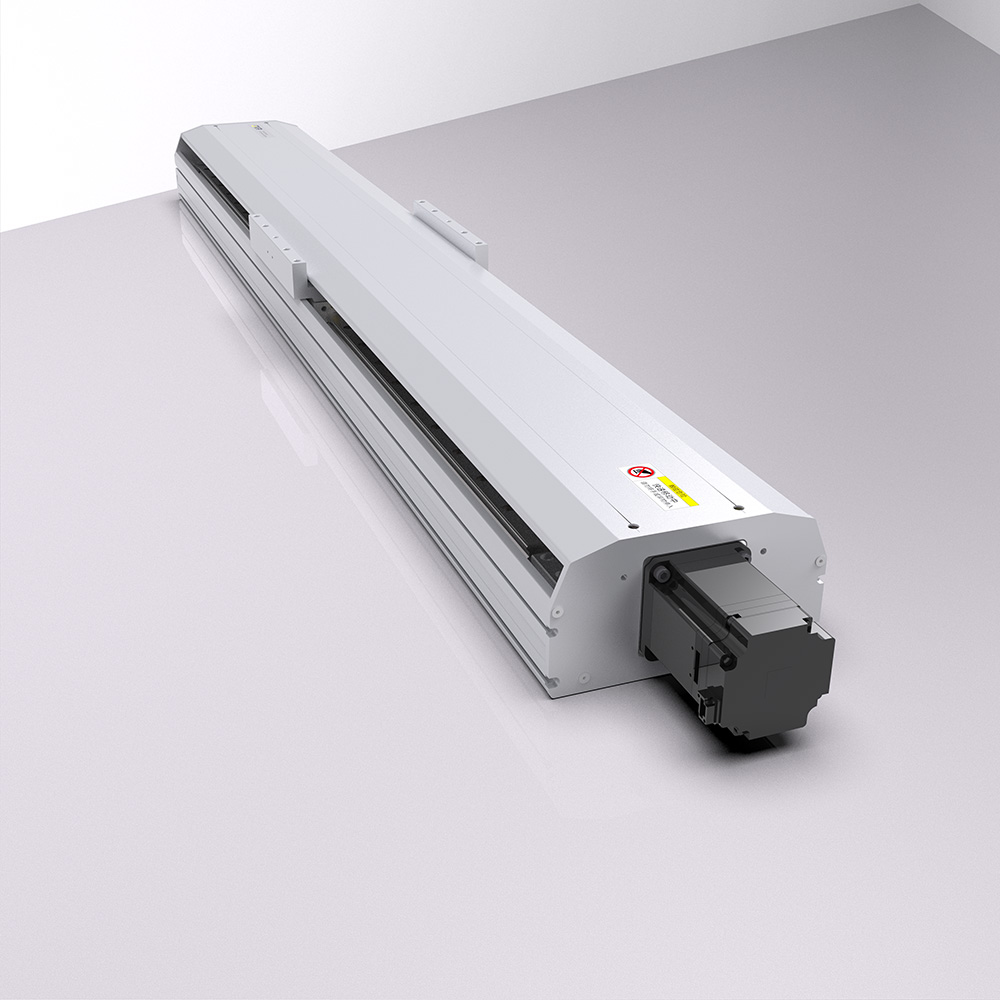

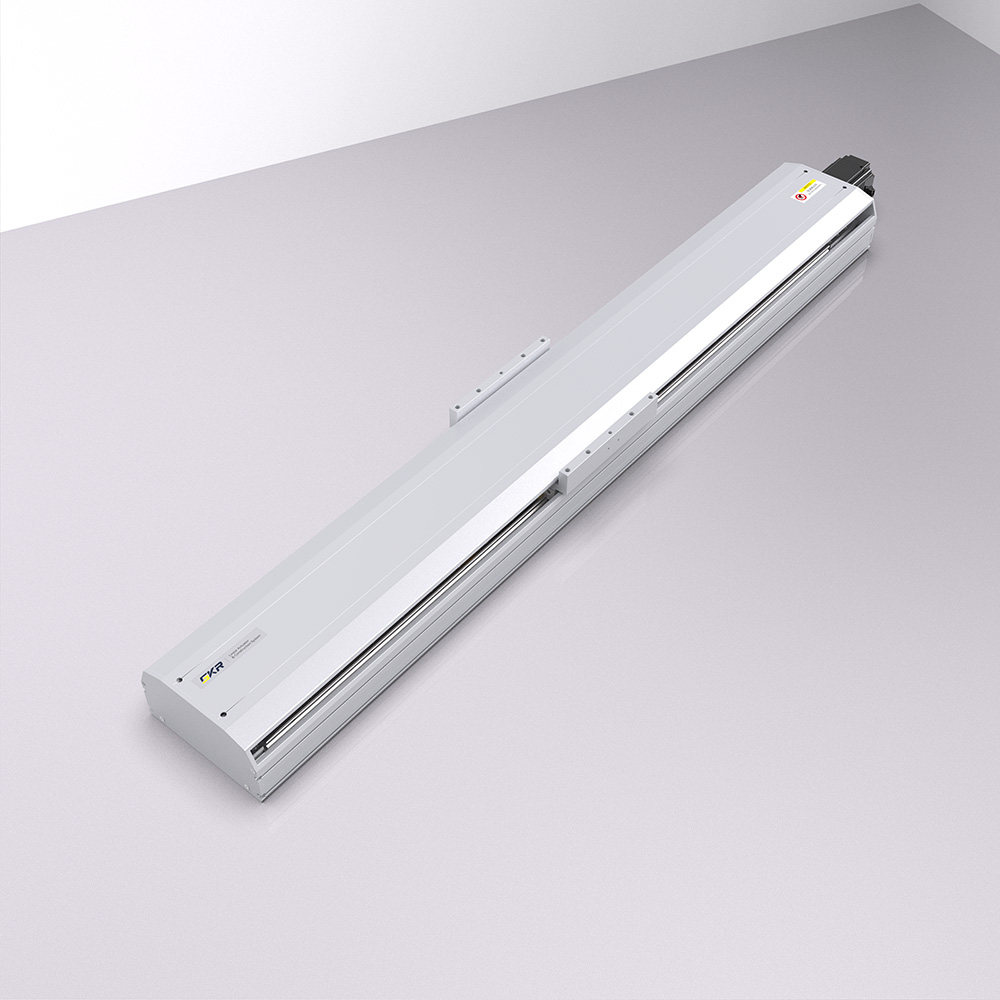

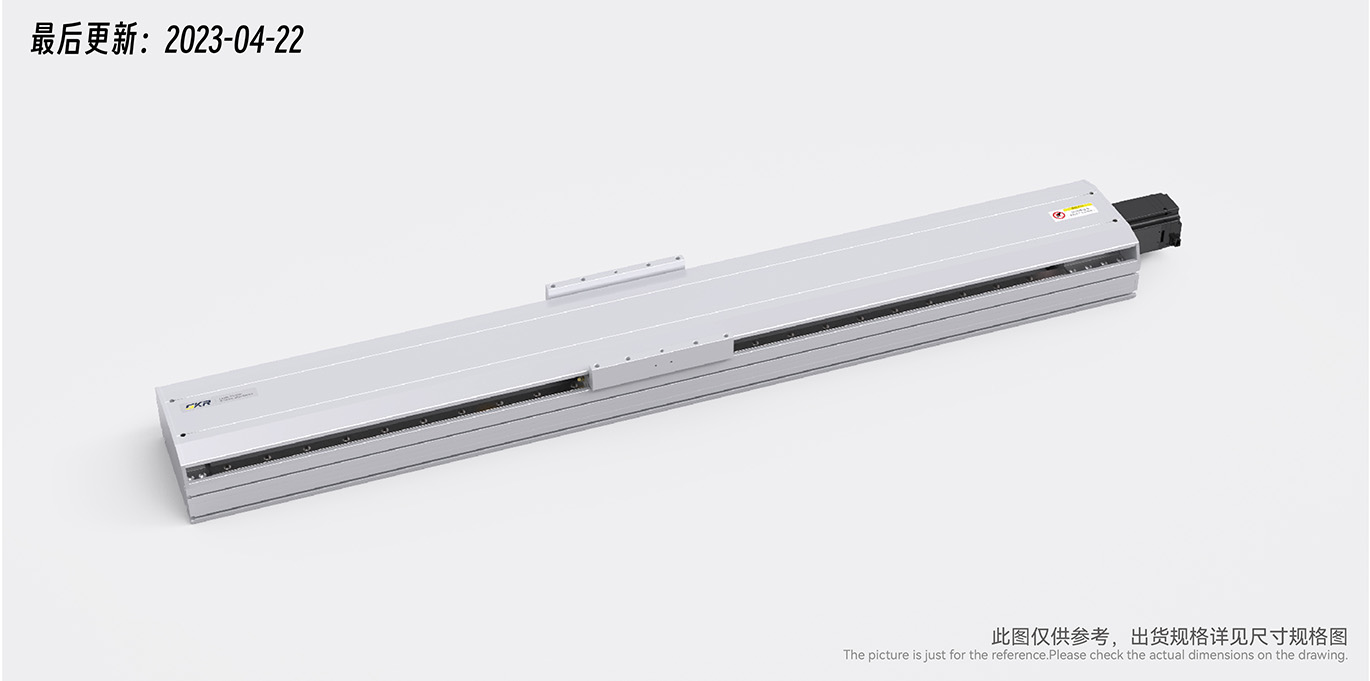

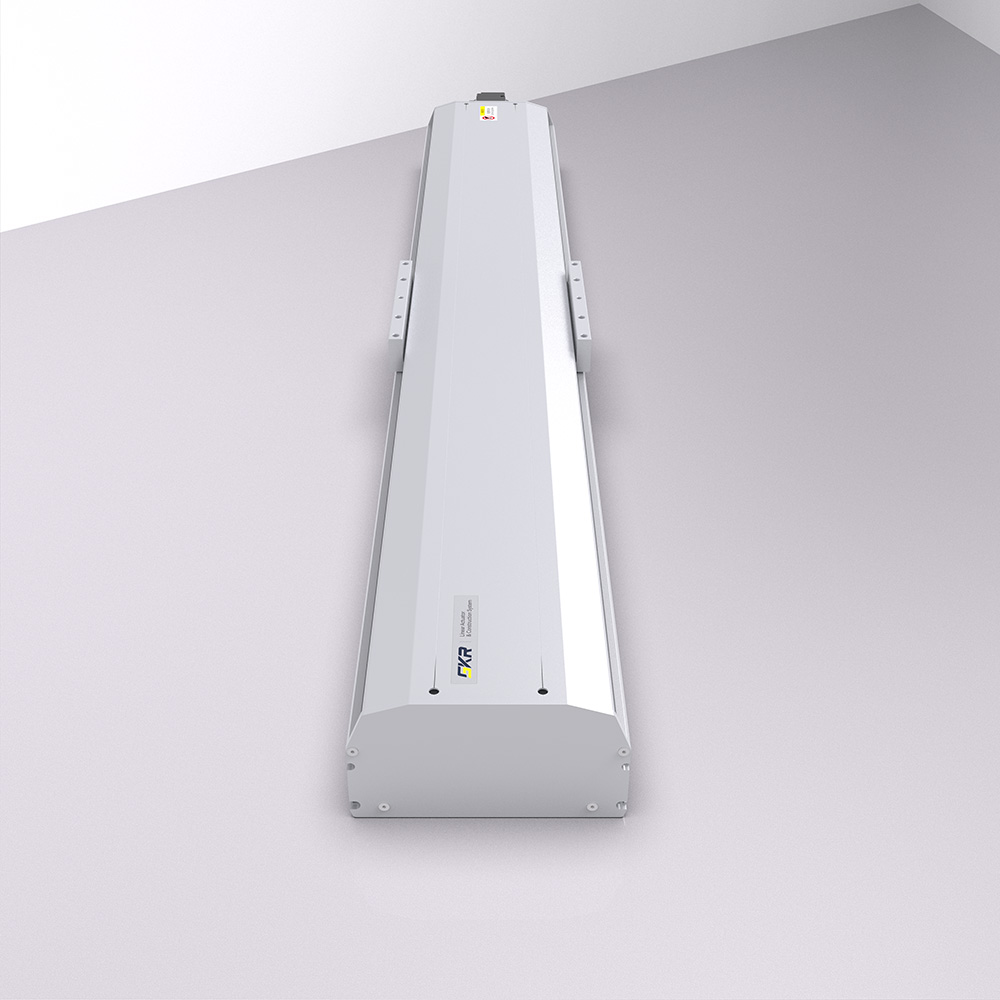

〔SKR〕Linear Module
PSS220 Series, ball screw type slide module

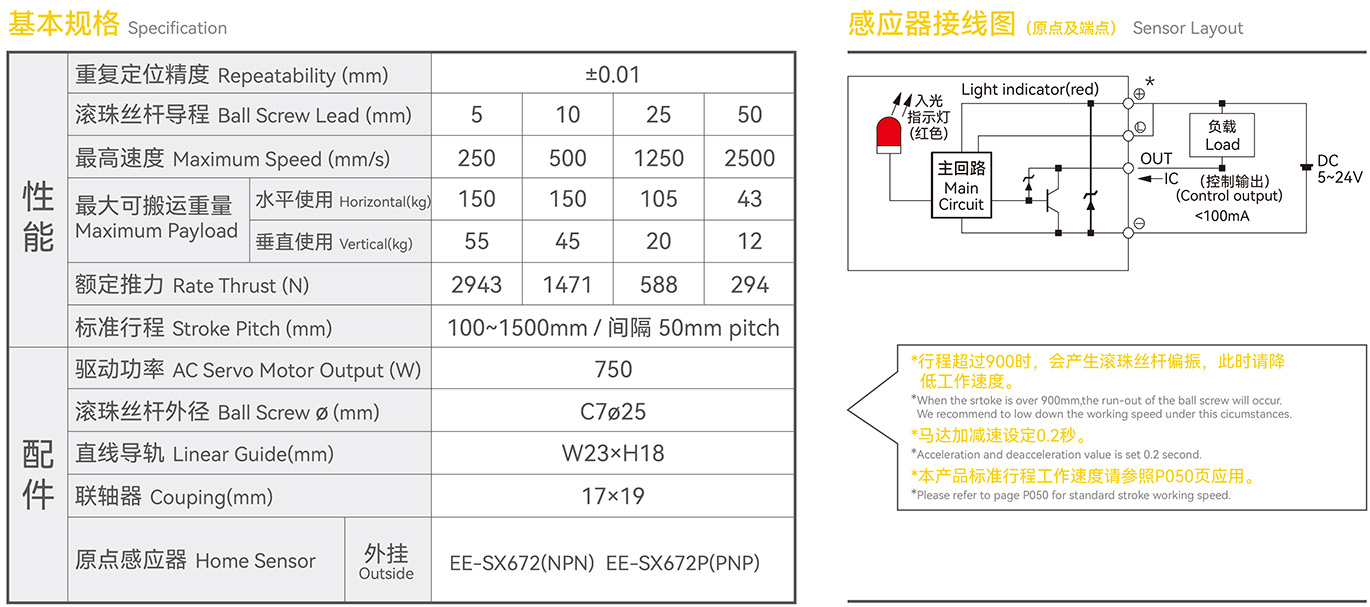

Up to large semi-enclosed linear modules;The width is 220mm;- Repeatability±0.01mm
- Ball Screw øC7ø25
- Ball Screw Lead5mm/10mm/25mm/50mm
- Horizontal Handling Weight150kg/150kg/105kg/43kg
- Vertical Handling Weight55kg/45kg/20kg/12kg

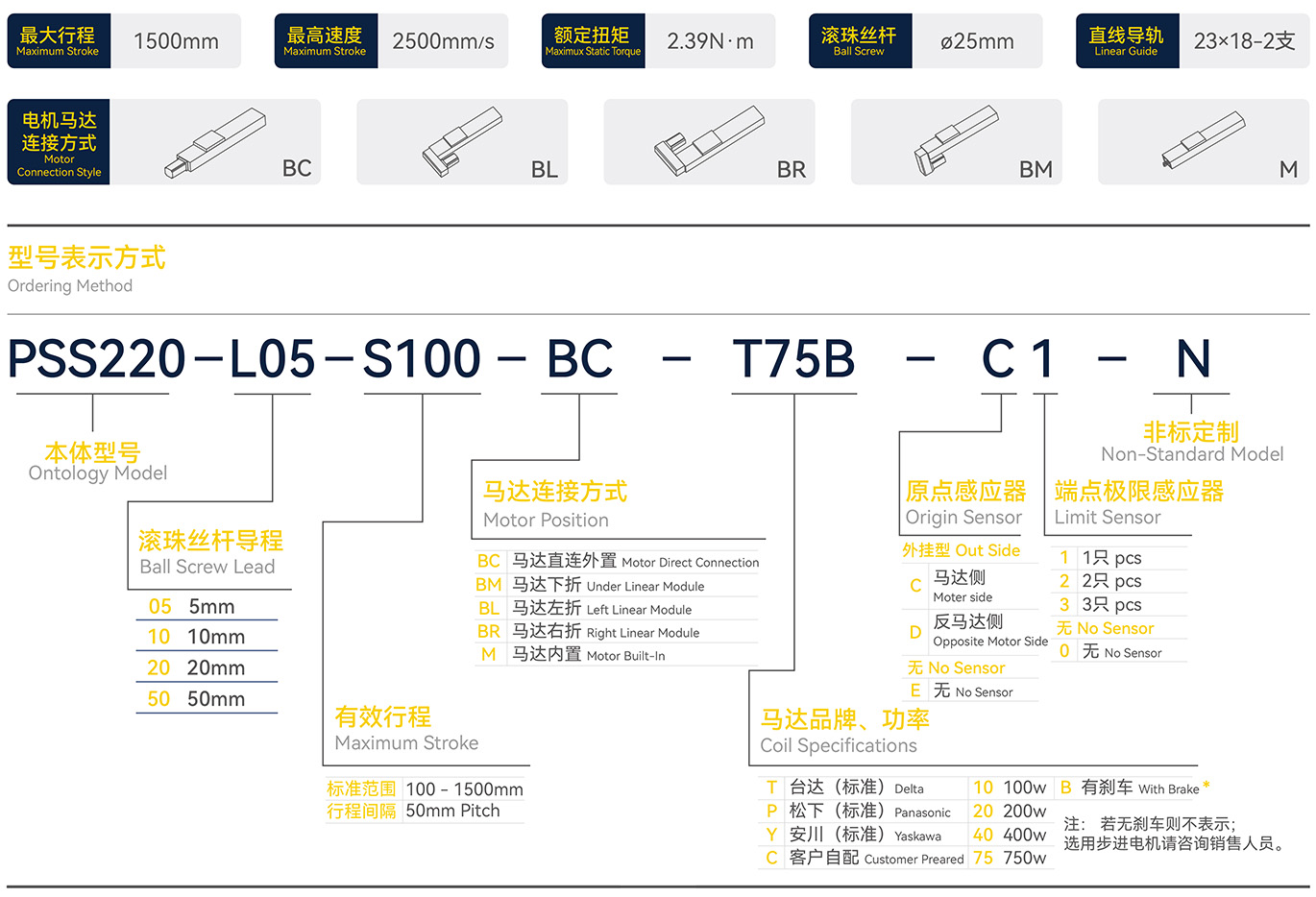

- Motor Connection Method

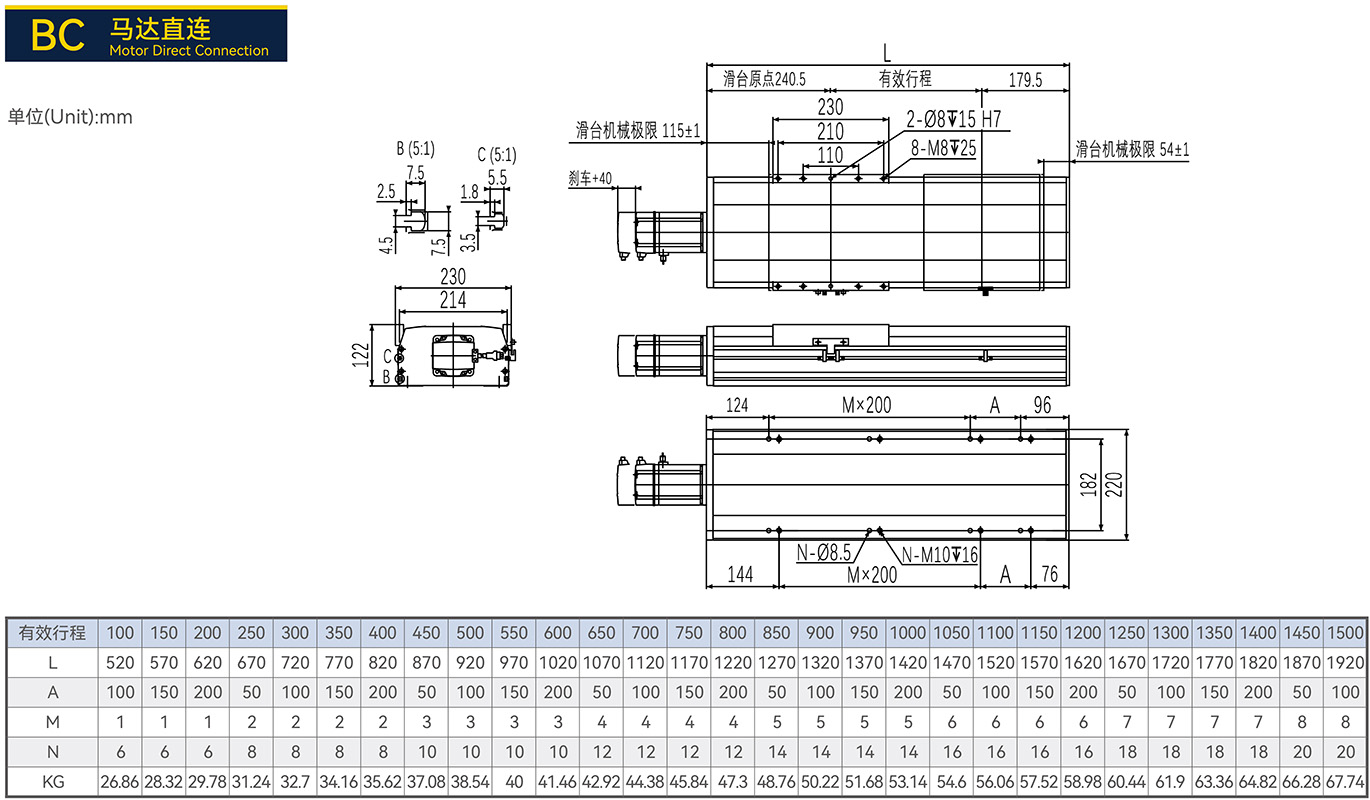

BC Direct Motor Connection

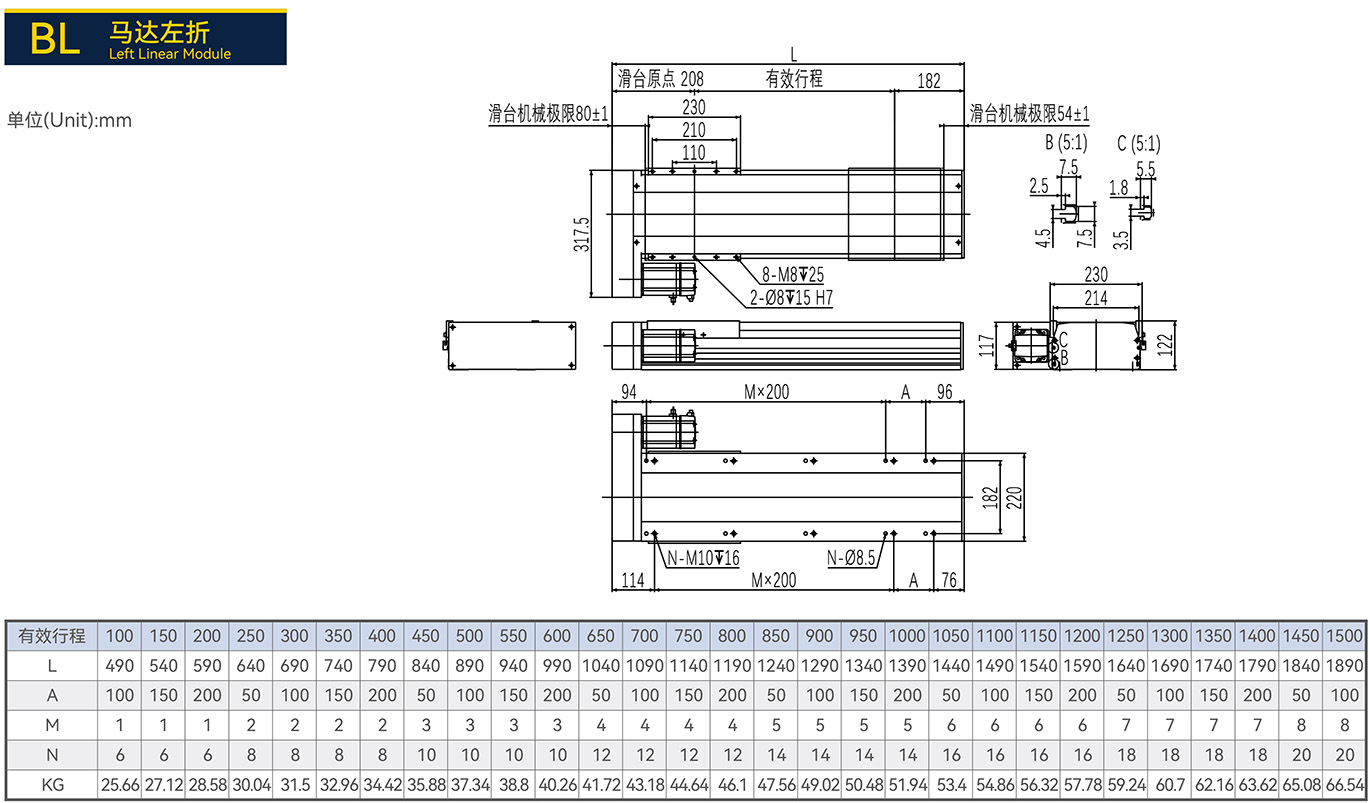

BL Motor Left Bend

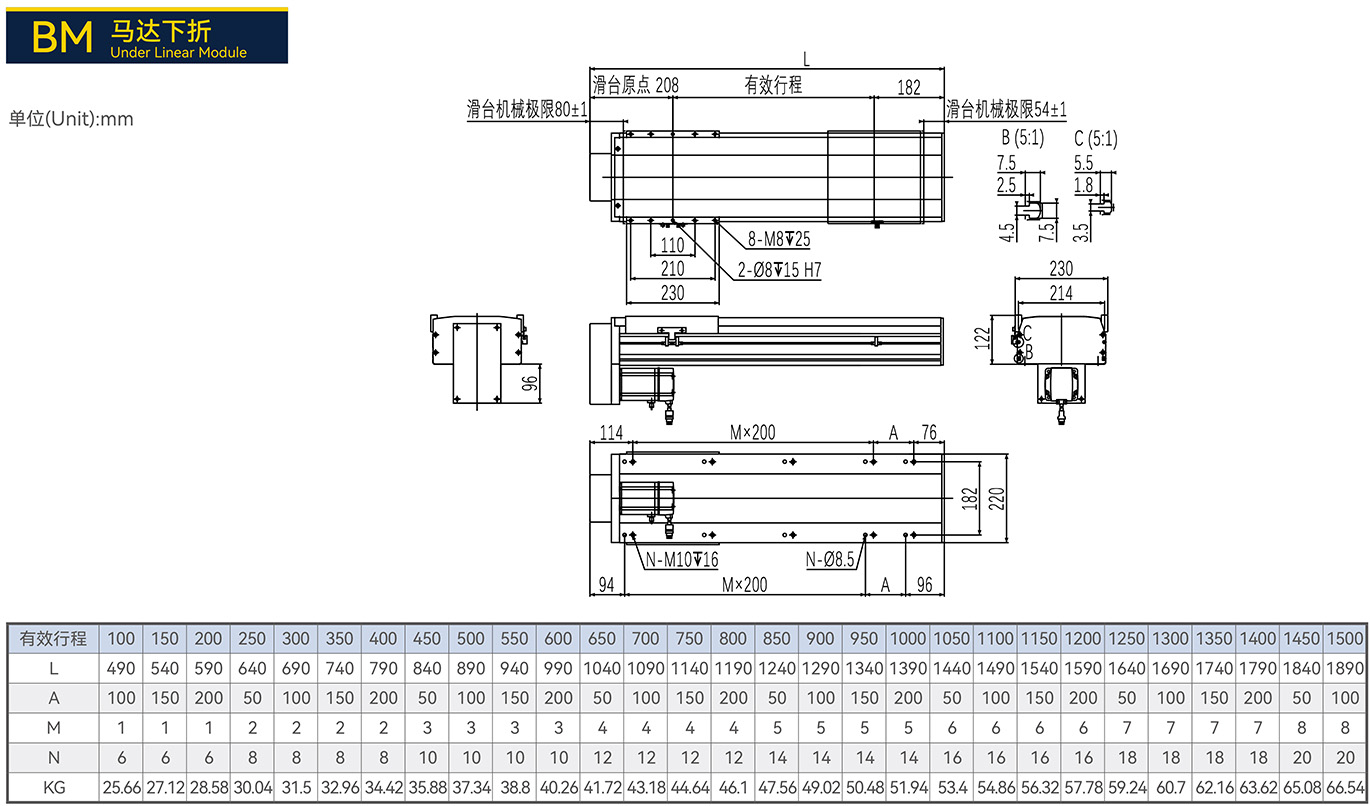

BM Motor Down Bend

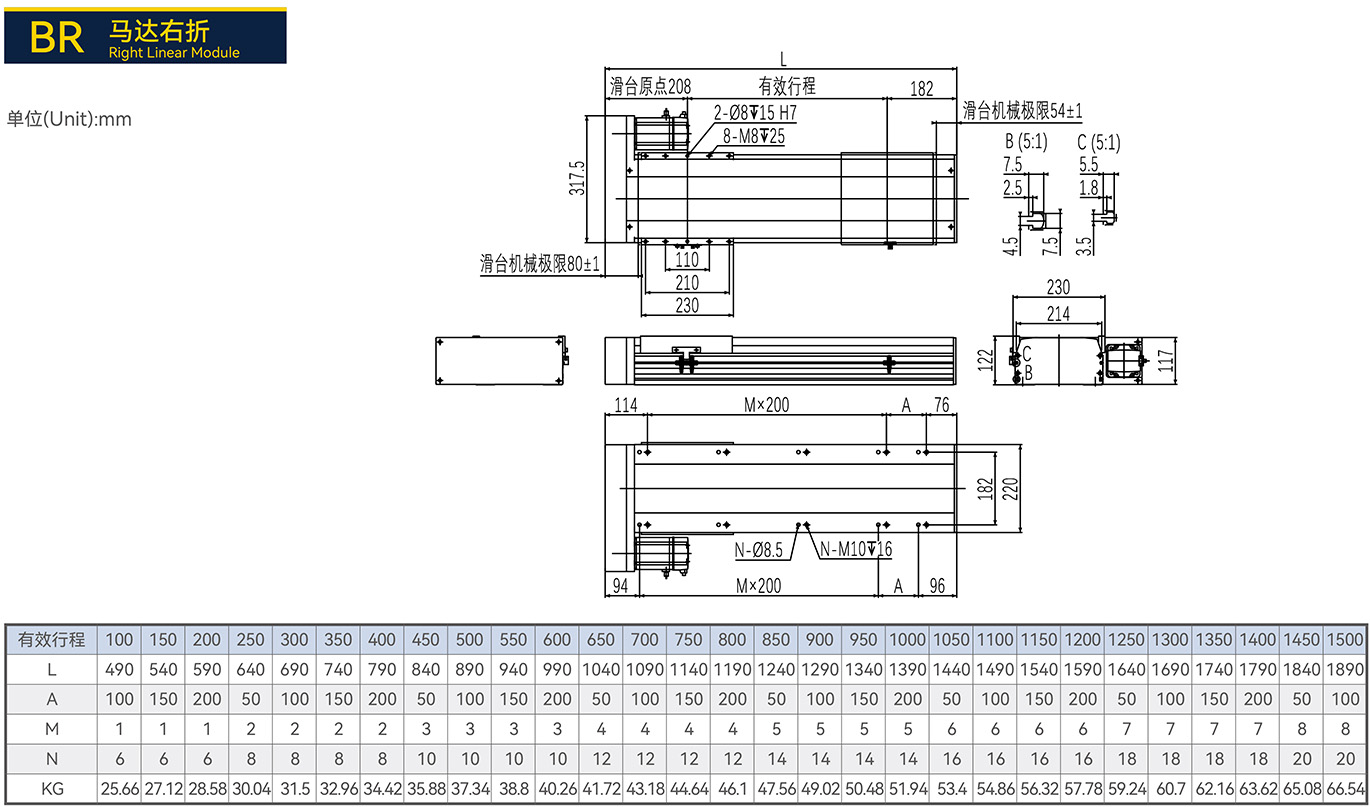

BR Motor Right Bend

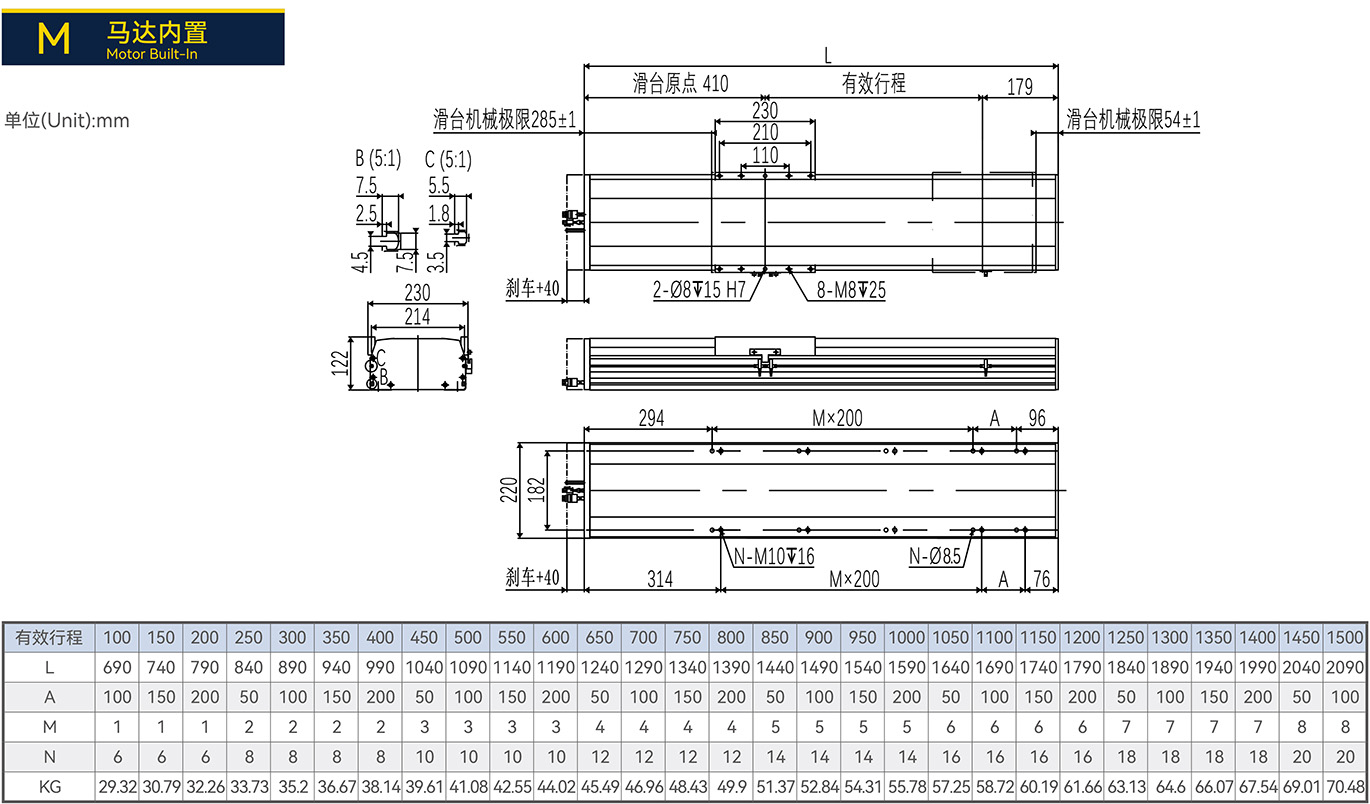

M电机内置 - Linear Guide Model23×18-2pcs
- Body Size Reference Width:220mm， Height:122mm

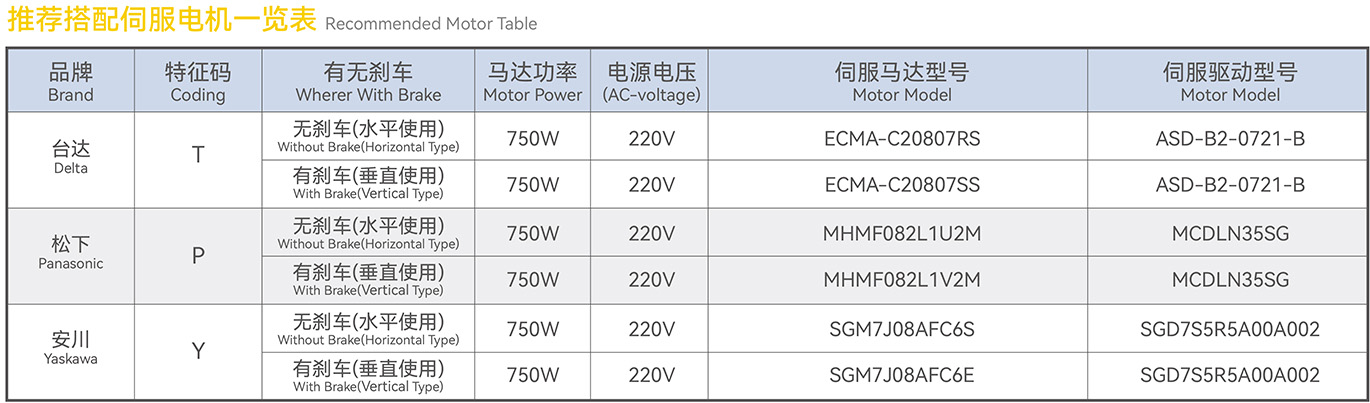

- Drive Specification750W/3000r·min/2.39N·m
- Standard Stroke100~1500mm(Interval 50mm)
Product Data Download
