〔SKR〕Linear Module
PSS140 Series, ball screw type slide module

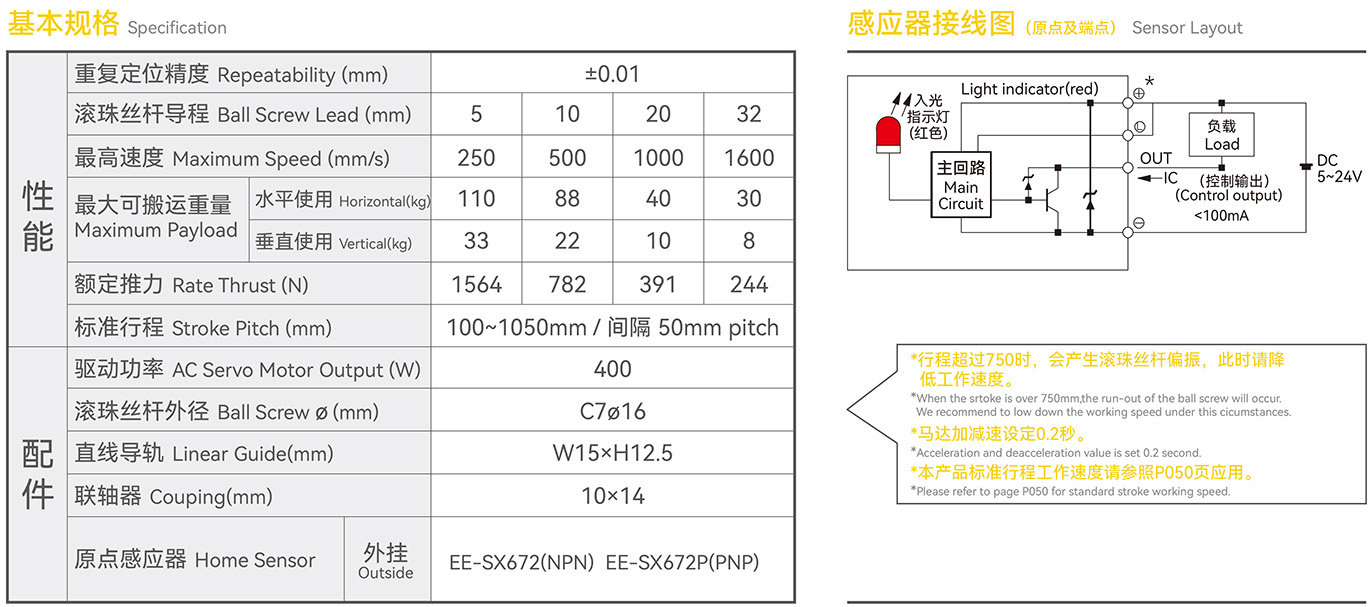

Medium-sized PSS products. The width is 135mm;- Repeatability±0.01mm
- Ball Screw øC7ø16
- Ball Screw Lead5mm/10mm/20mm/32mm

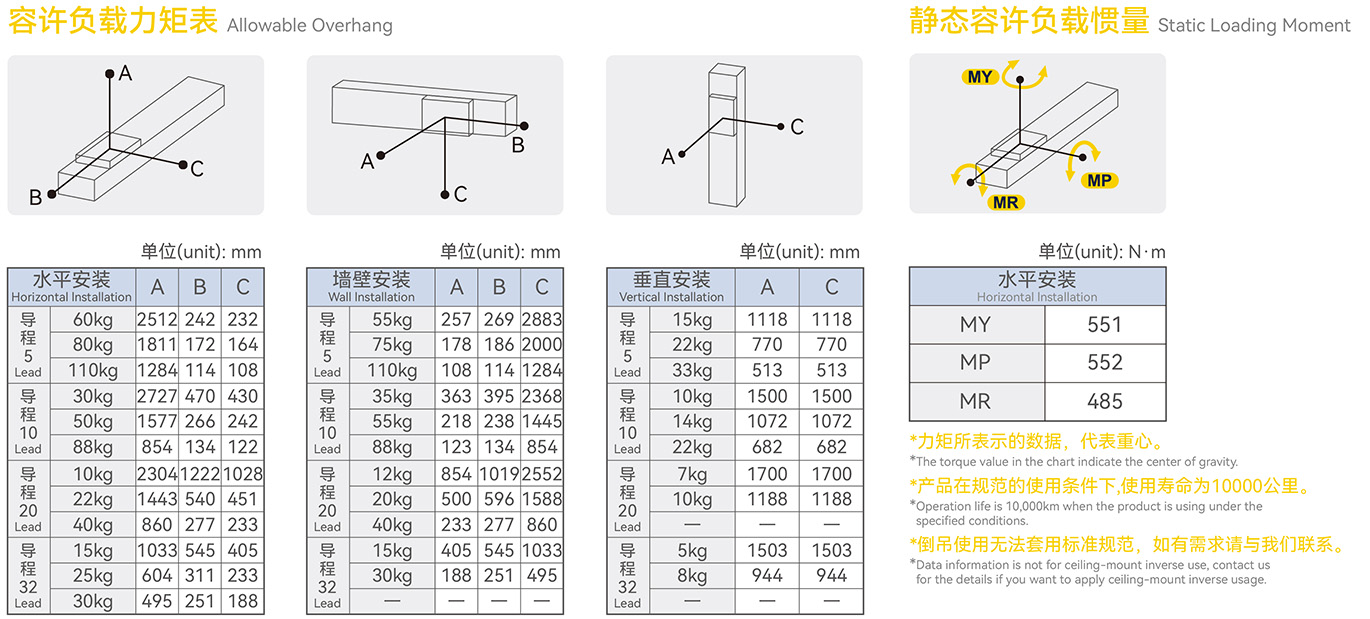

- Horizontal Handling Weight110kg/88kg/40kg/30kg
- Vertical Handling Weight33kg/22kg/10kg/8kg

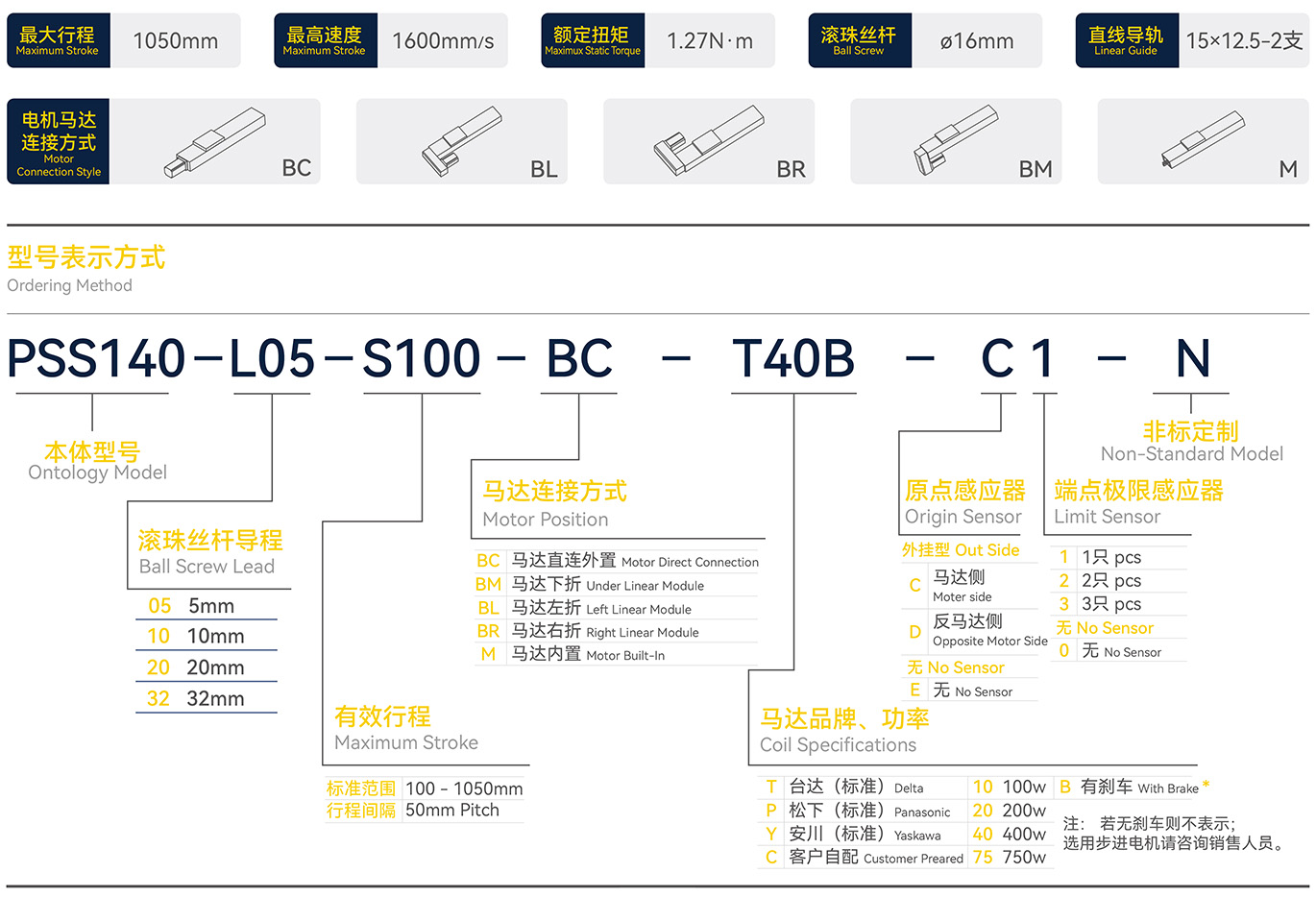

- Motor Connection Method
BC Direct Motor Connection
BL Motor Left Bend

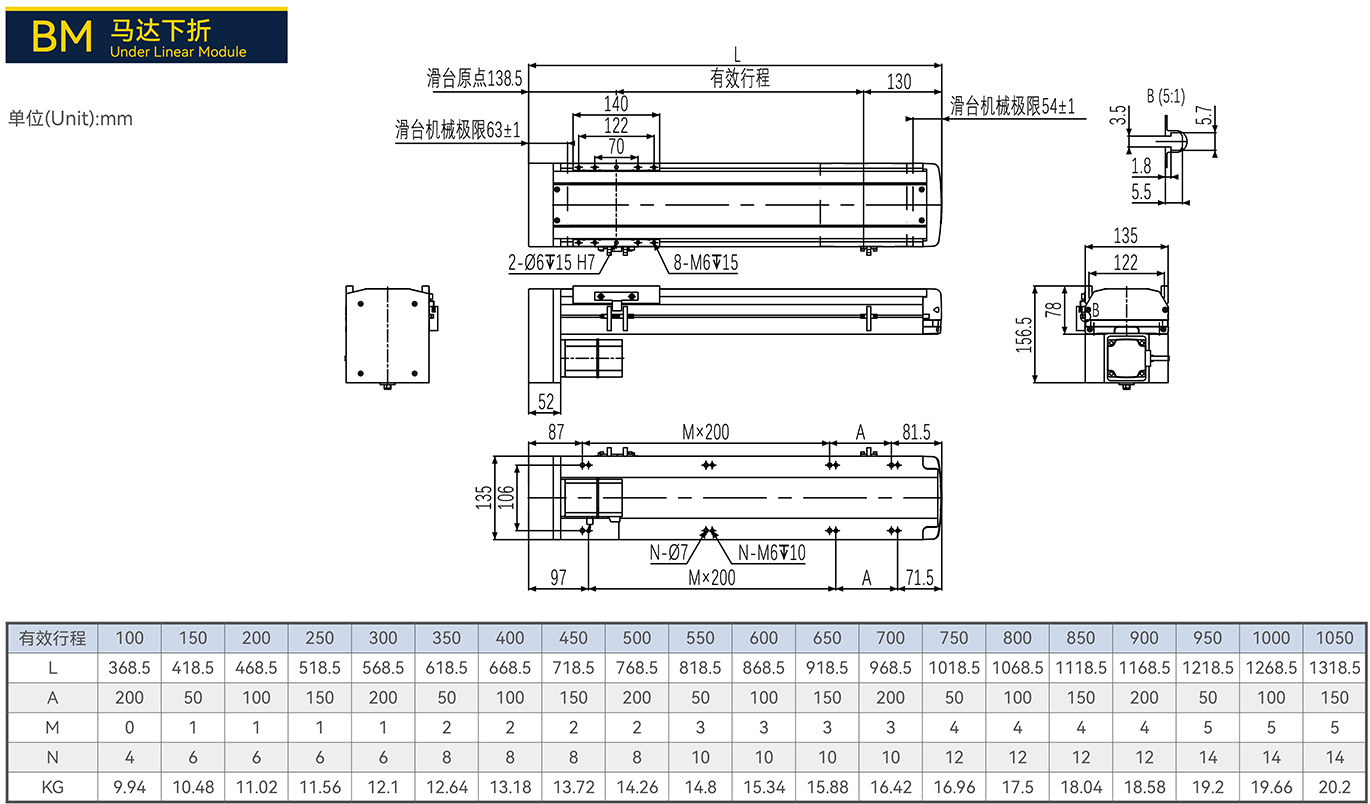

BM Motor Down Bend
BR Motor Right Bend

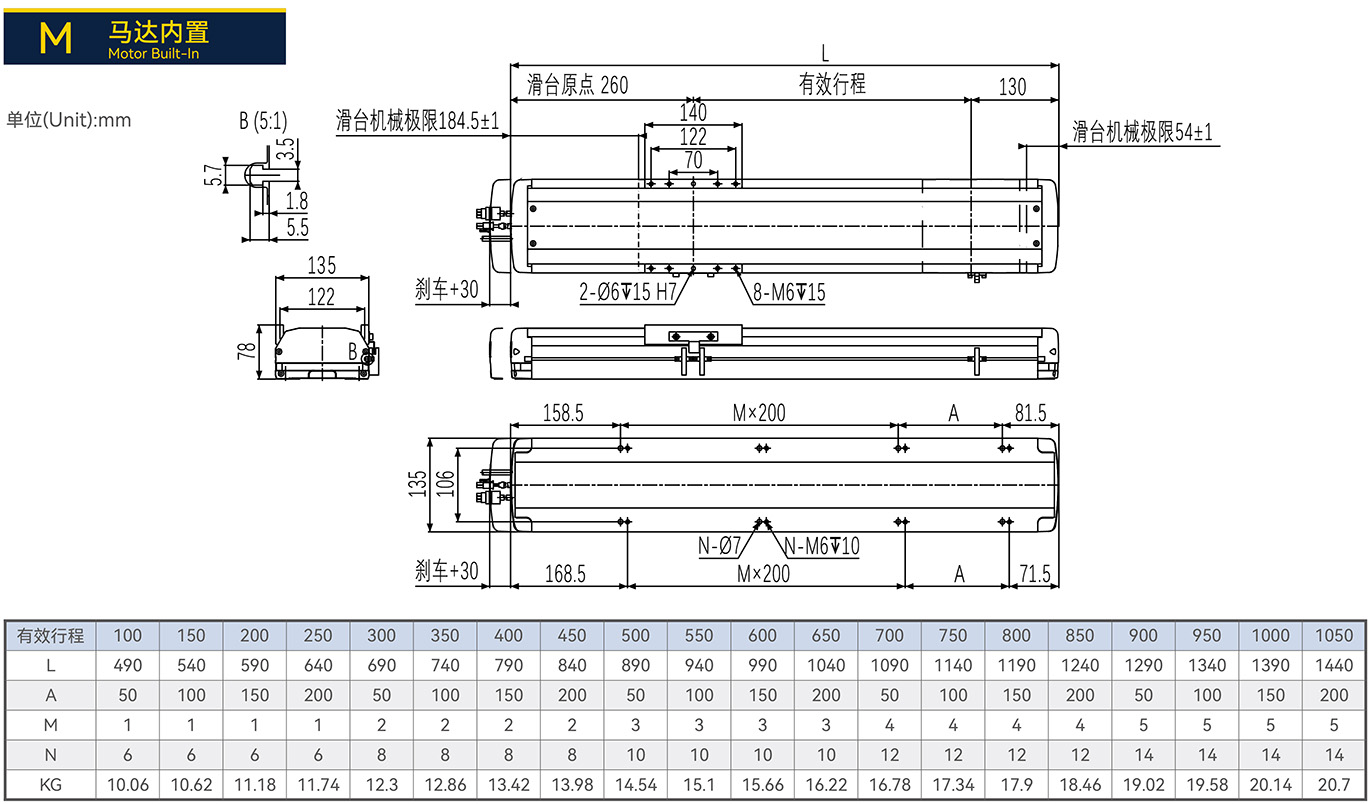

M电机内置 - Linear Guide Model15×12.5-2pcs
- Body Size Reference Width:135mm， Height:78mm

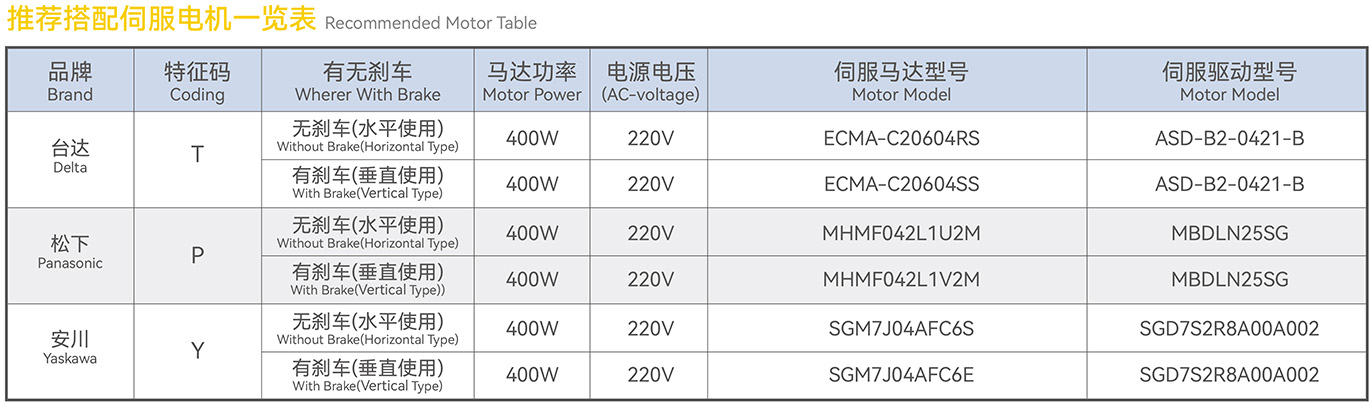

- Drive Specification400W/3000r·min/1.27N·m
- Standard Stroke100~1050mm(Interval 50mm)
Product Data Download
Product Description
