〔SKR〕Linear Module

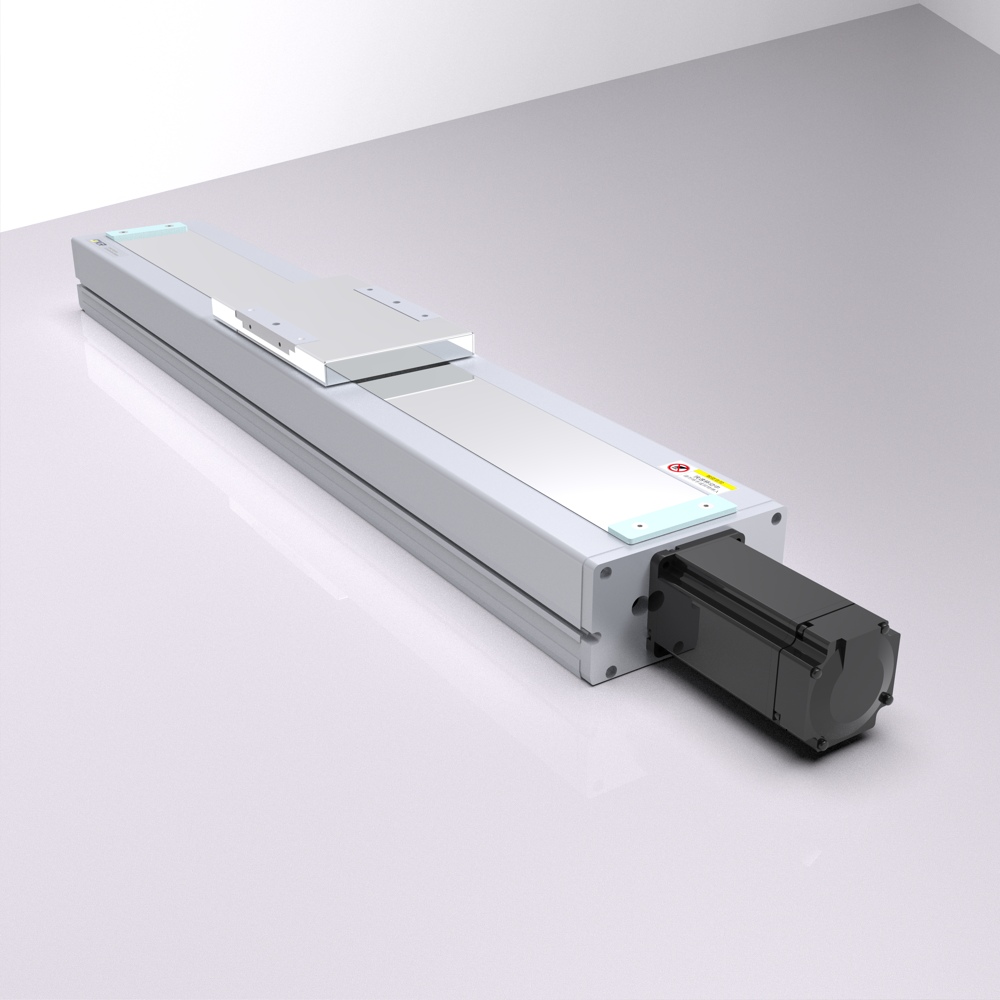

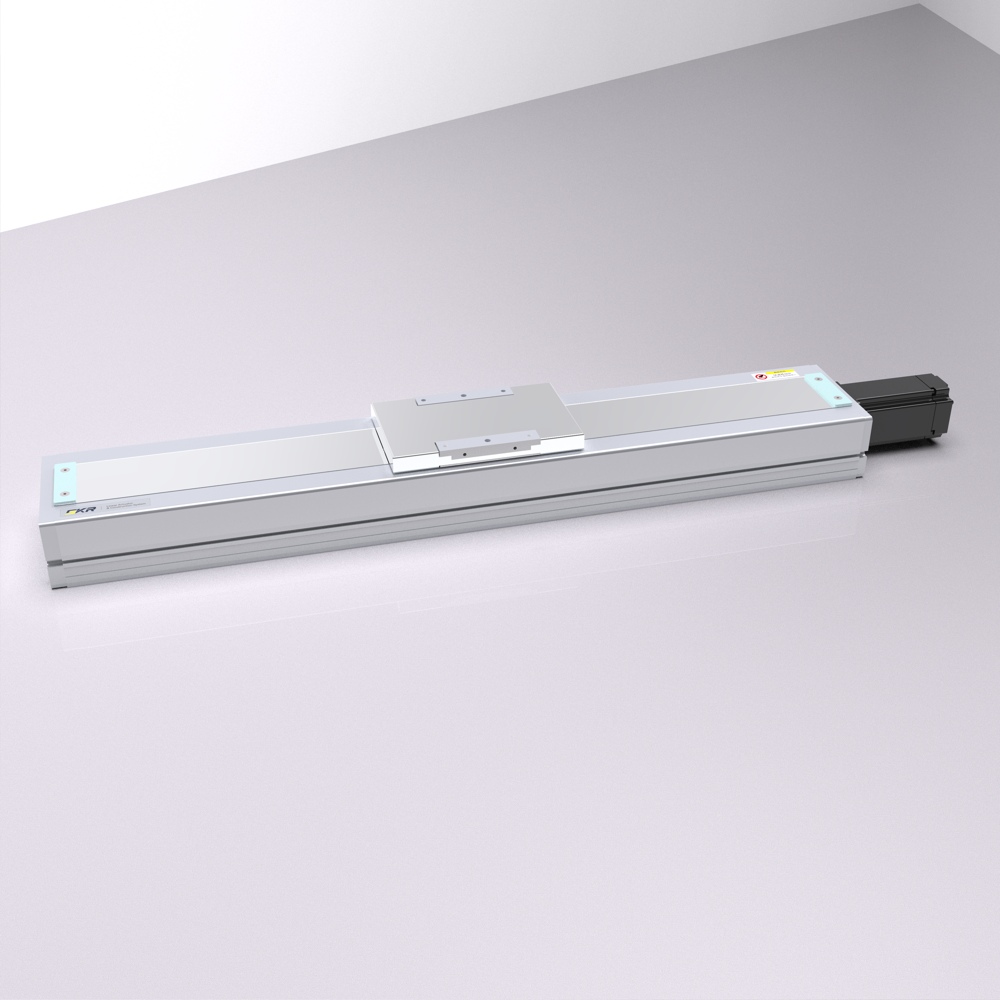

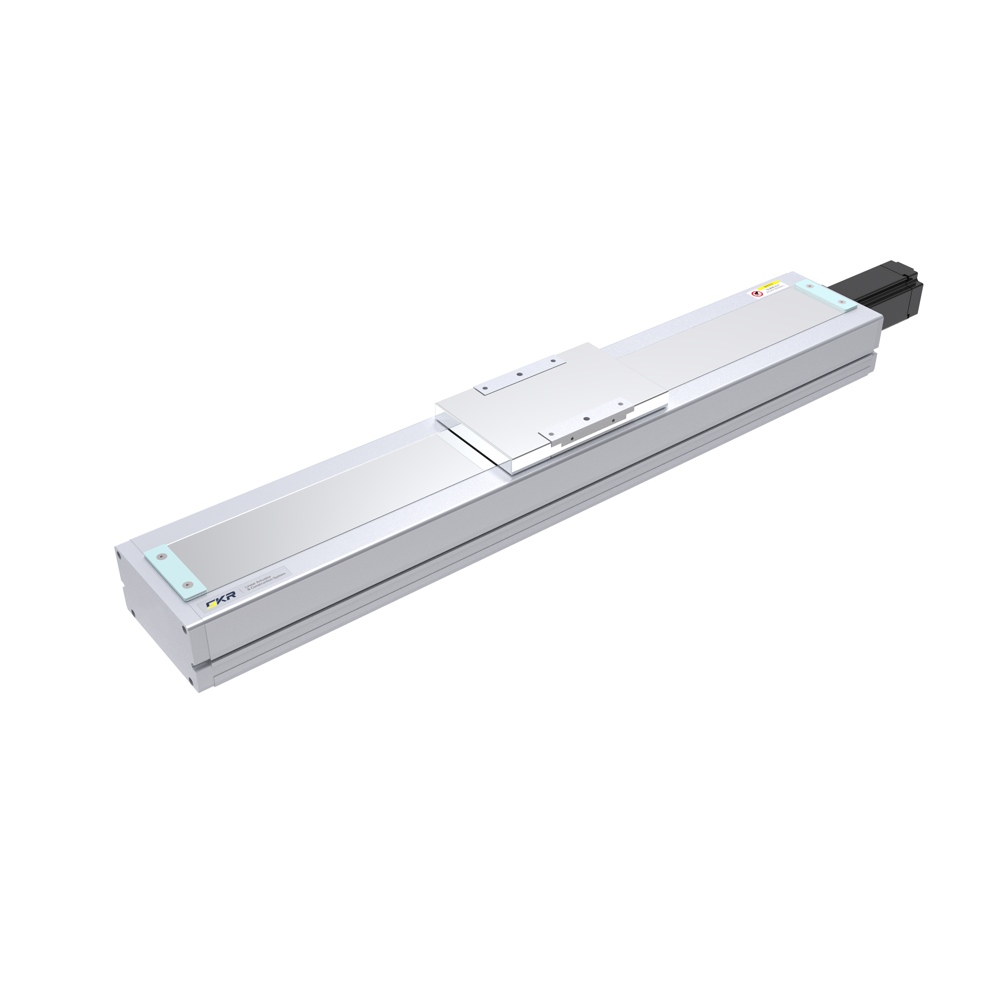

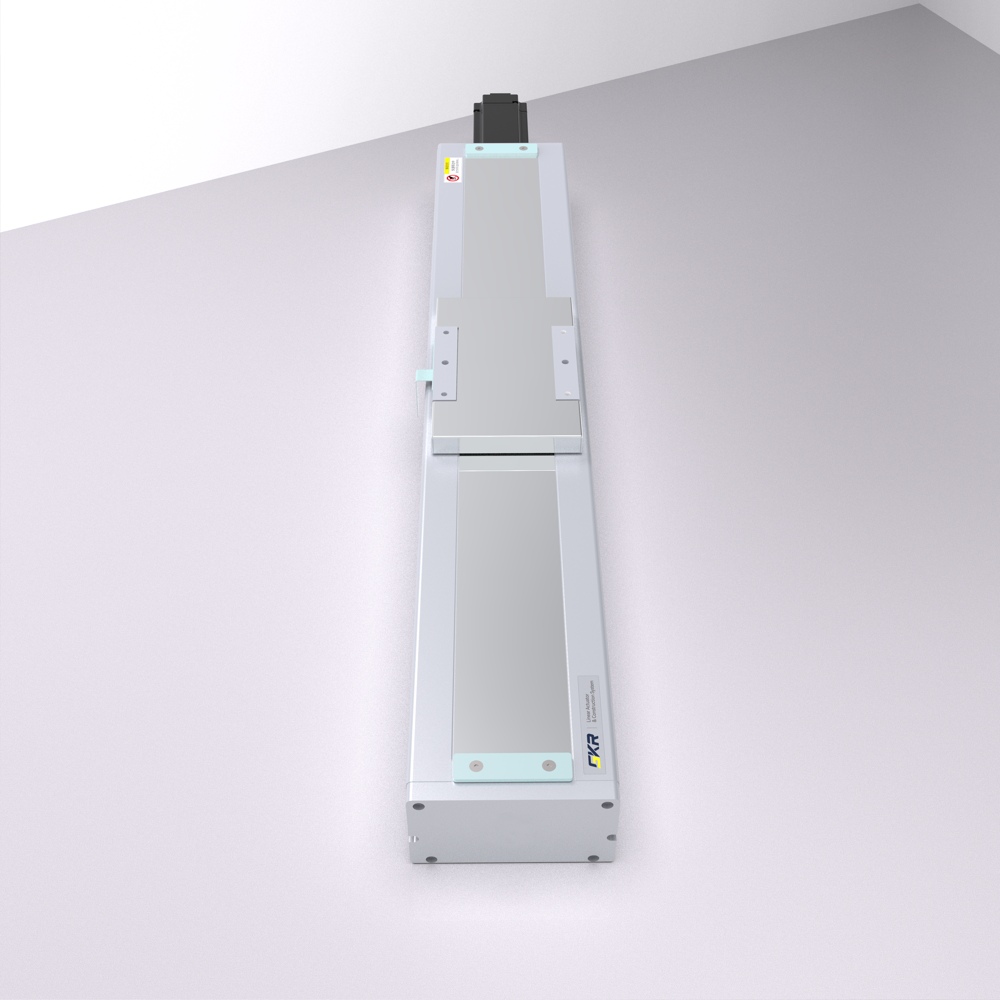

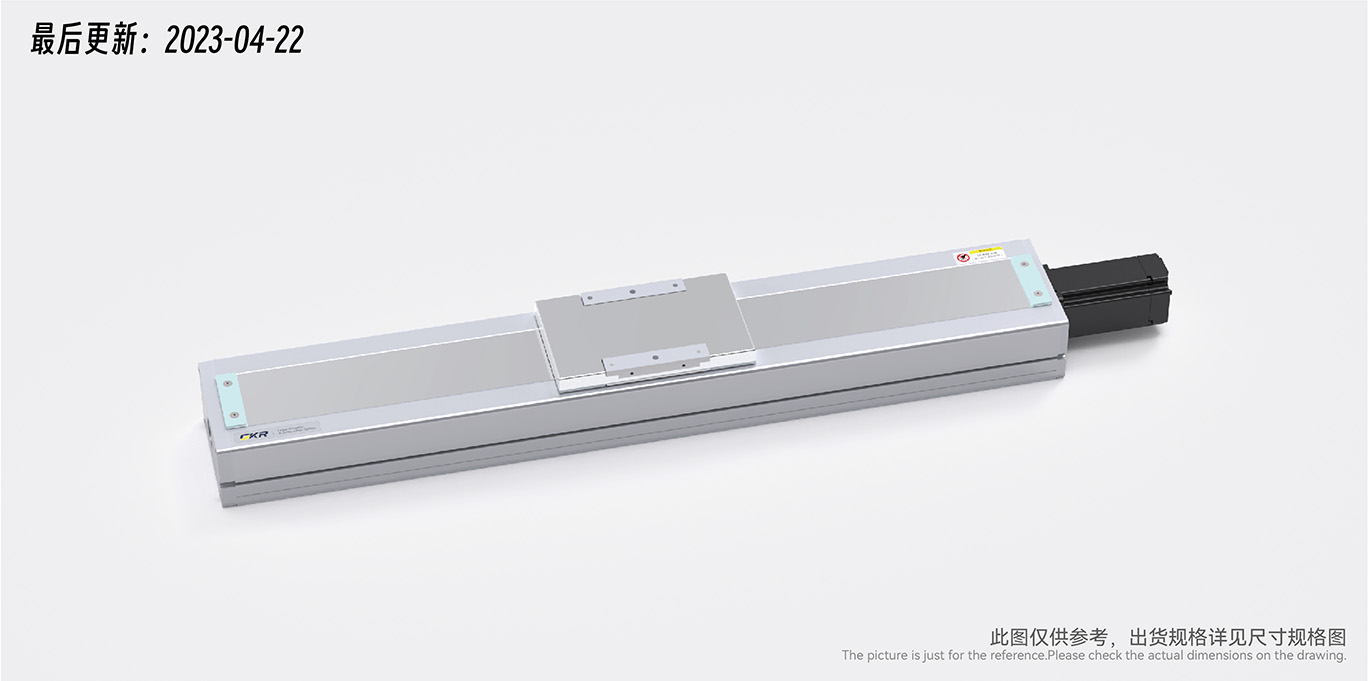

PSC140 Series, fully enclosed slide module

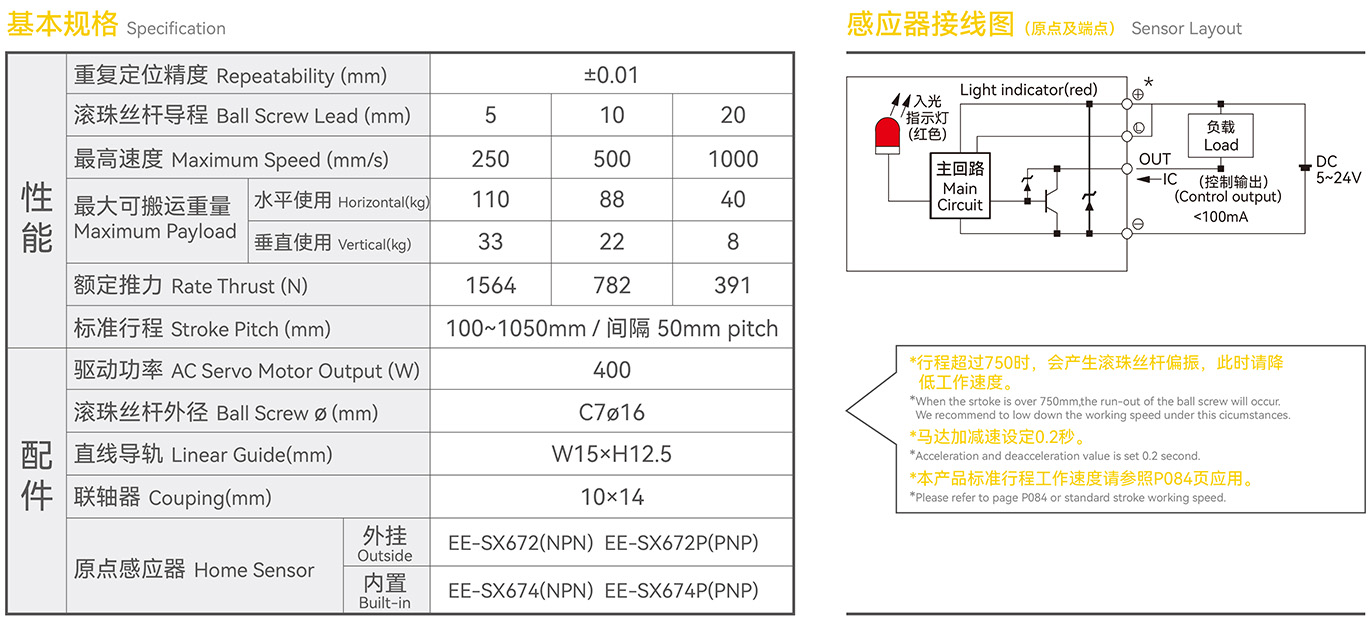

Medium-sized dust-free series products;- Repeatability±0.01mm
- Ball Screw øC7ø16
- Ball Screw Lead5mm/10mm/20mm
- Horizontal Handling Weight110kg/88kg/40kg
- Vertical Handling Weight33kg/22kg/8kg
- Linear Guide Model15×12.5-2pcs
- Body Size Reference Width:135mm， Height:91mm

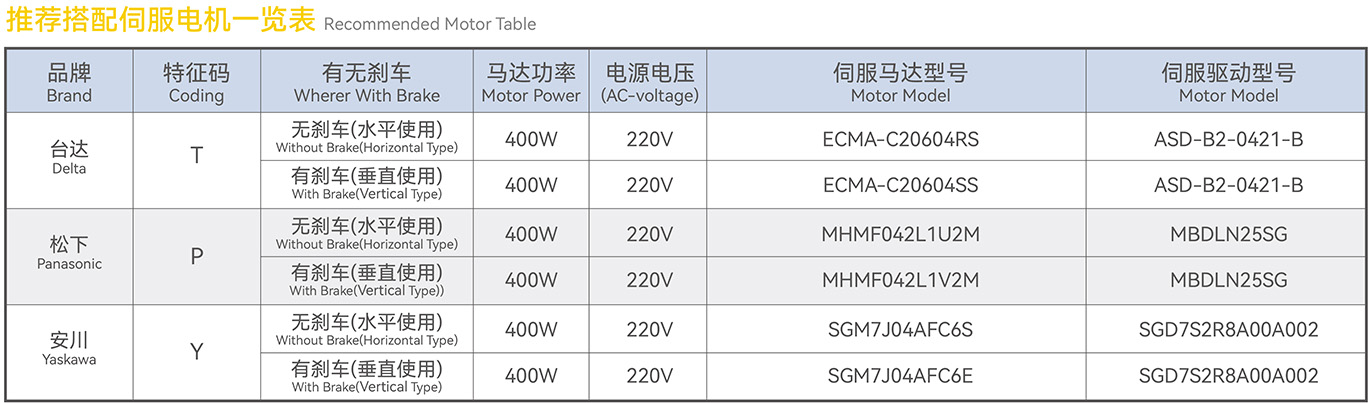

- Drive Specification400W/3000r·min/1.27N·m
- Standard Stroke100~1050mm(Interval 50mm)
Product Data Download
Product Description
