〔SKR〕Linear Module

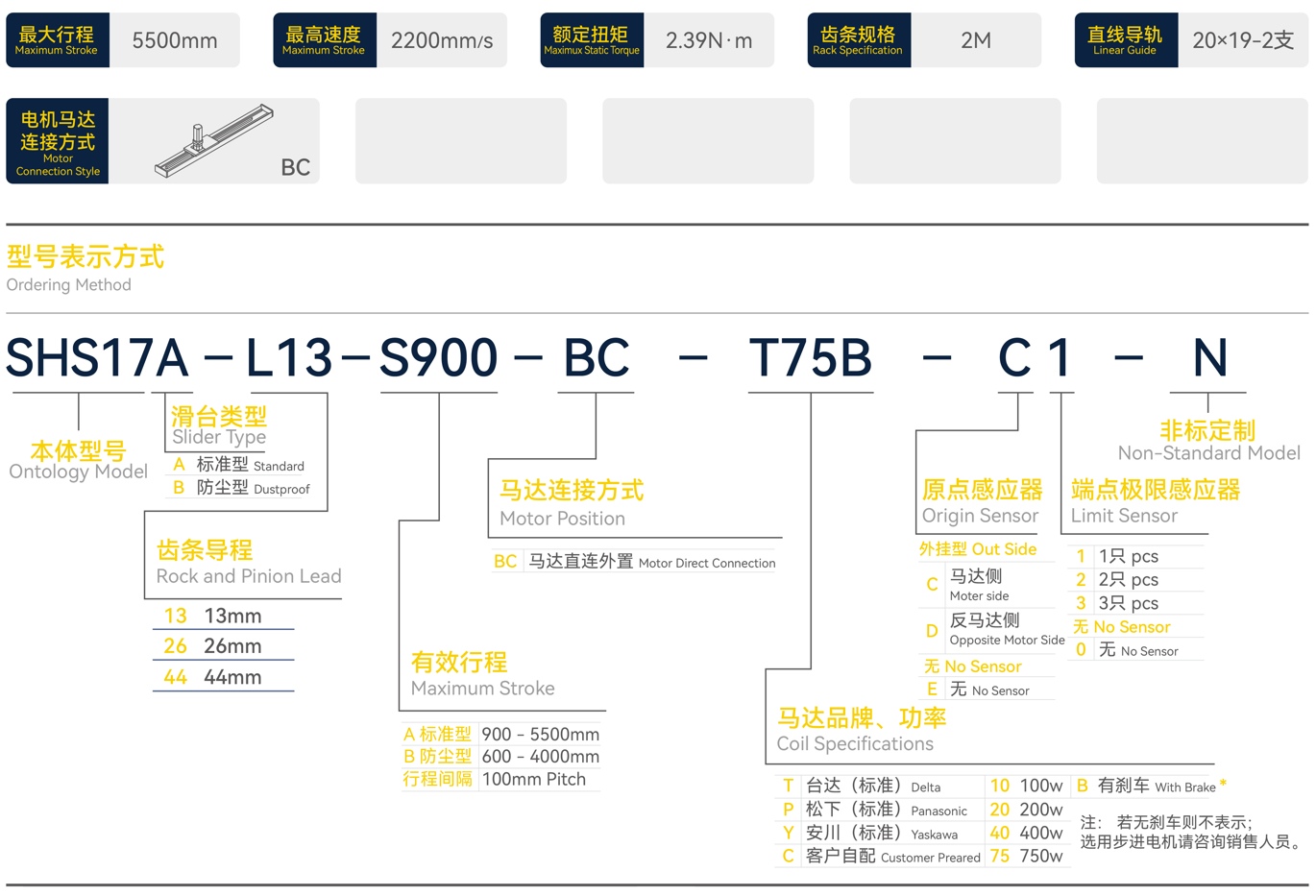

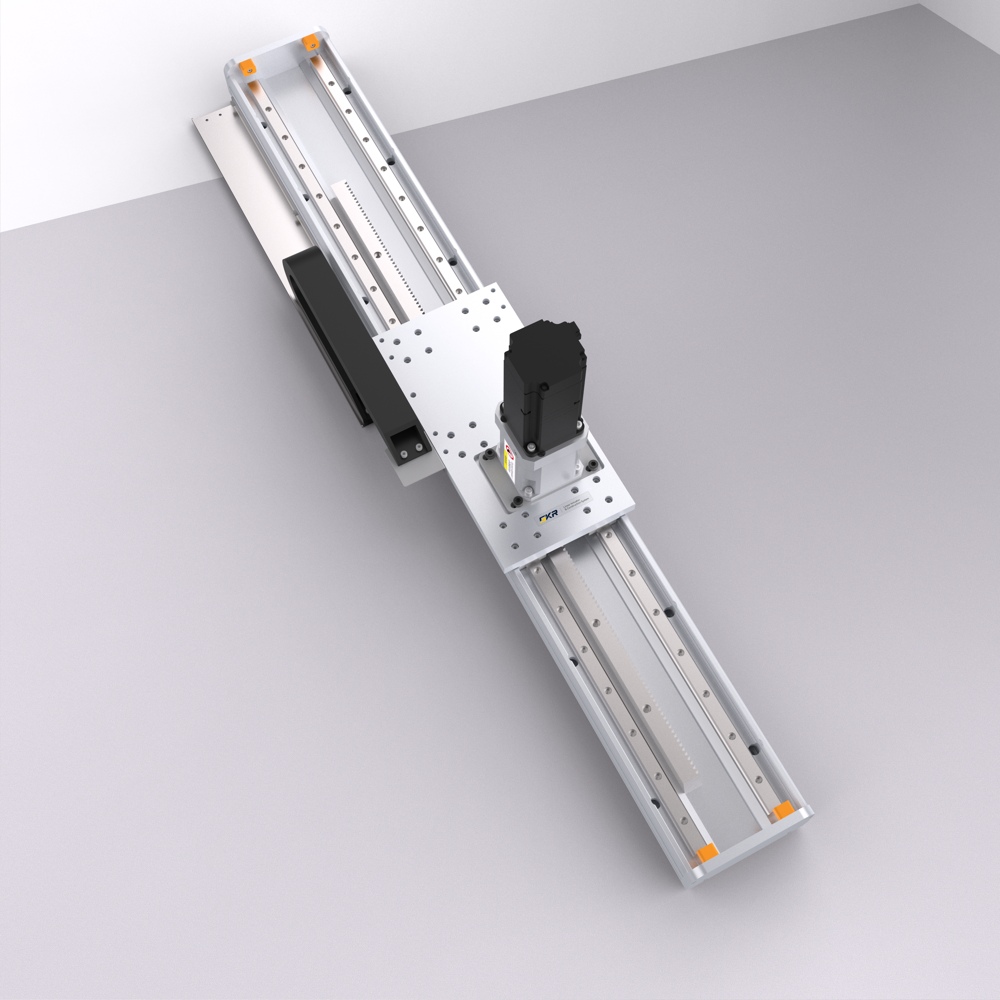

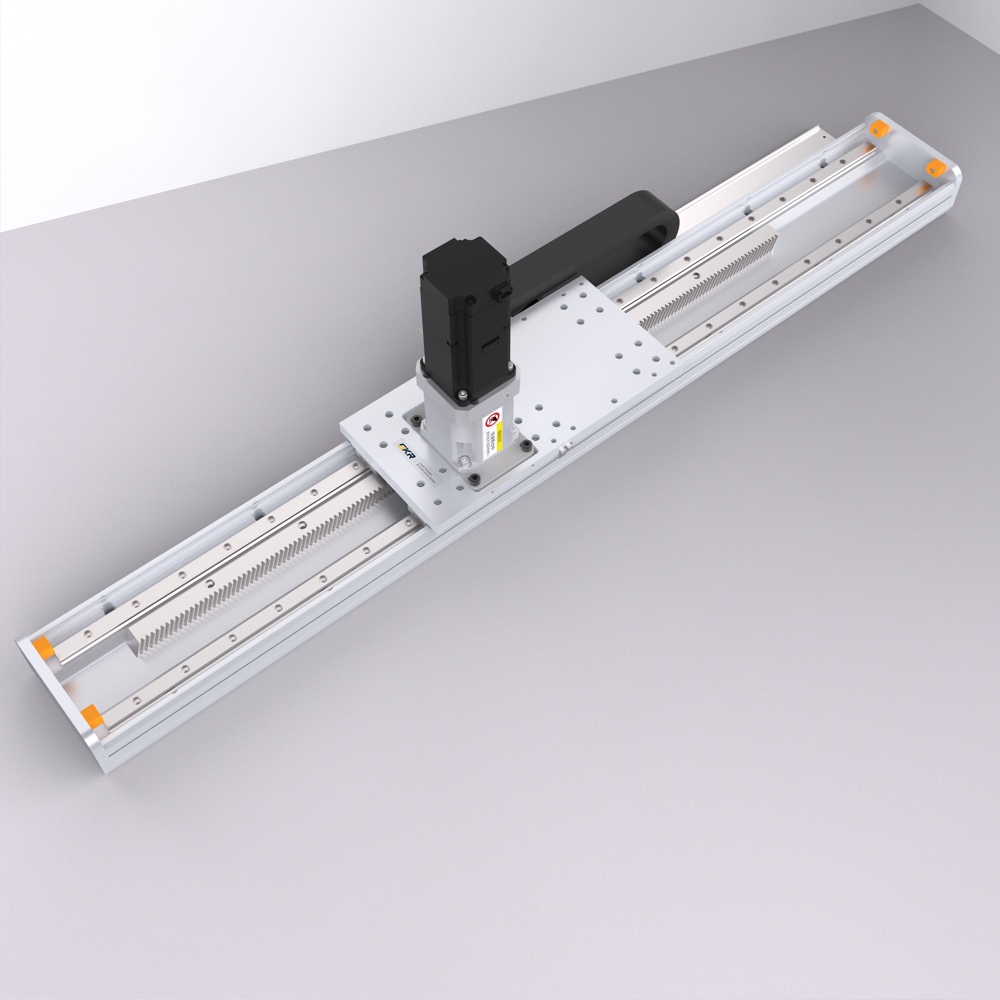

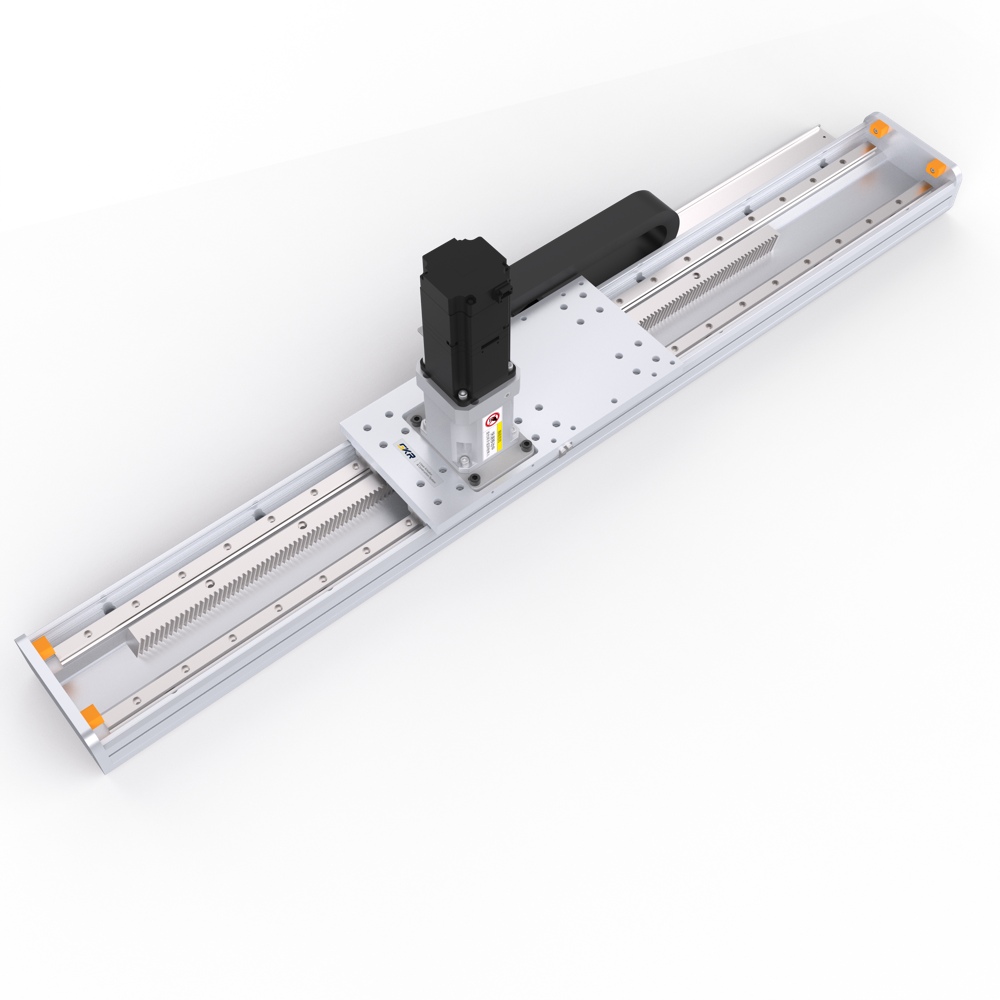

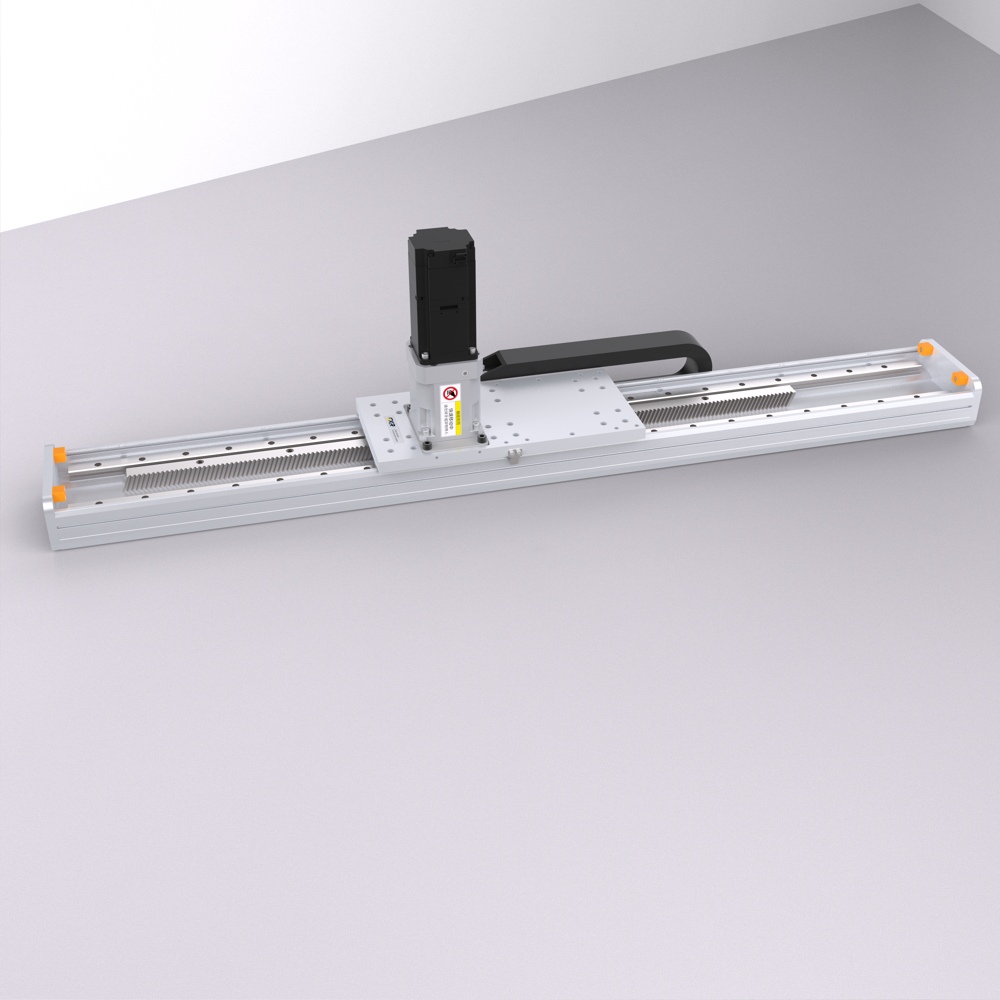

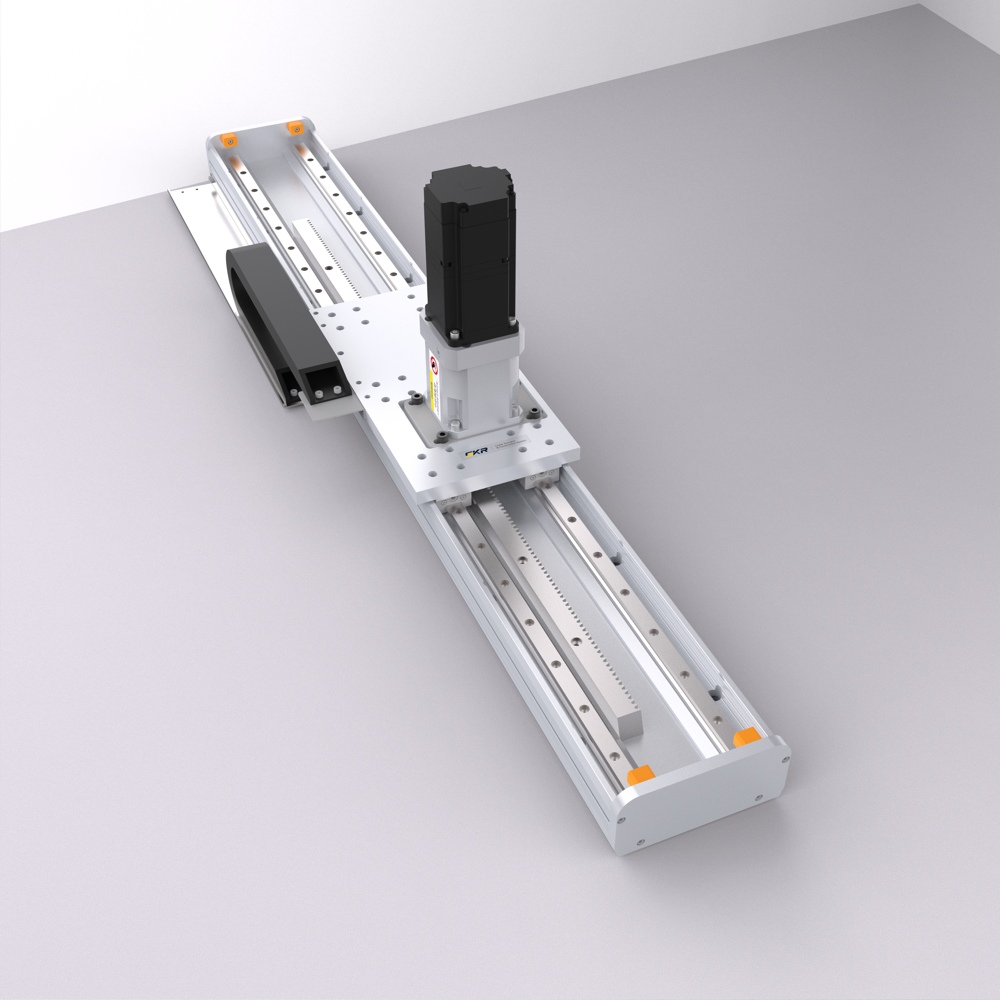

SHS17 Series, Gear Rack Slide Table Module.
Gear rack slide table, specification size base width is consistent with PSS170.- Repeatability±0.02mm
- Gear rack modulus2M
- Product optional lead13mm/26mm/44mm

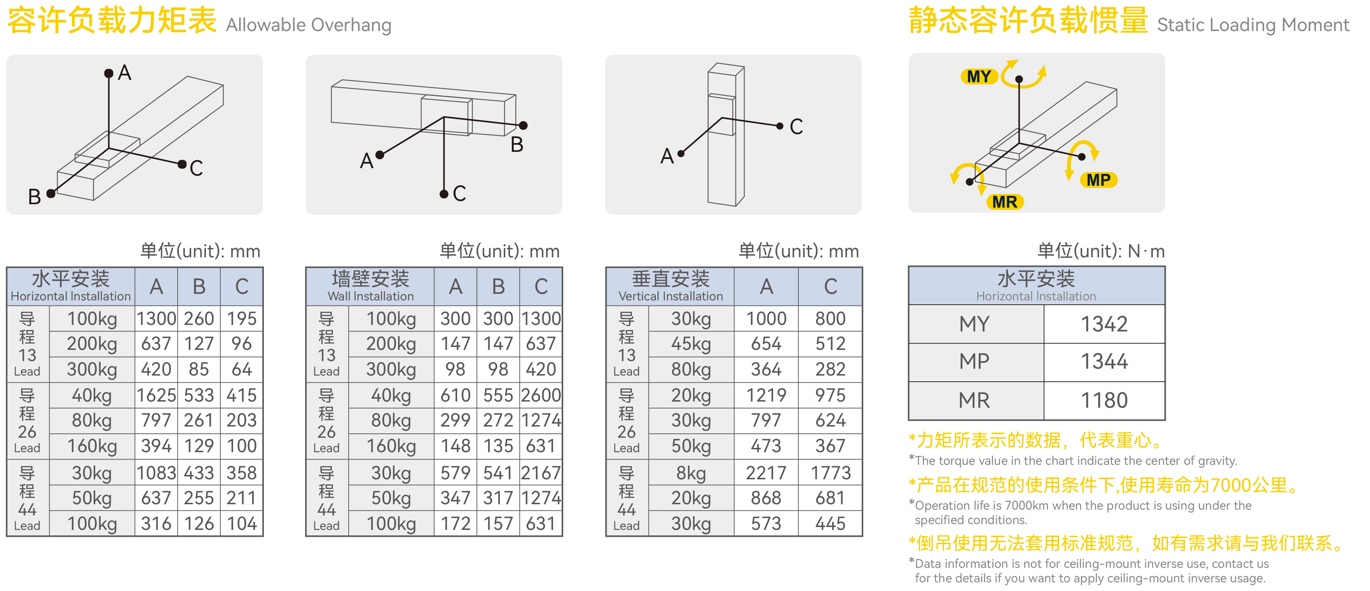

- Horizontal Handling Weight250kg/135kg/85kg
- Vertical Handling Weight60kg/40kg/25kg
- Linear Guide Model20×19-2pcs
- Body Size Reference Width:170mm，Body:Height:79mm

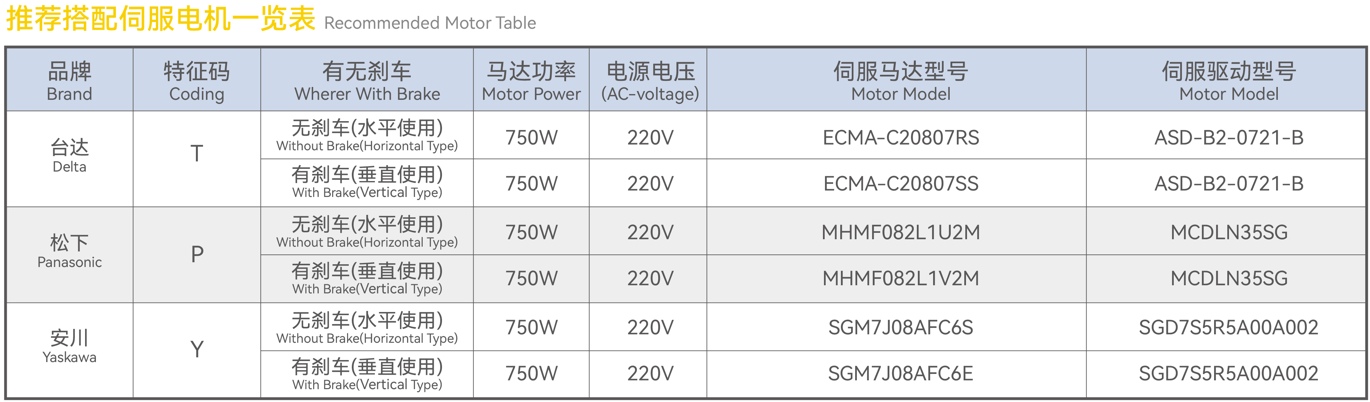

- Drive Specification750W/3000r·min/2.39N·m
- Standard Stroke900~5500mm(Interval 100mm)
Product Data Download
Product Description
