〔SKR〕Linear Module

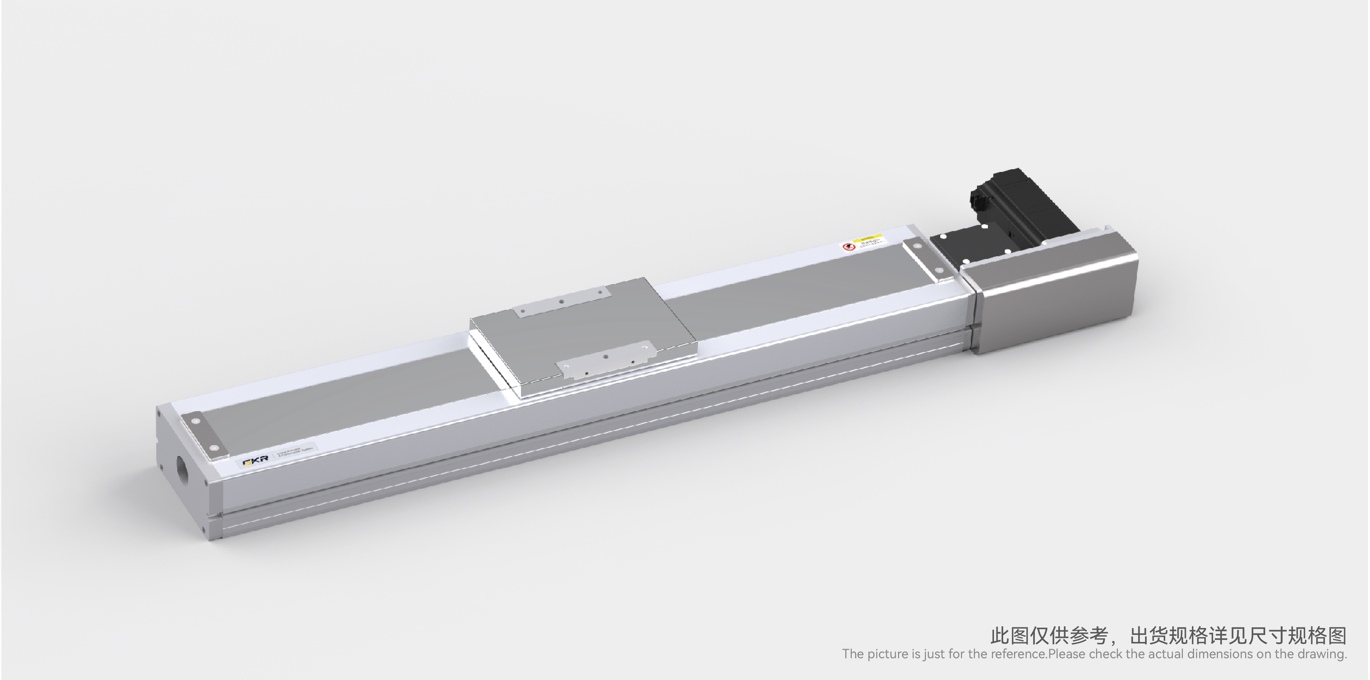

PBC140 Series, brand new synchronous belt fully enclosed module
Larger specification dust-free synchronous belt slide table- Repeatability±0.04mm
- Synchronous Belt Diameter20mm
- Lead40mm
- Horizontal Handling Weight35kg
- Vertical Handling WeightThis series is not supported
- Linear Guide Model15×12.5-2pcs
- Body Size Reference Width:135mm， Height:91mm

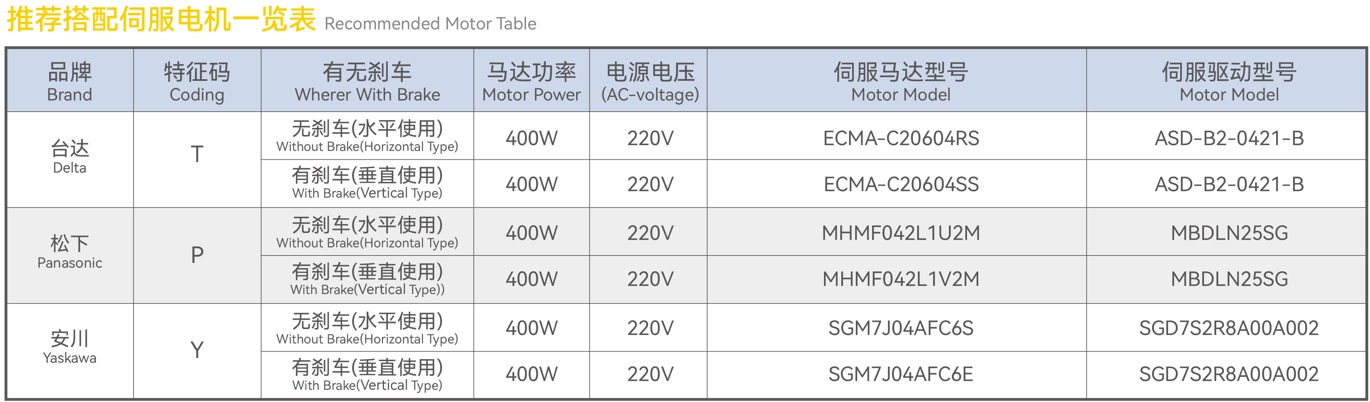

- Drive Specification400W/3000r·min/1.27N·m
- Standard Stroke100~3050mm(Interval 50mm)
Product Data Download
Product Description
