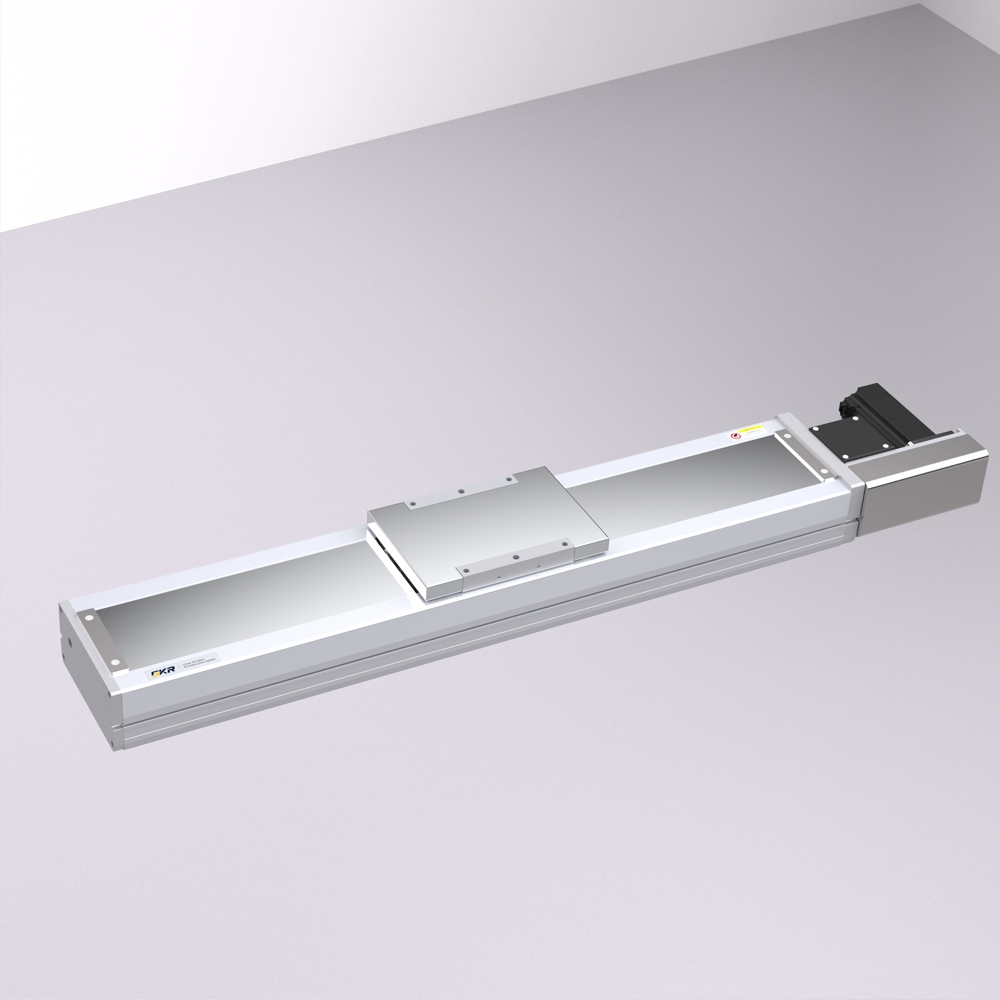

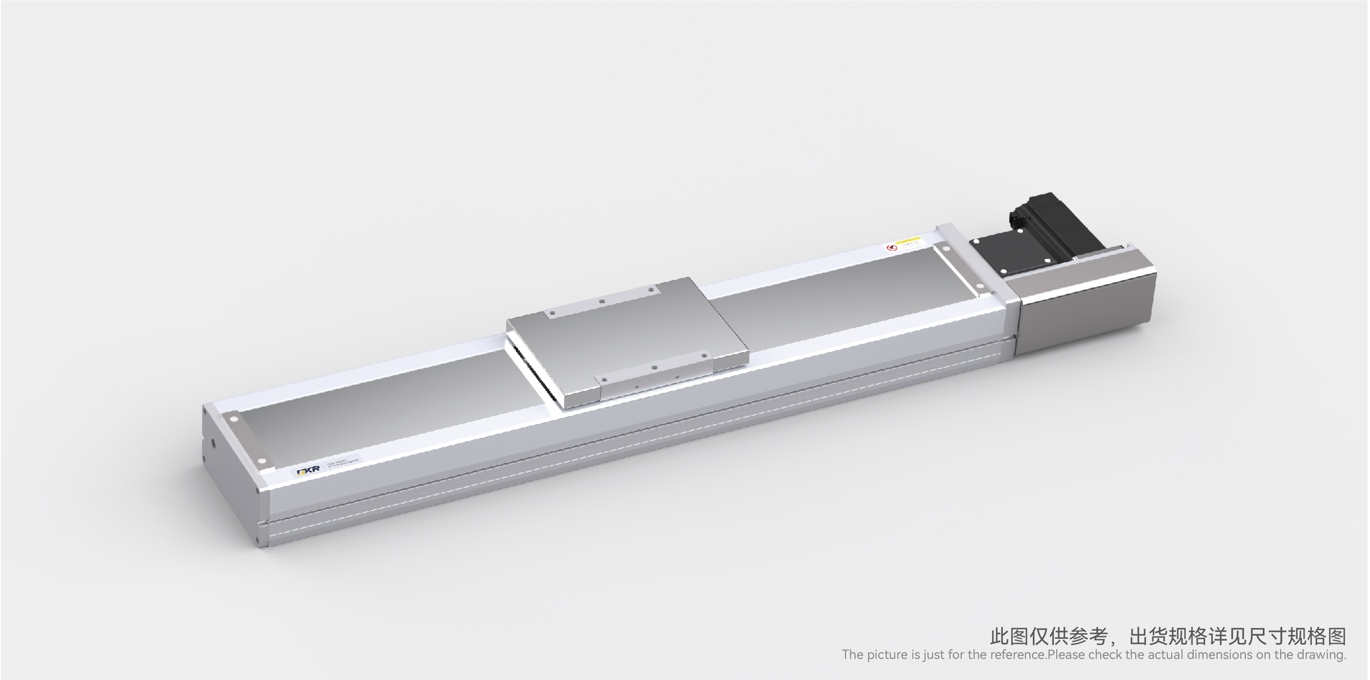

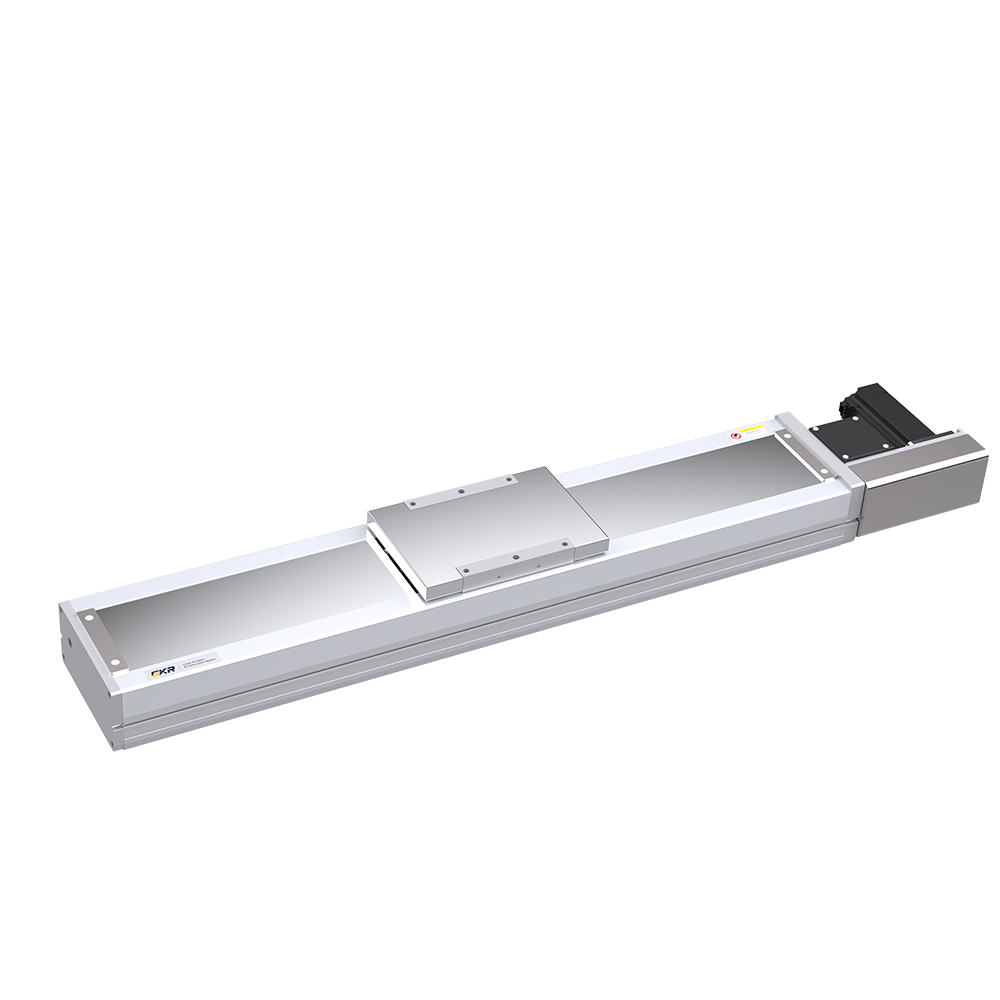

〔SKR〕Linear Module

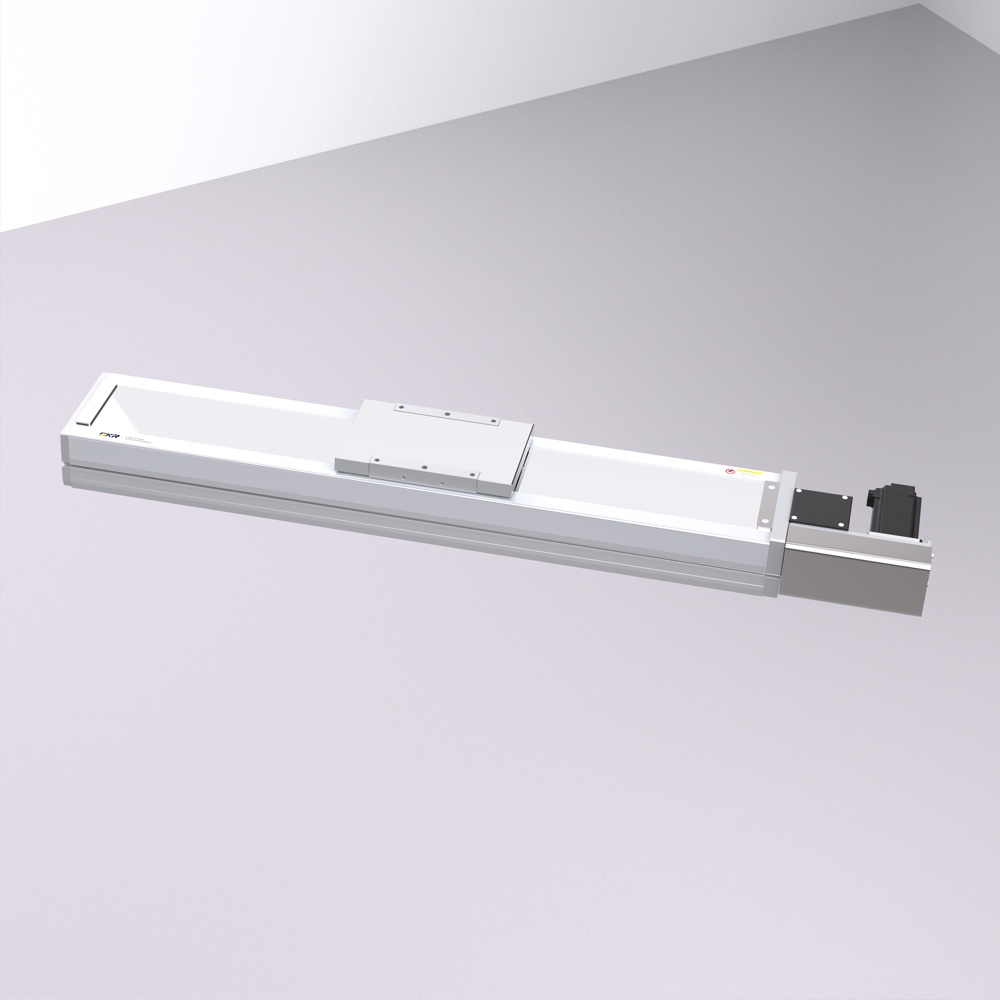

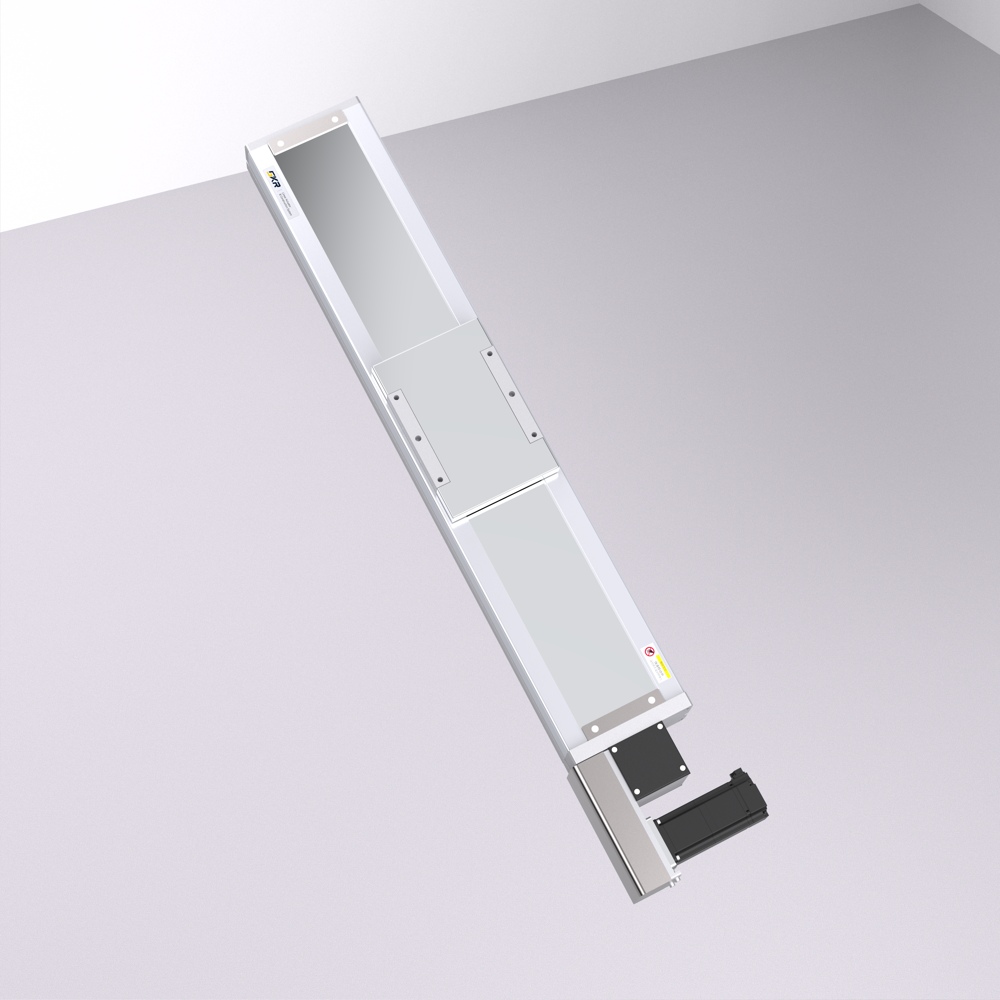

PBC170 Series, brand new synchronous belt fully enclosed module

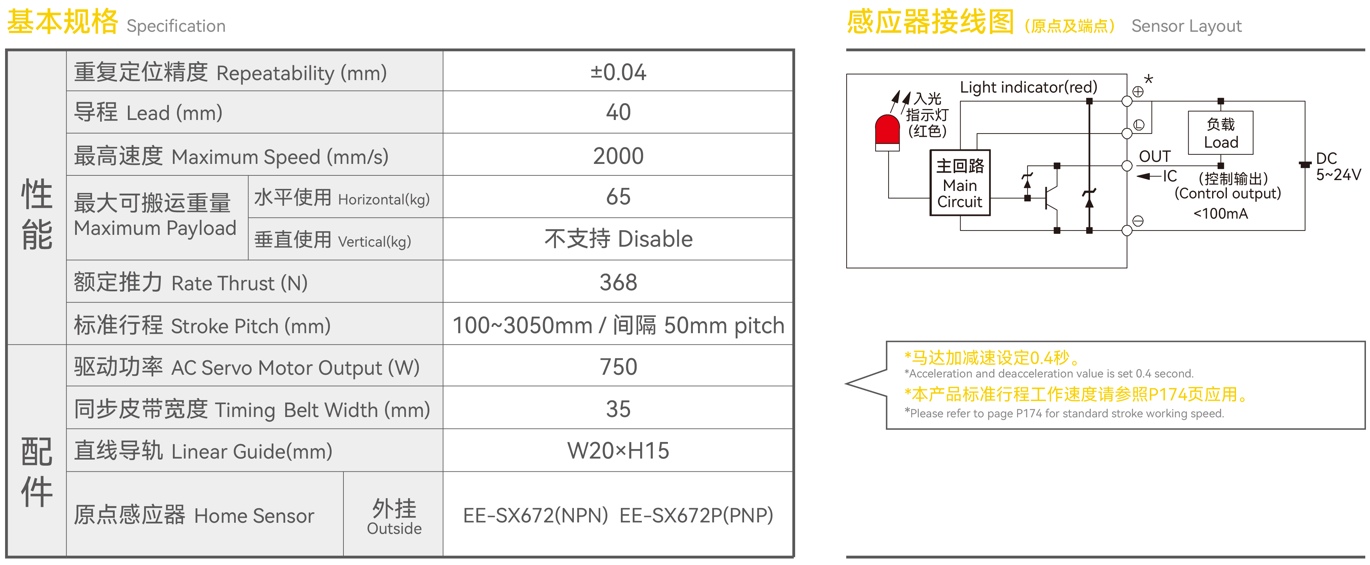

Large specification synchronous belt suitable for dust-free workshop slide table- Repeatability±0.04mm
- Synchronous Belt Diameter35mm
- Lead40mm
- Horizontal Handling Weight65kg
- Vertical Handling WeightThis series is not supported
- Linear Guide Model20×15-2pcs
- Body Size Reference Width:170mm， Height:107mm

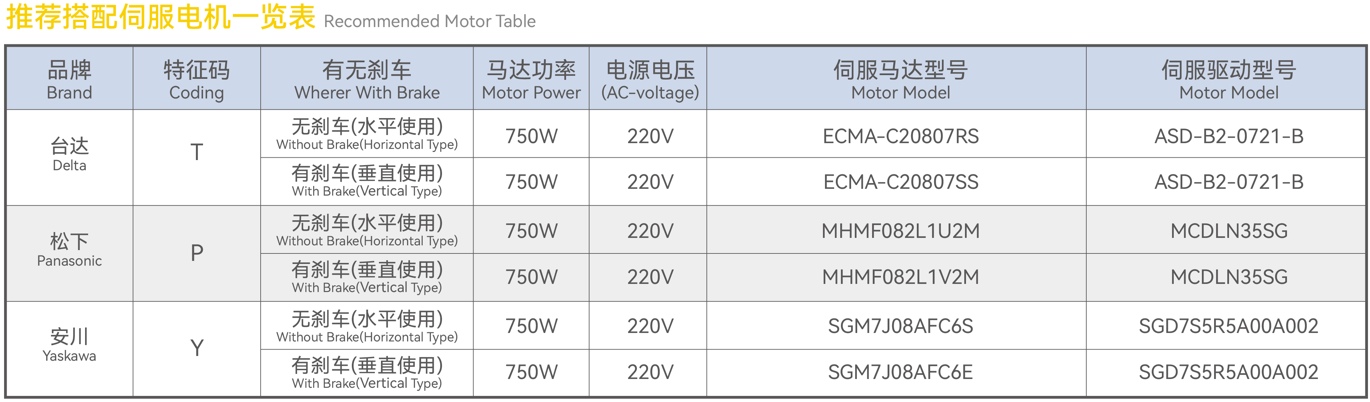

- Drive Specification750W/3000r·min/2.39N·m
- Standard Stroke100~3050mm(Interval 50mm)
Product Data Download
Product Description
