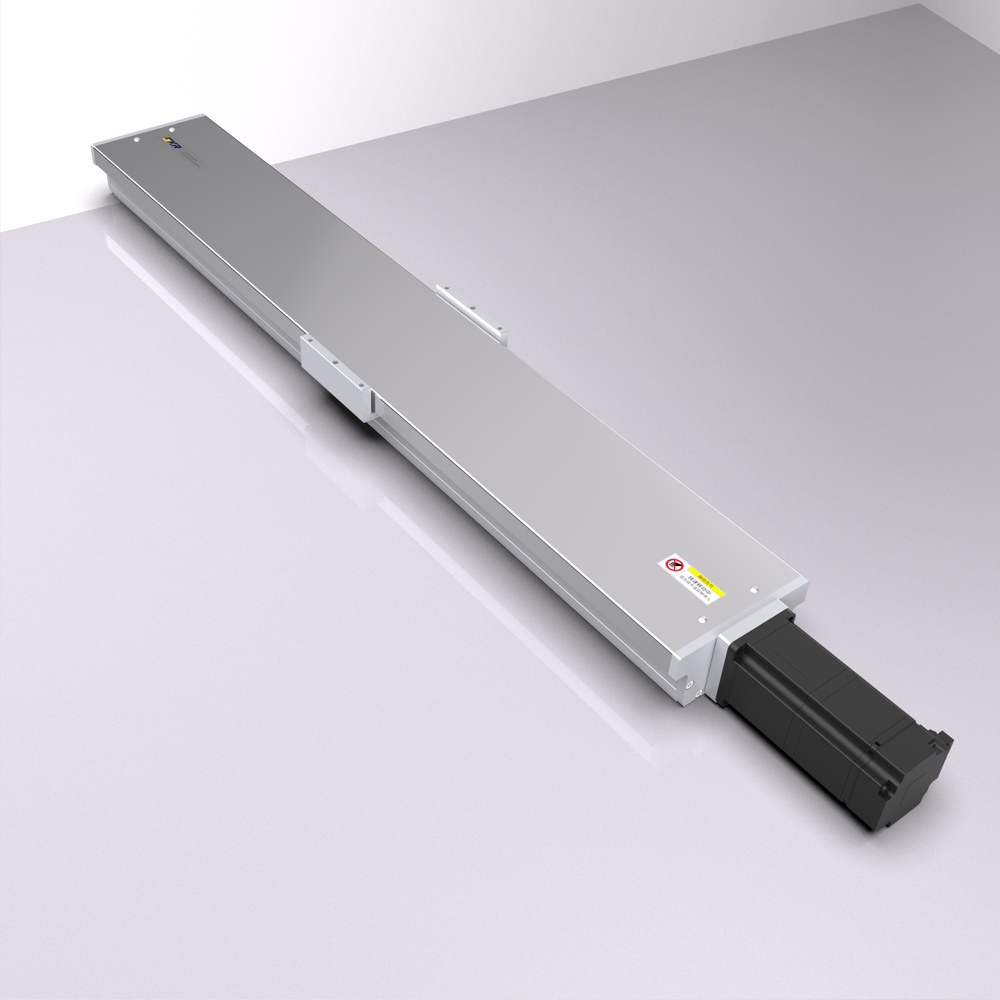

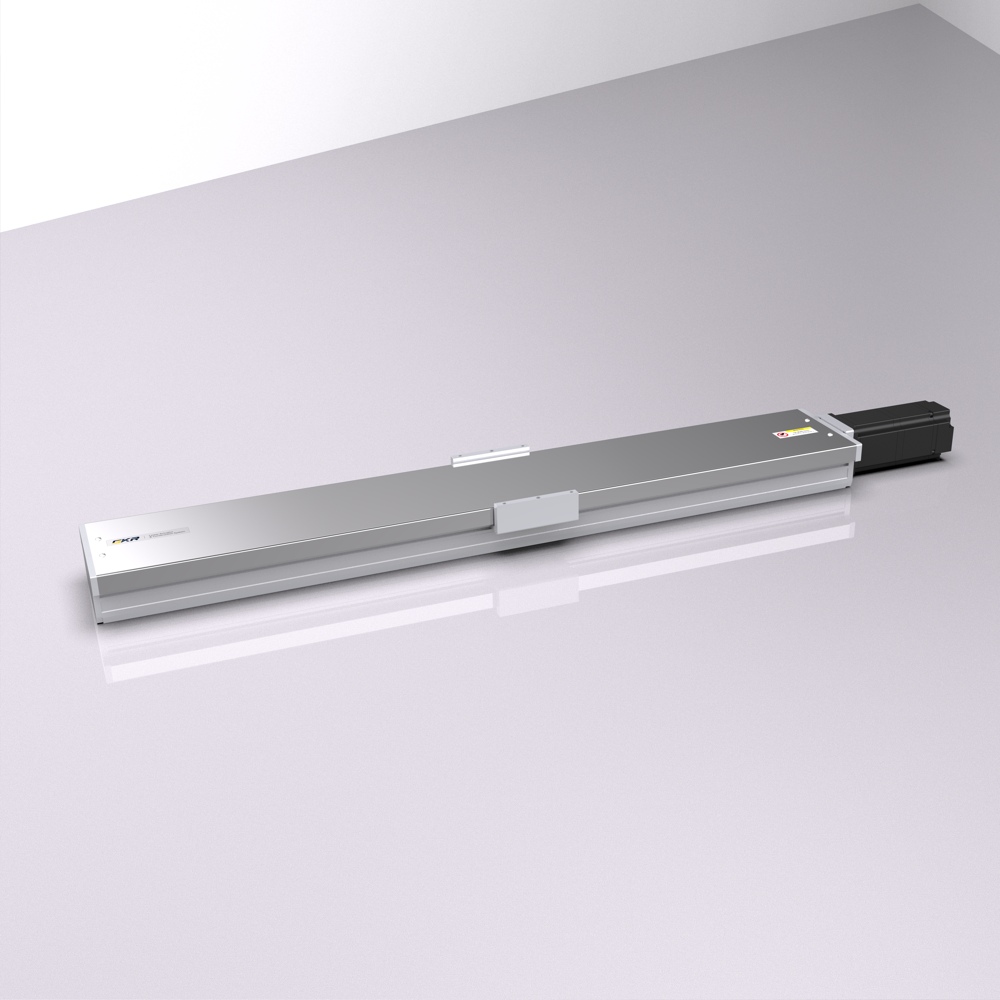

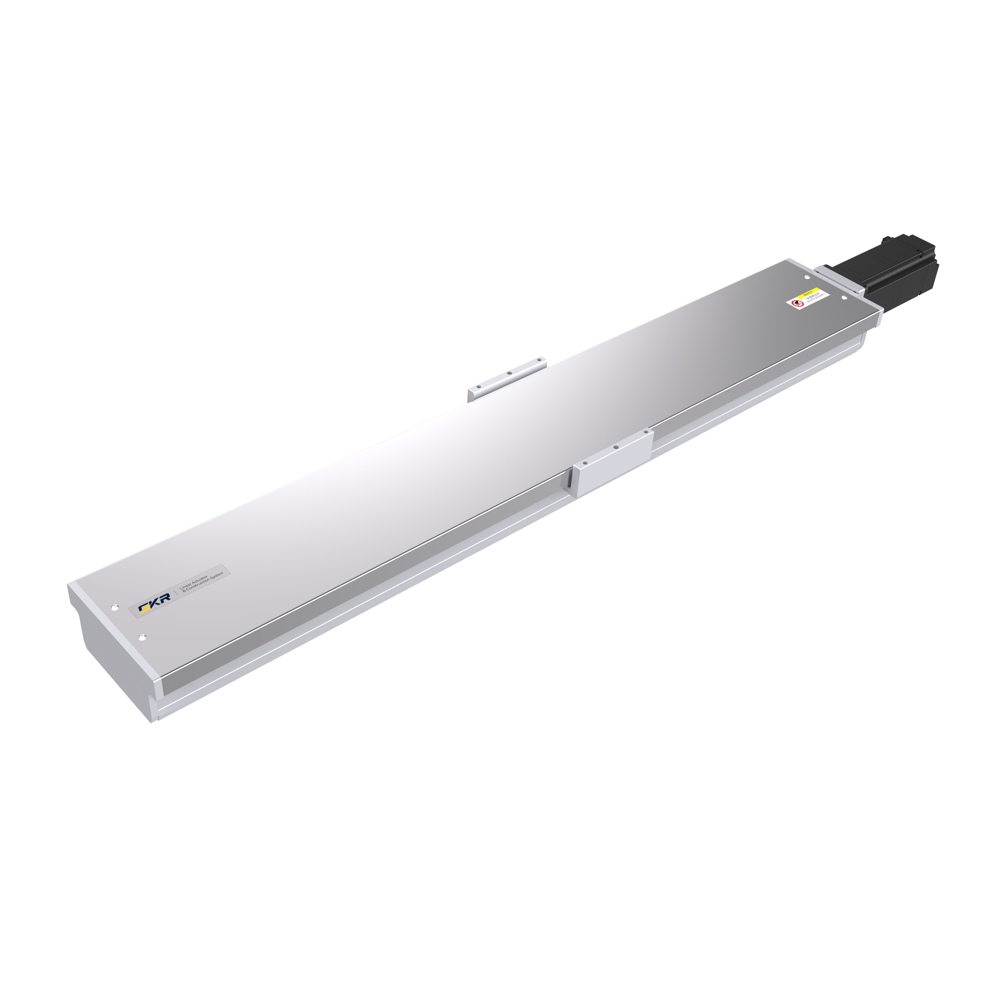

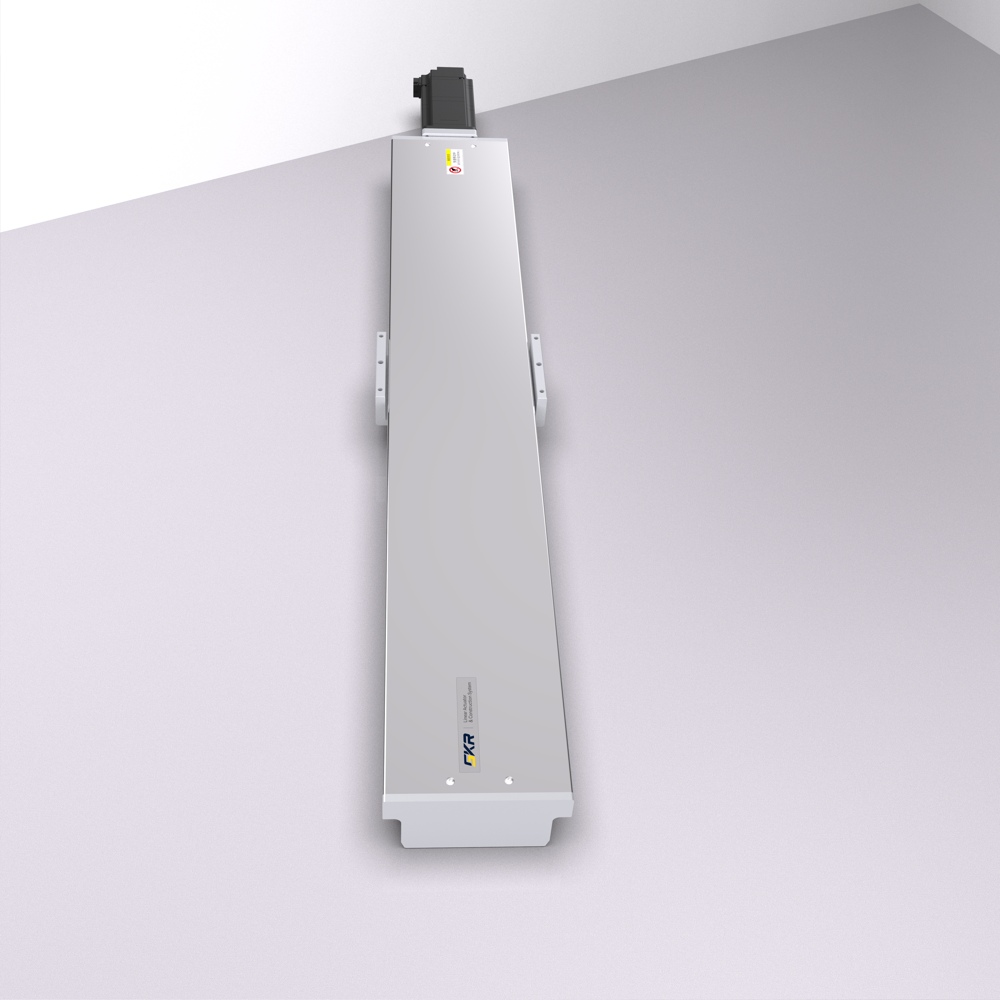

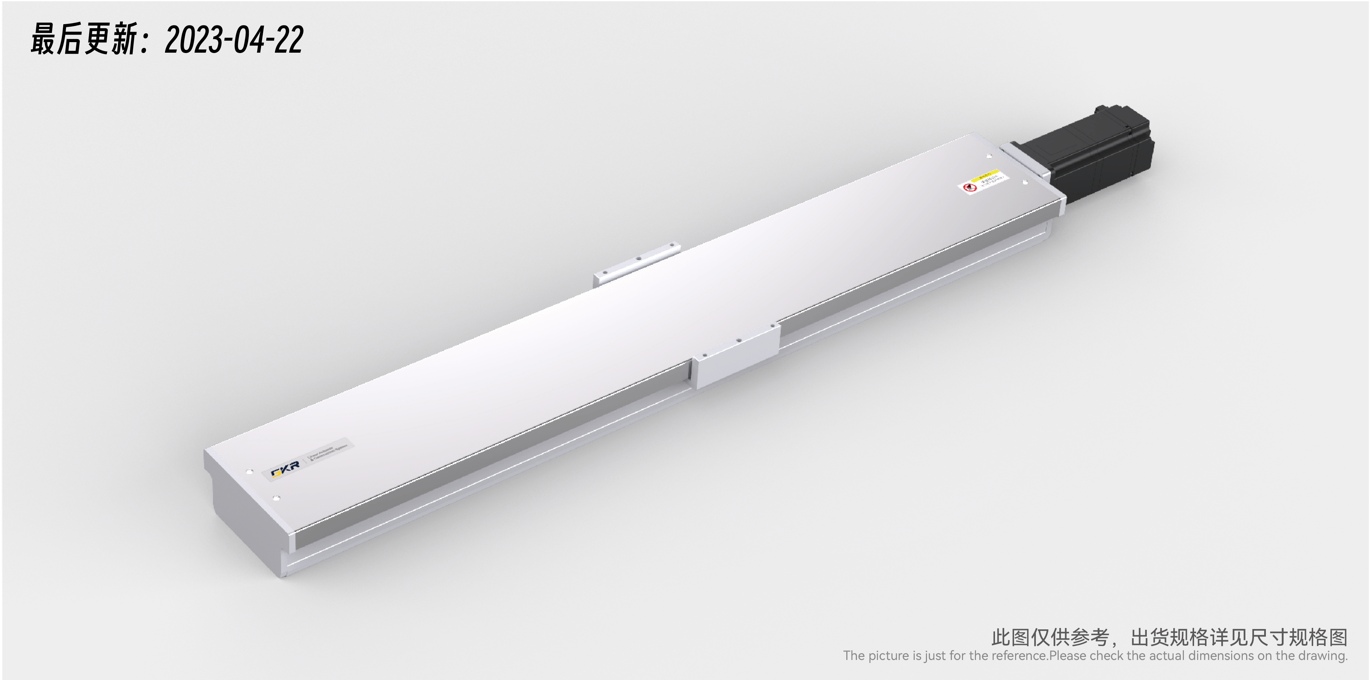

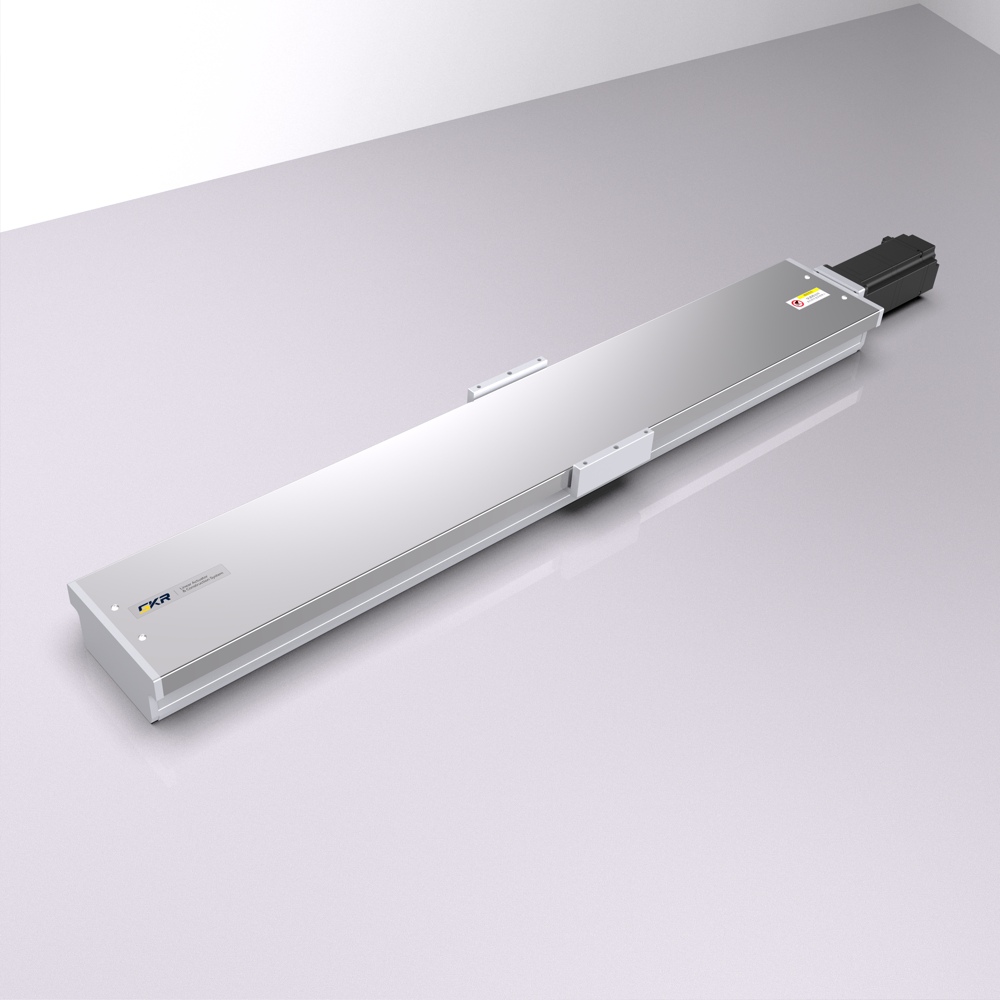

PSM100 series New physical blocking linear slide
PSM100 series New physical blocking linear slide
PSM100 series New physical blocking linear slide
PSM100 series New physical blocking linear slide
PSM100 series New physical blocking linear slide
PSM100 series New physical blocking linear slide

PSM100 series New physical blocking linear slide

The smallest PSM product. The width is 102mm;”

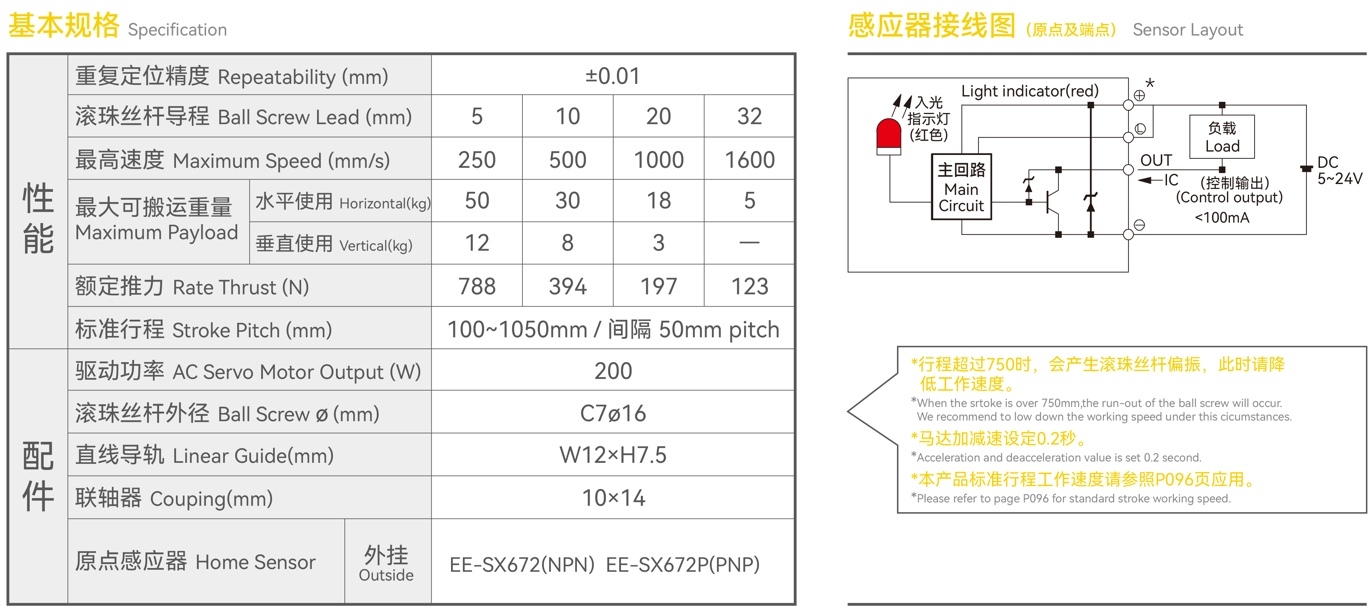

  • Repeatability±0.01mm
  • Ball Screw øC7ø16
  • Ball Screw Lead5mm/10mm/20mm/32mm

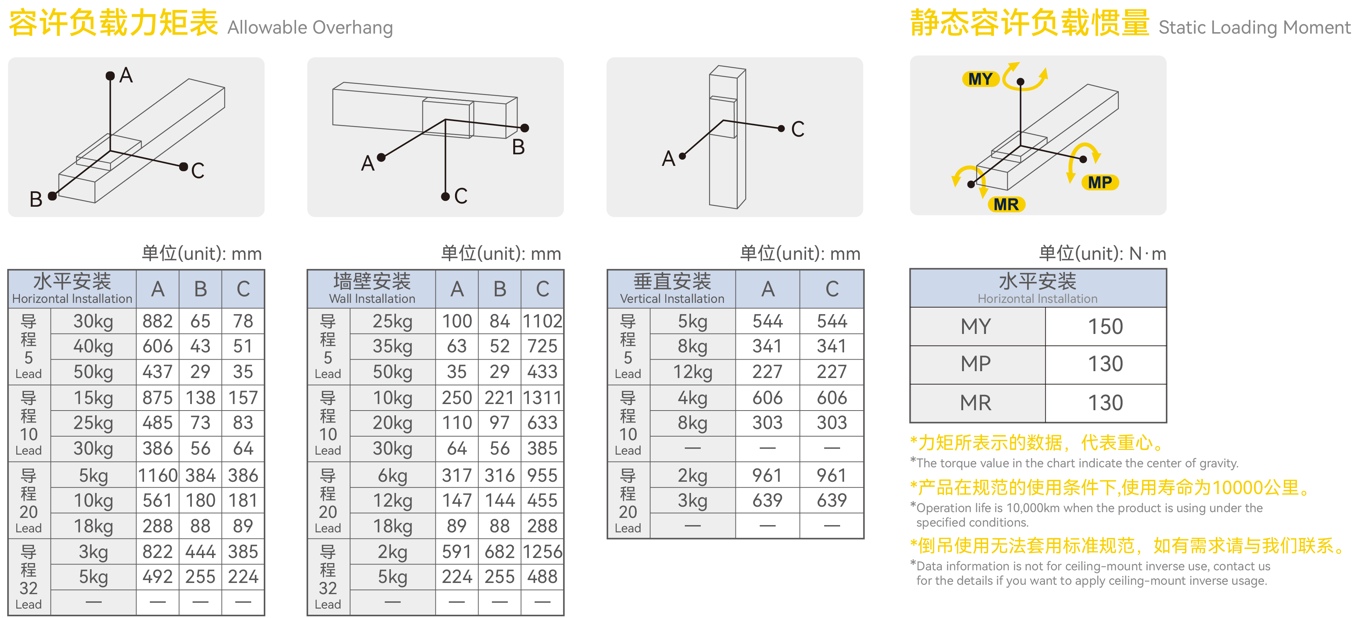

  • Horizontal Handling Weight50kg/30kg/18kg/5kg
  • Vertical Handling Weight12kg/8kg/3kg/0kg
  • Linear Guide Model12×7.5-2pcs

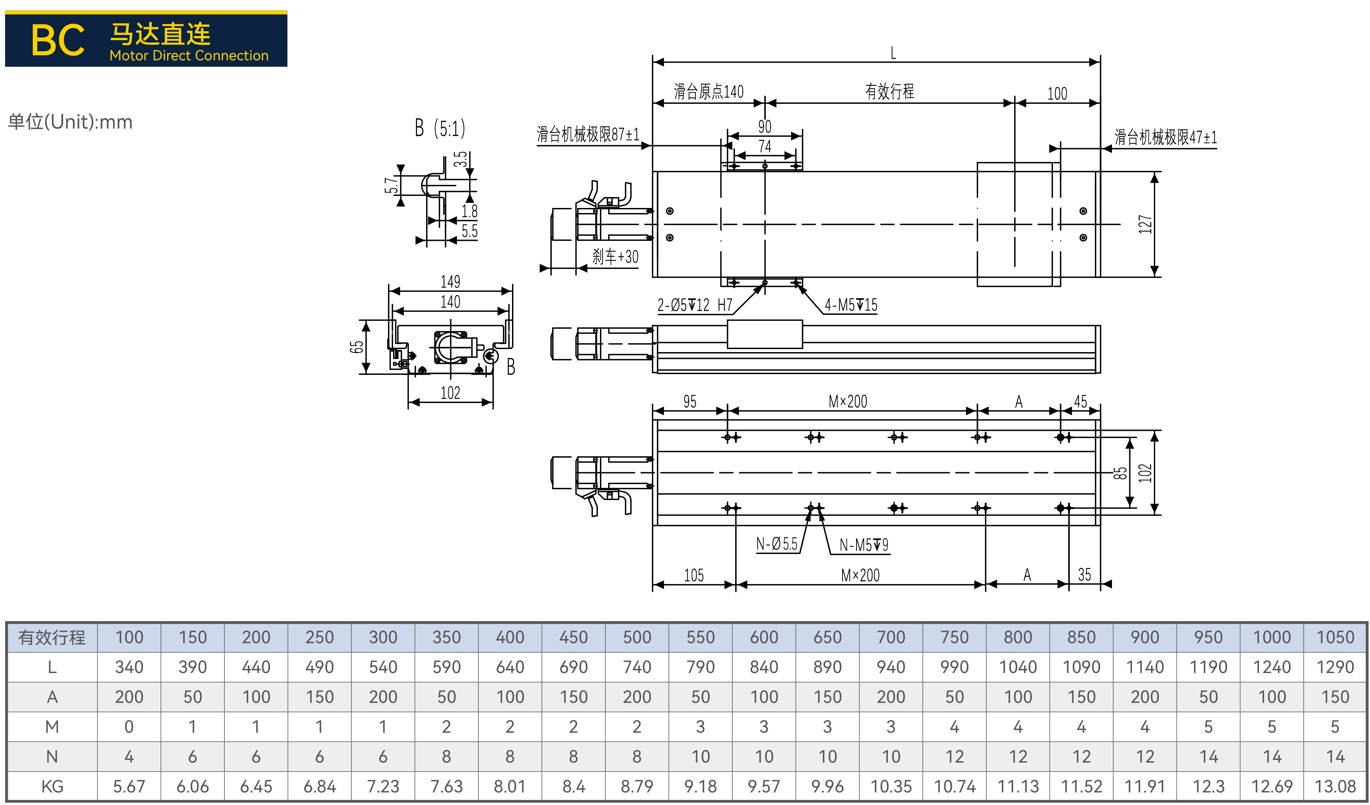

  • Body Size Reference Width:102mm， Height:65mm

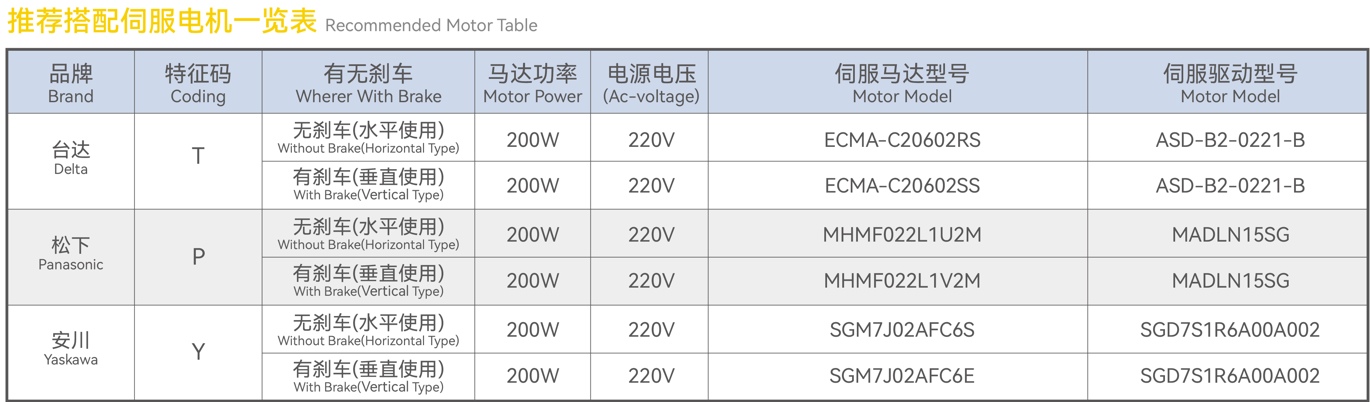

  • Drive Specification200W/3000r·min/0.64N·m
  • Standard Stroke100~1050mm(Interval 50mm)
Inquire This Product
Go to Official Flagship Store to Buy

Product Data Download

Product Description

Product Features

Innovative structure! Physical barrier design;

PSM100 series New physical blocking linear slidePSM100 series New physical blocking linear slidePSM100 series New physical blocking linear slidePSM100 series New physical blocking linear slidePSM100 series New physical blocking linear slidePSM100 series New physical blocking linear slide
