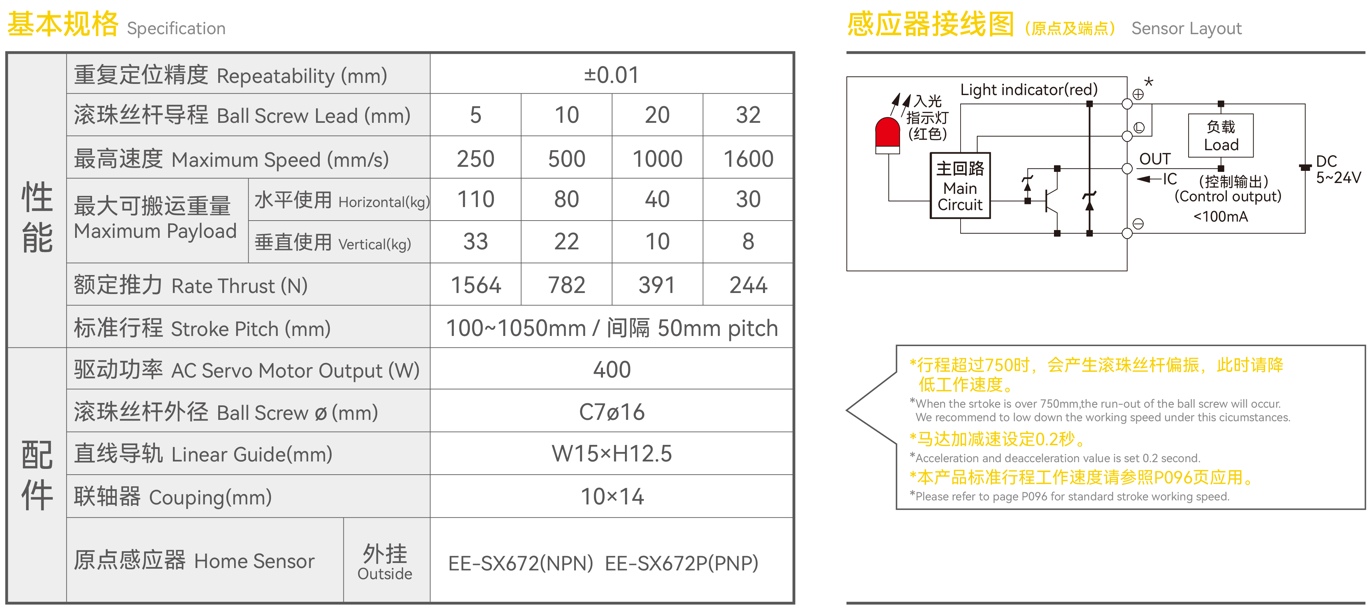

Medium-sized PSM products. The width is 135mm;

Repeatability±0.01mm
Ball Screw øC7ø16
Ball Screw Lead5mm/10mm/20mm/32mm

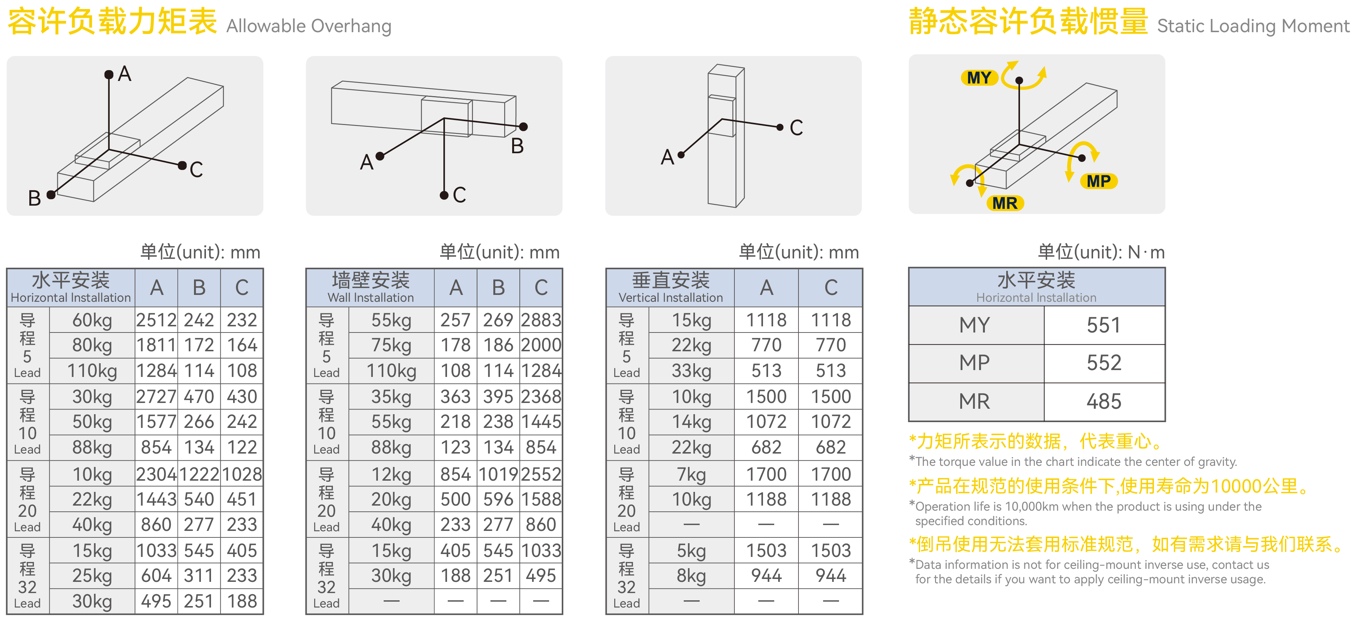

Horizontal Handling Weight110kg/88kg/40kg/30kg
Vertical Handling Weight33kg/22kg/10kg/8kg
Linear Guide Model15×12.5-2pcs

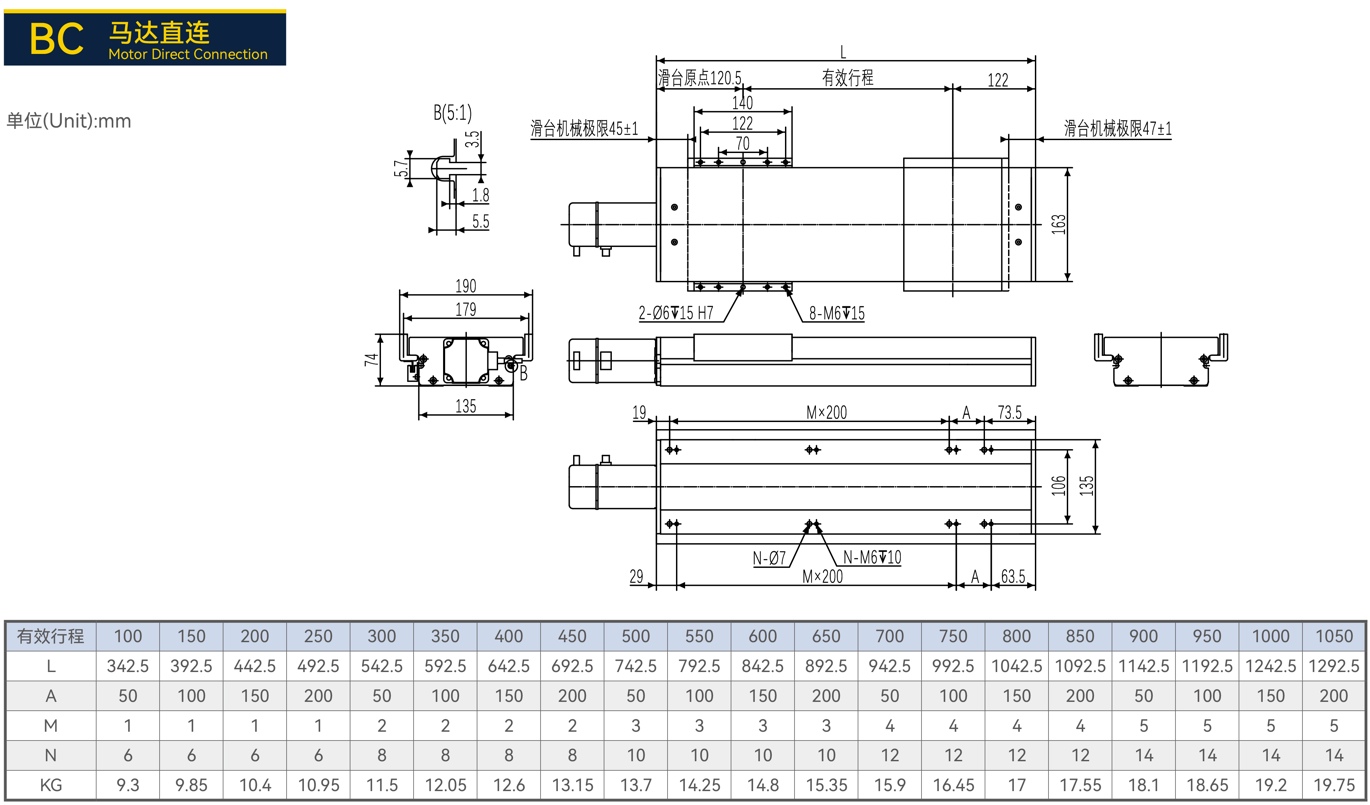

Body Size Reference Width:135mm， Height:74mm

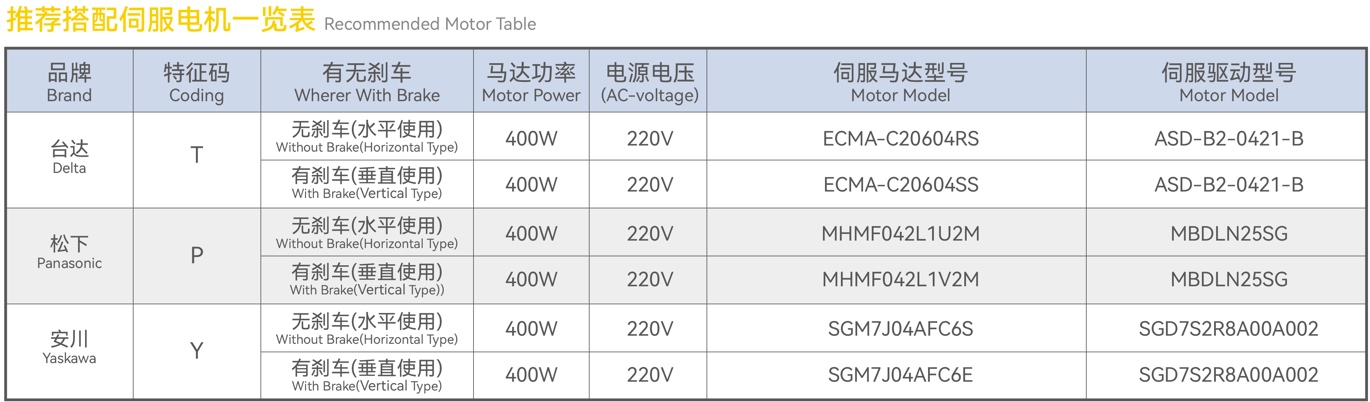

Drive Specification400W/3000r·min/1.27N·m
Standard Stroke100~1050mm(Interval 50mm)

Inquire This Product

Go to Official Flagship Store to Buy

Product Data Download

Product Description

Product Features

Innovative structure! Physical barrier design;
