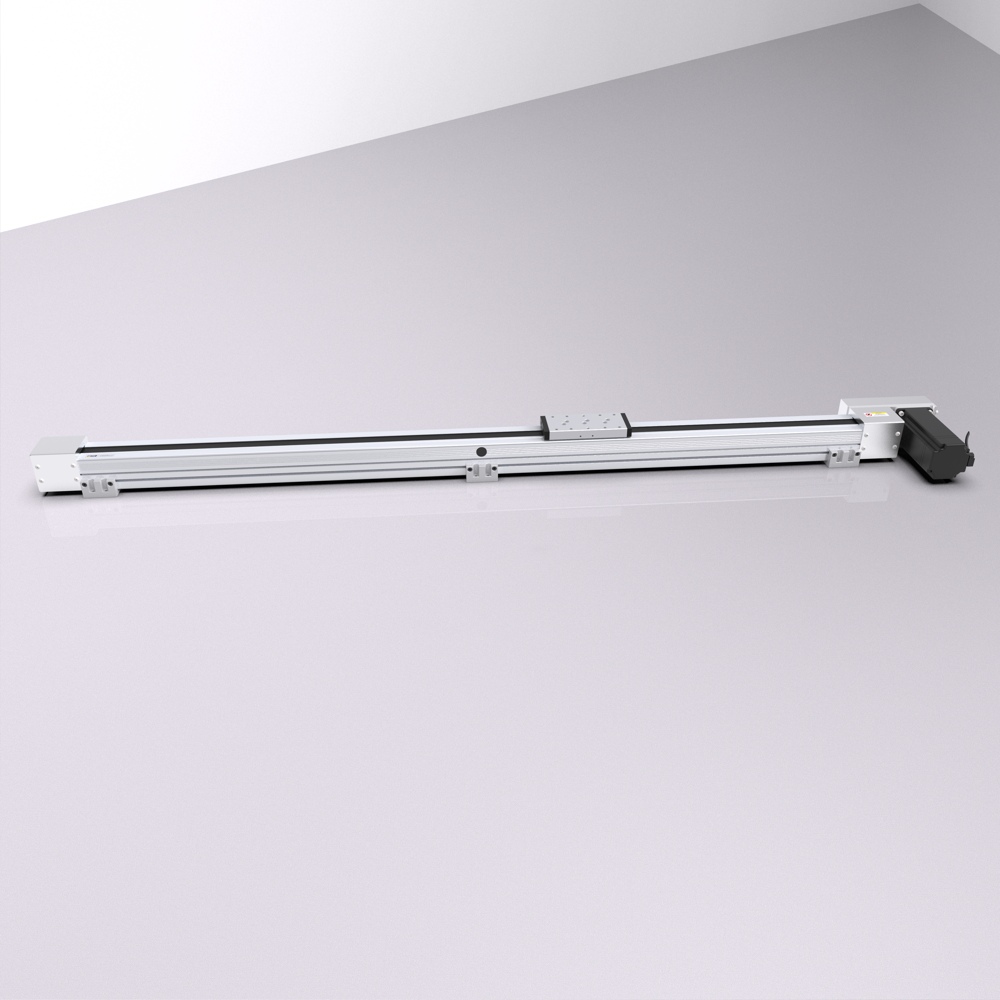

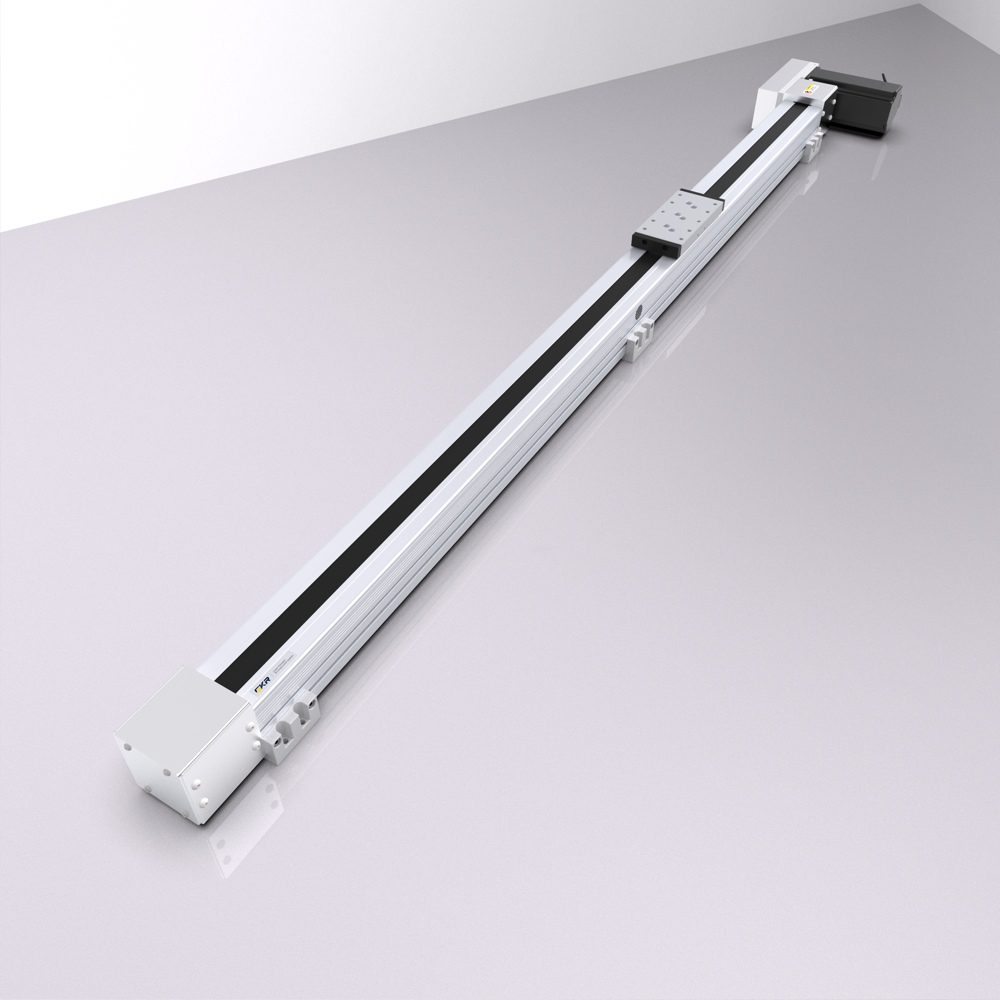

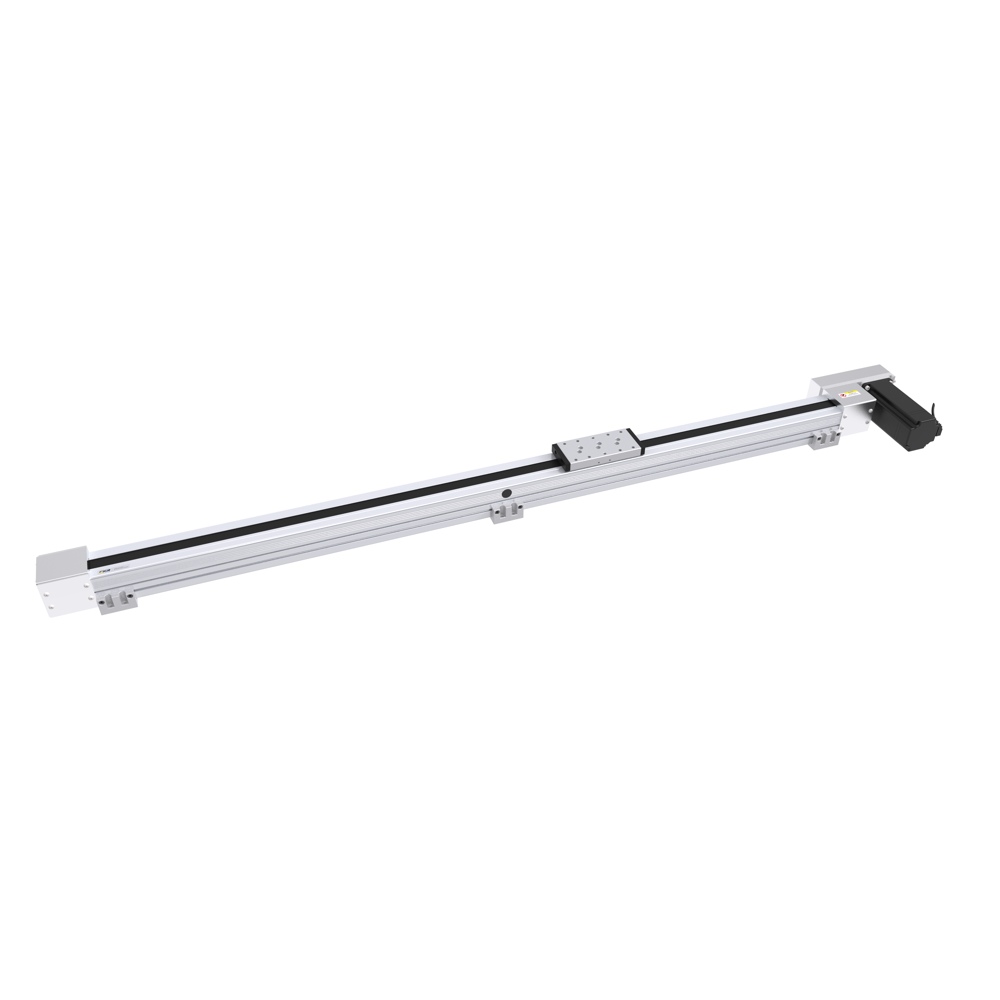

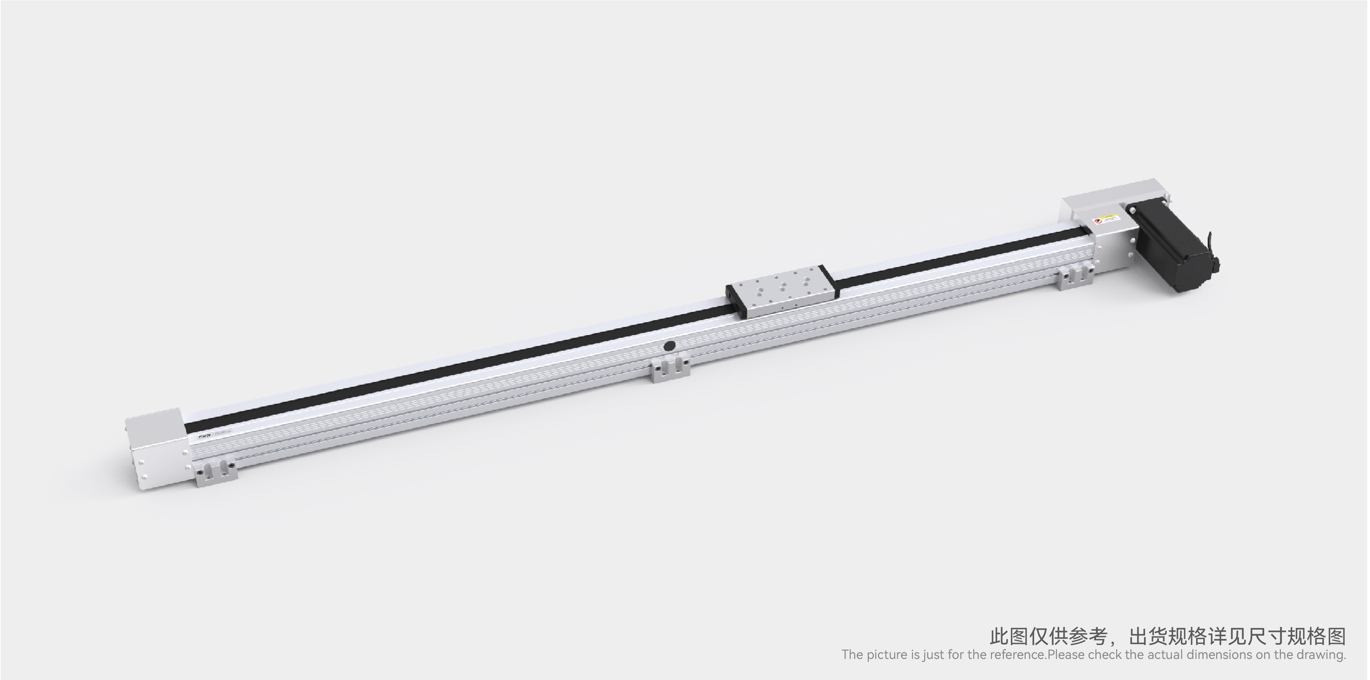

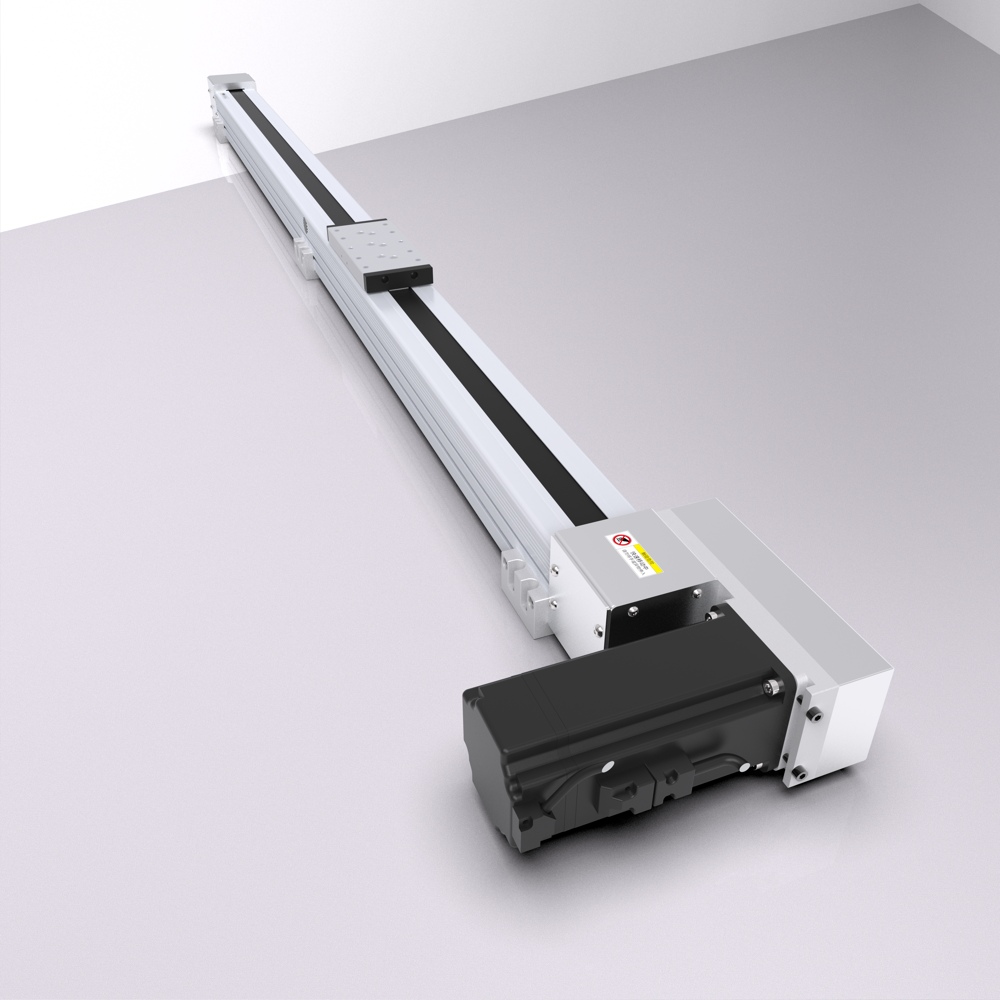

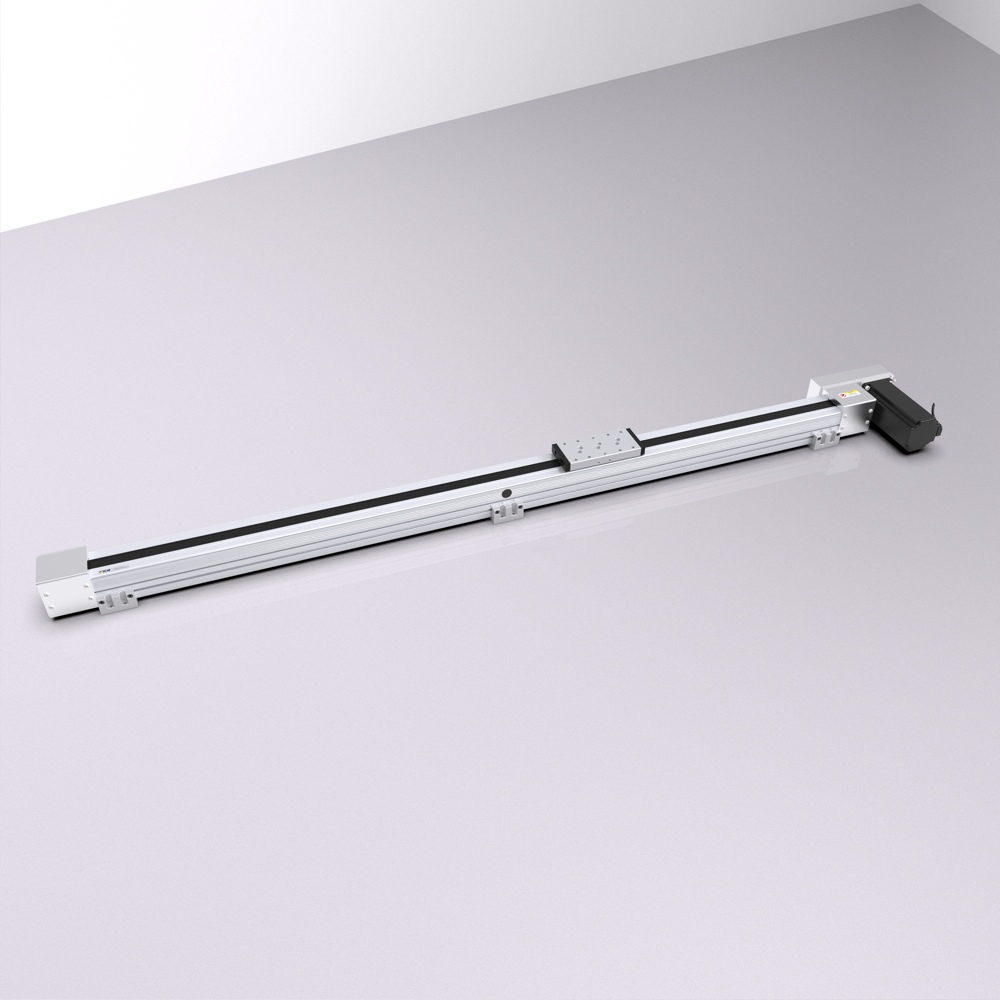

SK80 Series, European Standard Synchronous Belt Slide Table Module
SK80 Series, European Standard Synchronous Belt Slide Table Module
SK80 Series, European Standard Synchronous Belt Slide Table Module
SK80 Series, European Standard Synchronous Belt Slide Table Module
SK80 Series, European Standard Synchronous Belt Slide Table Module
SK80 Series, European Standard Synchronous Belt Slide Table Module

SK80 Series, European Standard Synchronous Belt Slide Table Module

Economical, Medium Size, Long Stroke, European Standard Slide Table

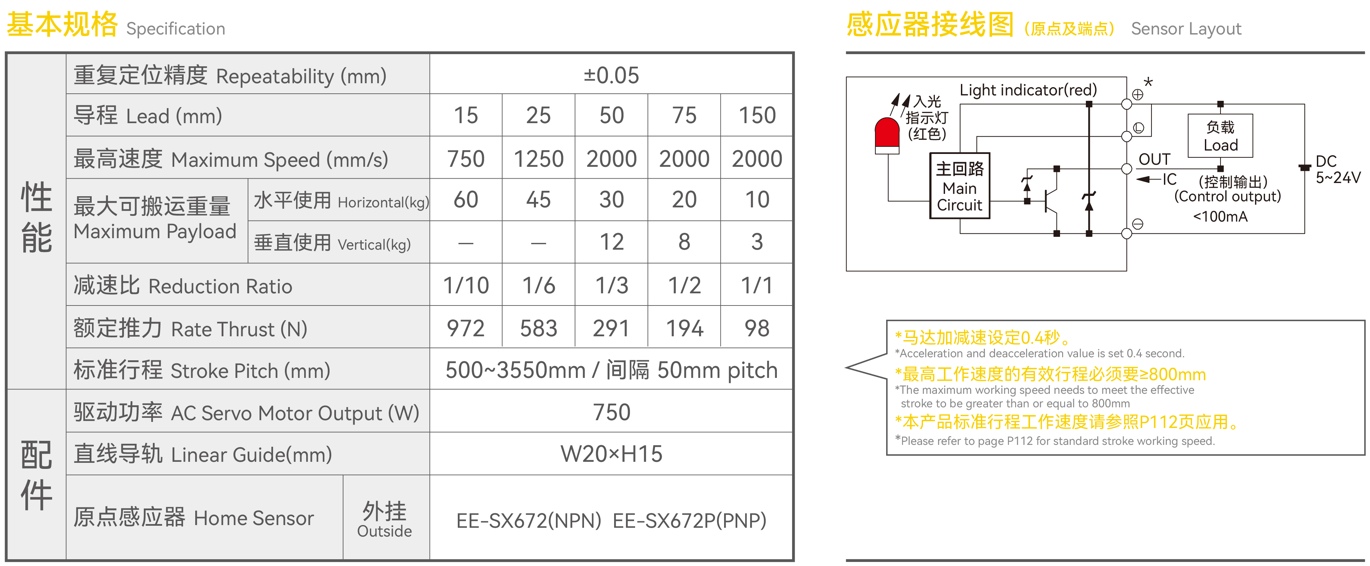

  • Repeatability±0.05mm
  • Synchronous Belt Diameter30mm

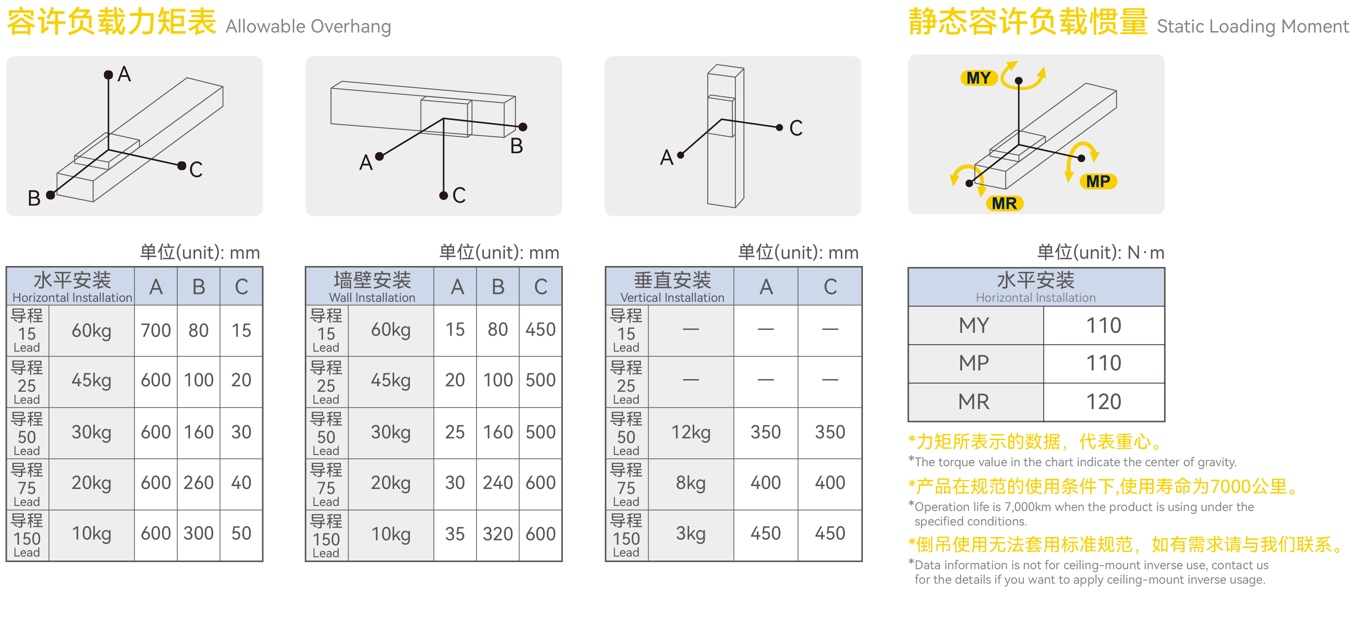

  • Horizontal Handling Weight10kg
  • Vertical Handling Weight3kg
  • Lead150mm(Other leads require the installation of a speed reduction mechanism)
  • Linear Guide Model20×15-1pcs
  • Body Size Reference Width:84mm(Not including the installation block), Height:104mm

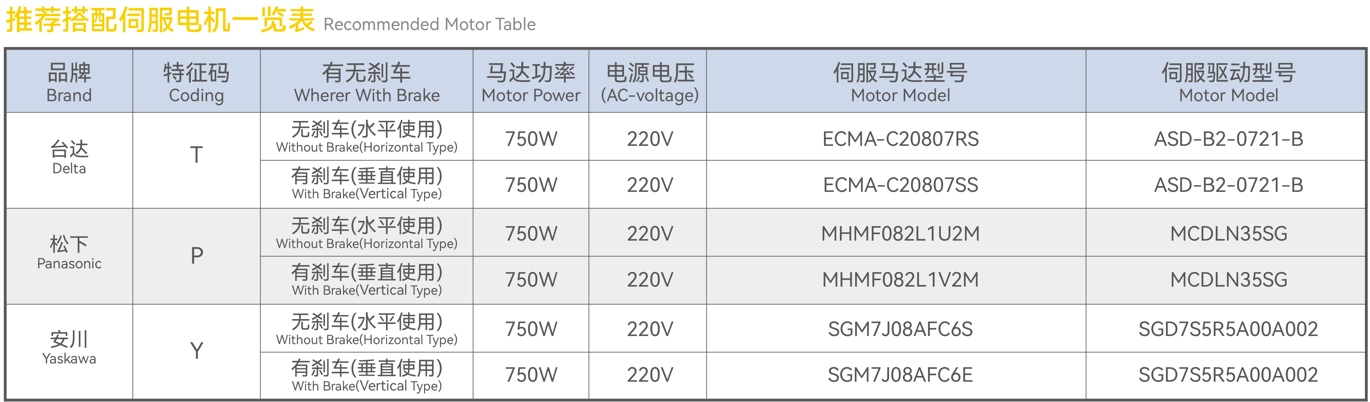

  • Drive Specification750W/3000r·min/2.39N·m
  • Standard Stroke5000~3550mm(Interval 50mm)

Product Data Download

Product Description

Product Features

European Standard Synchronous Belt Slide Table, Medium Size, Small Occupancy, Fast Speed.
