〔SKR〕Linear Module

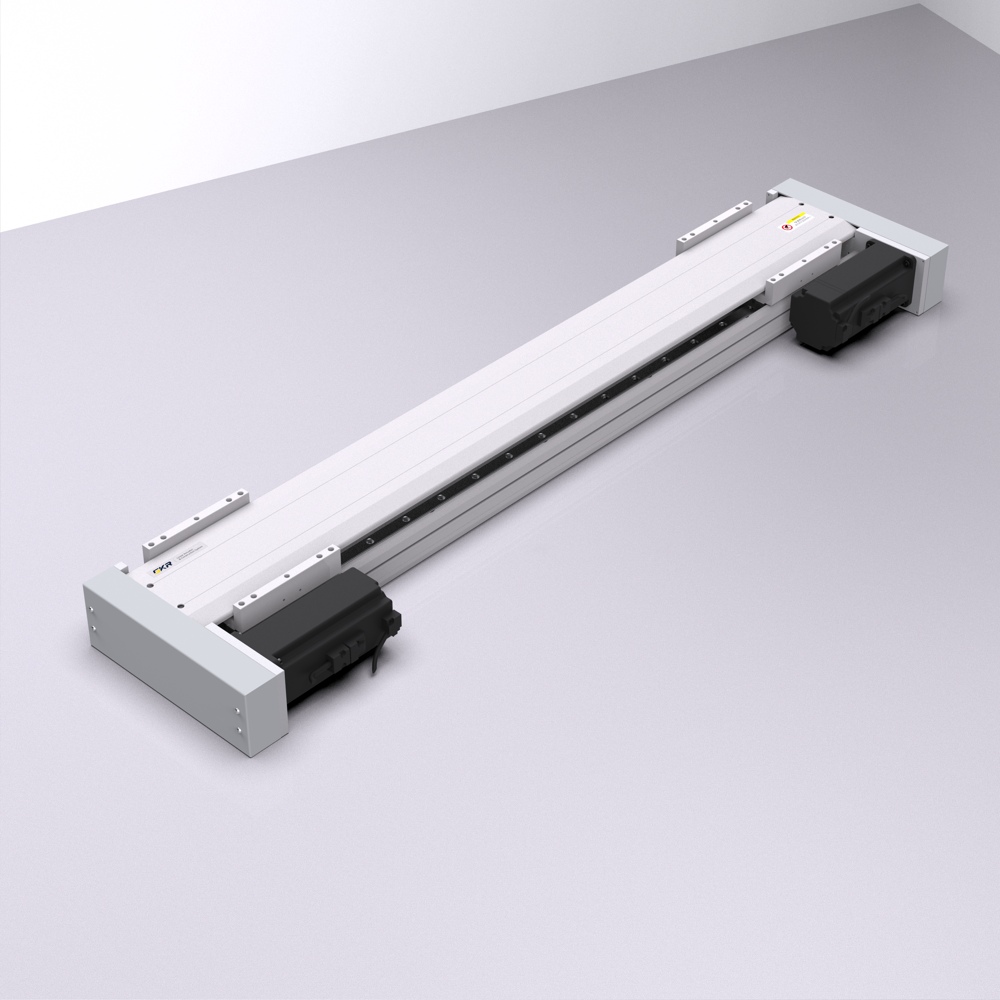

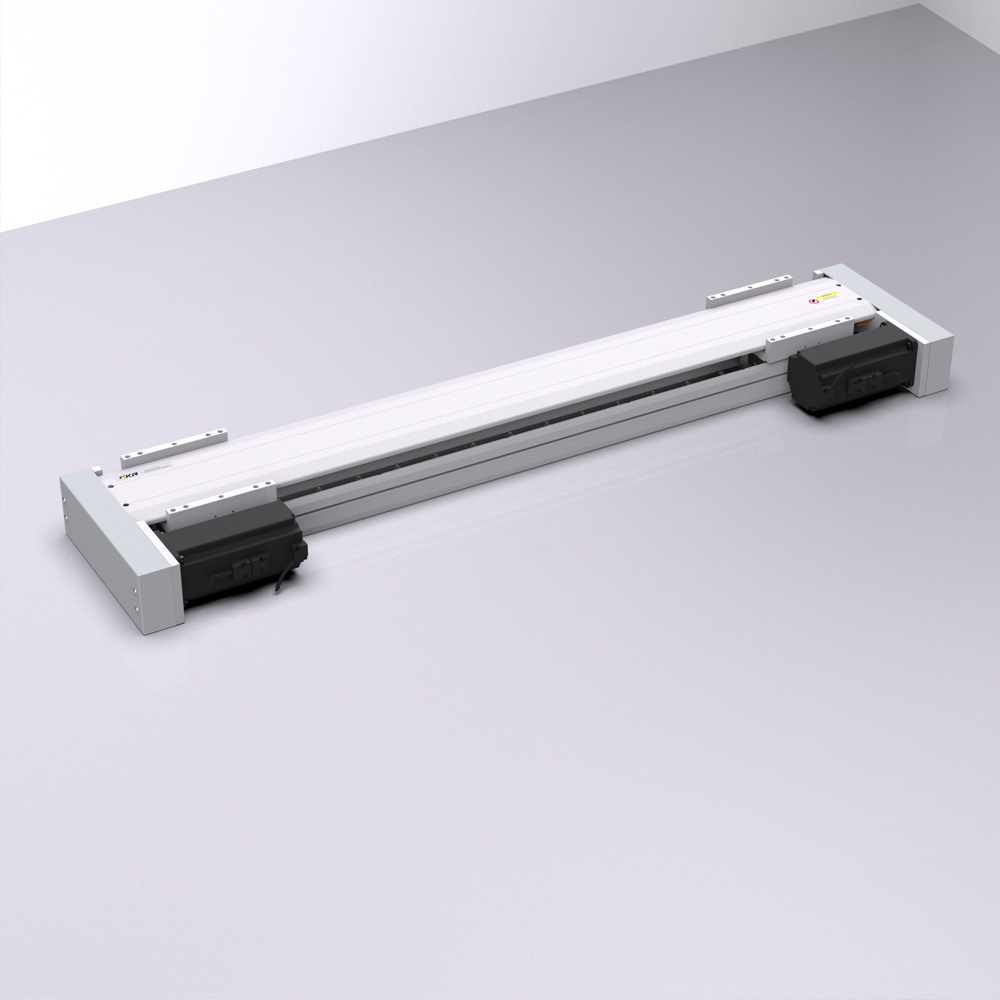

PPS170 Dual-drive Series, Brand New Ball Screw Type Slide Table Module

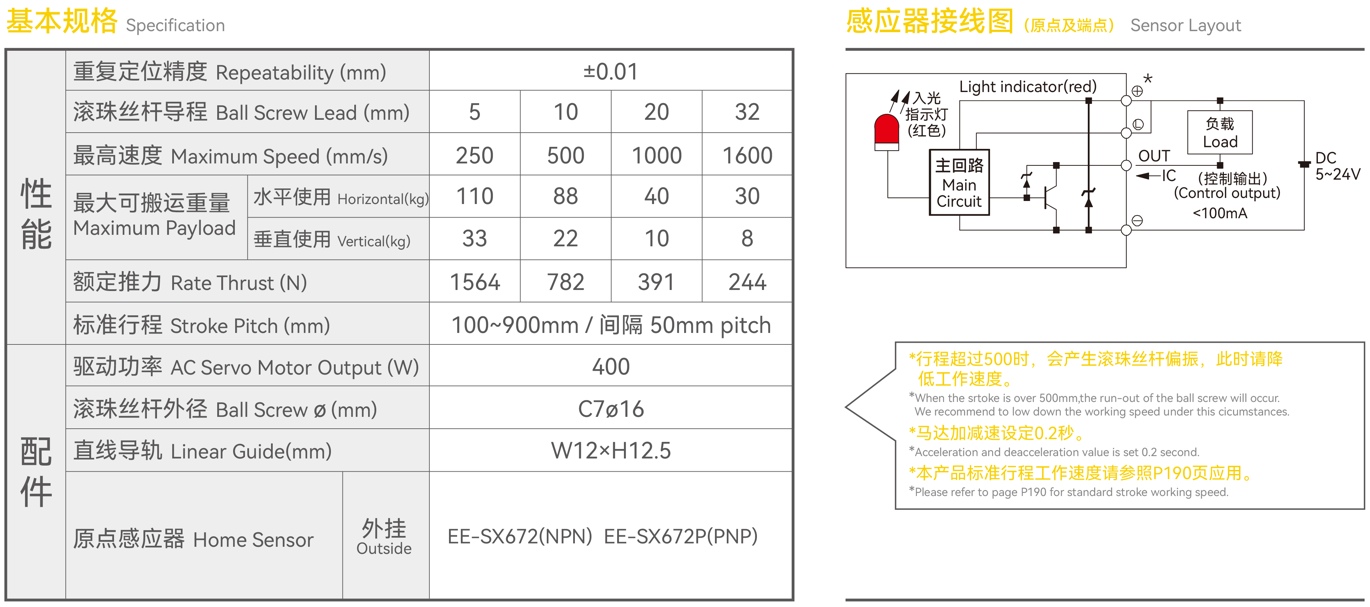

Built-in double screw, dual-drive motor product. Width is 170mm- Repeatability±0.01mm
- Ball Screw øC7ø16-2pcs
- Ball Screw Lead5mm/10mm/20mm/32mm

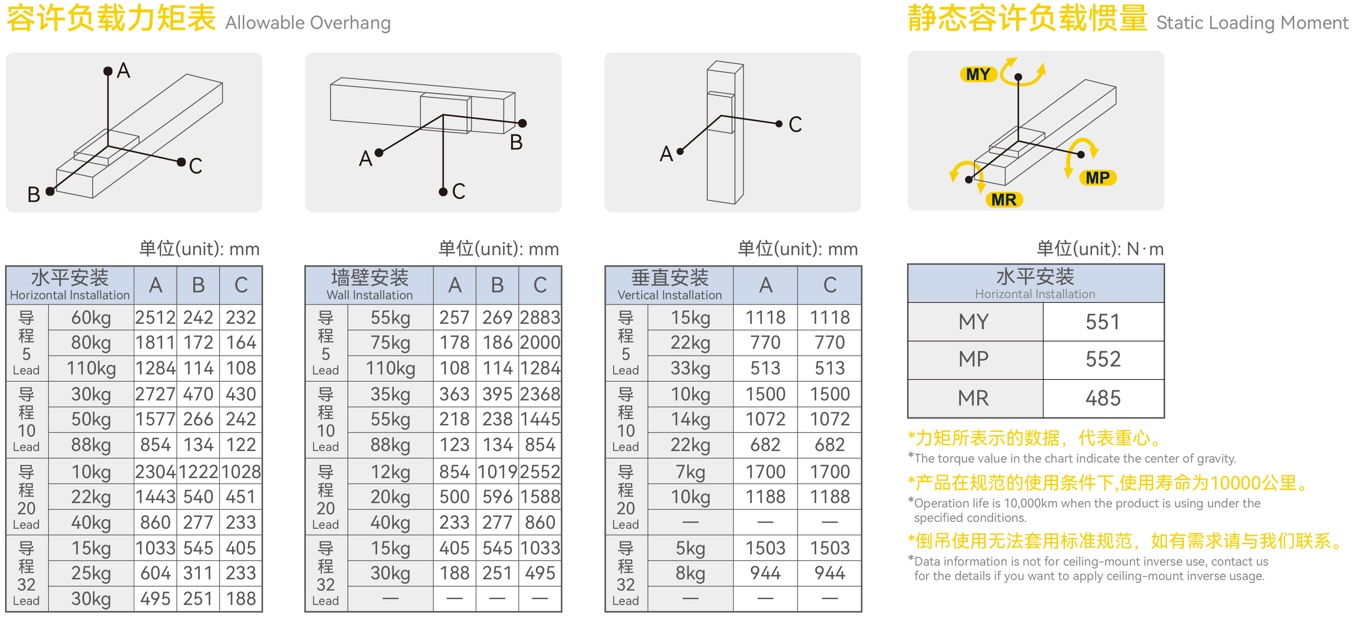

- Horizontal Handling Weight110kg/88kg/40kg/30kg
- Vertical Handling Weight33kg/22kg/10kg/8kg
- Linear Guide Model20×15-2pcs

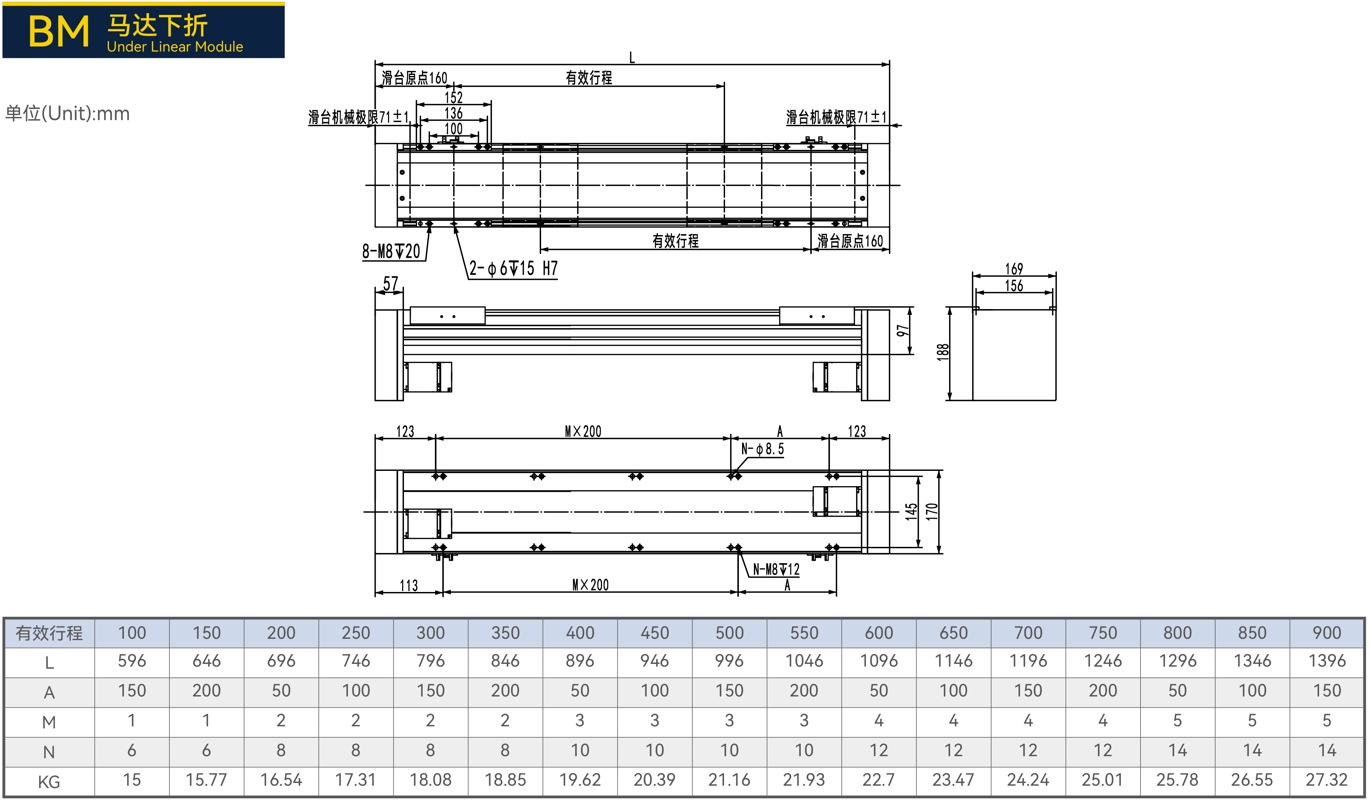

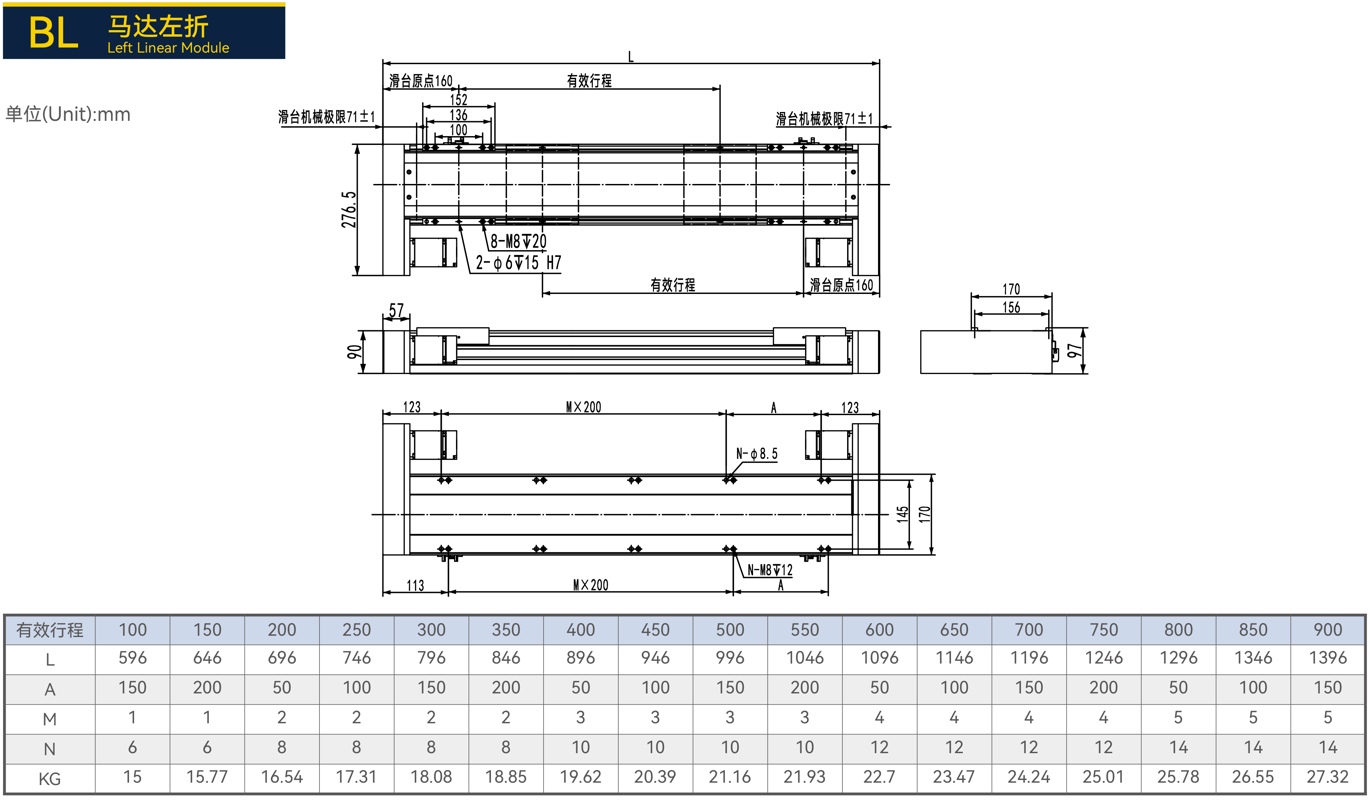

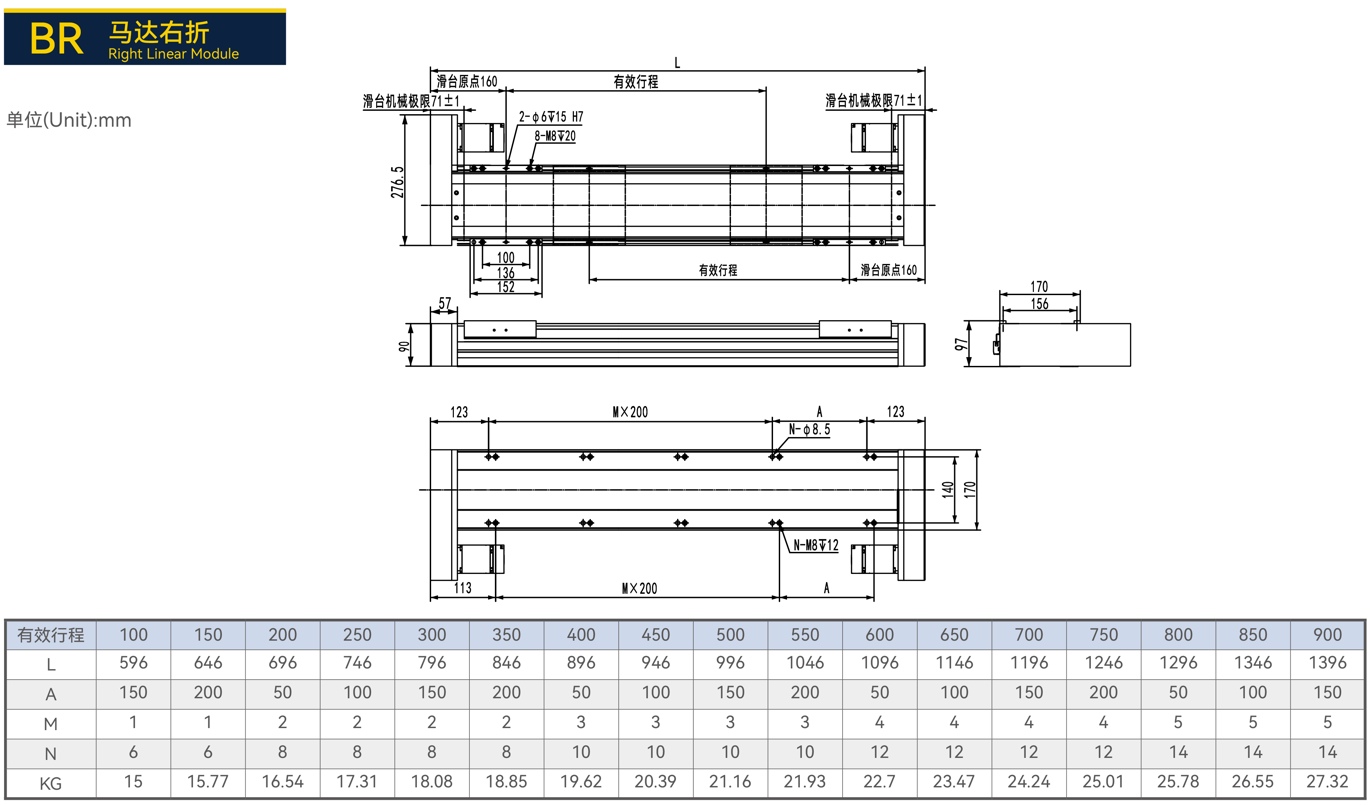

- Body Size Reference Width:170mm， Height:97mm

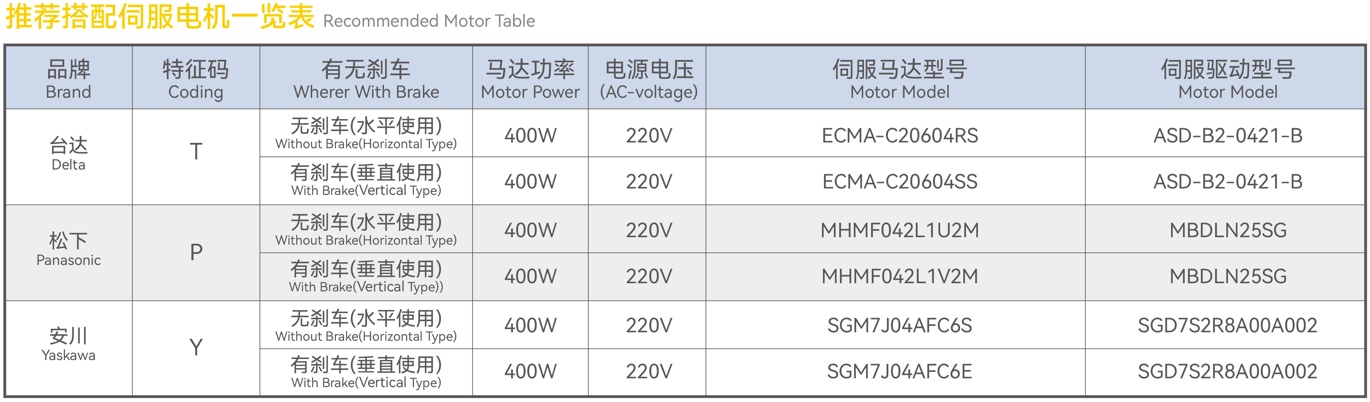

- Drive Specification400W/3000r·min/1.27N·m
- Standard Stroke100~900mm(Interval 50mm)
Product Data Download
Product Description
Product Features
Built-in double screw, supports asynchronous operation. More flexible usage! Load level is the same as PSS140 single-axis.
