〔SKR〕Linear Module

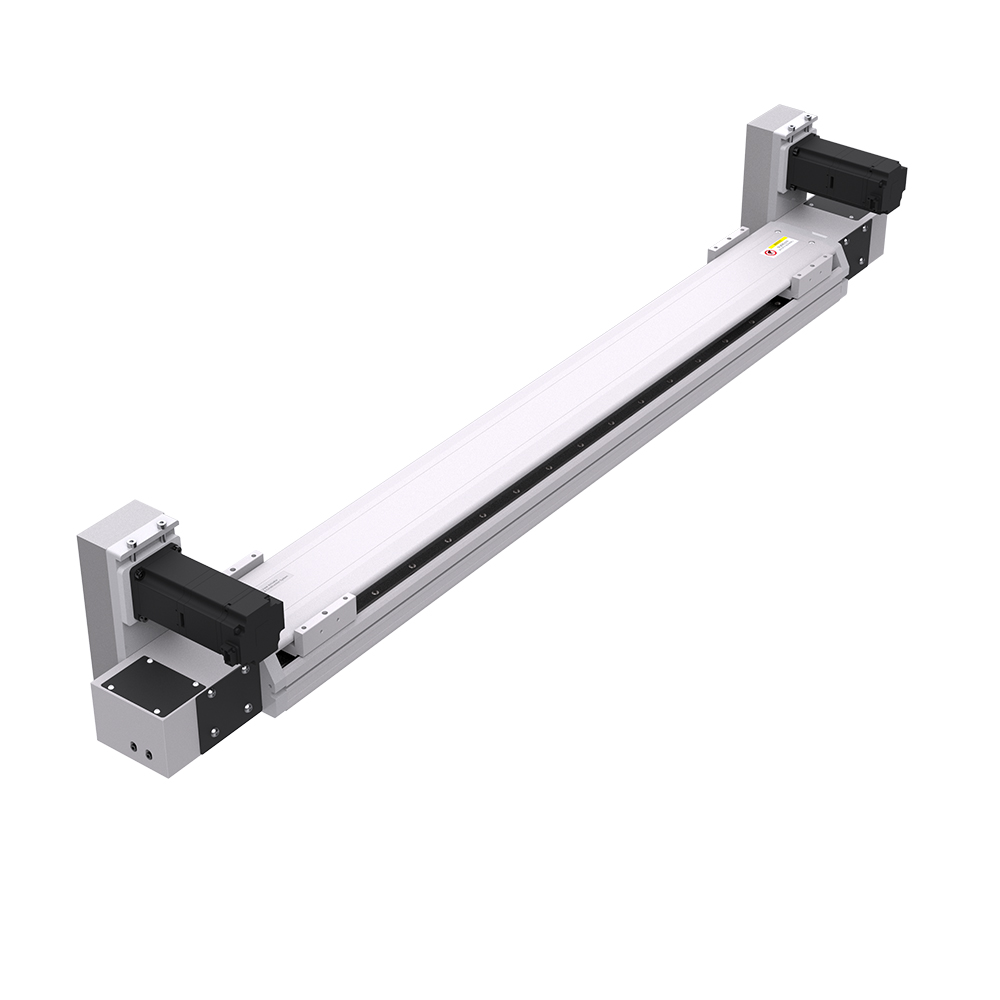

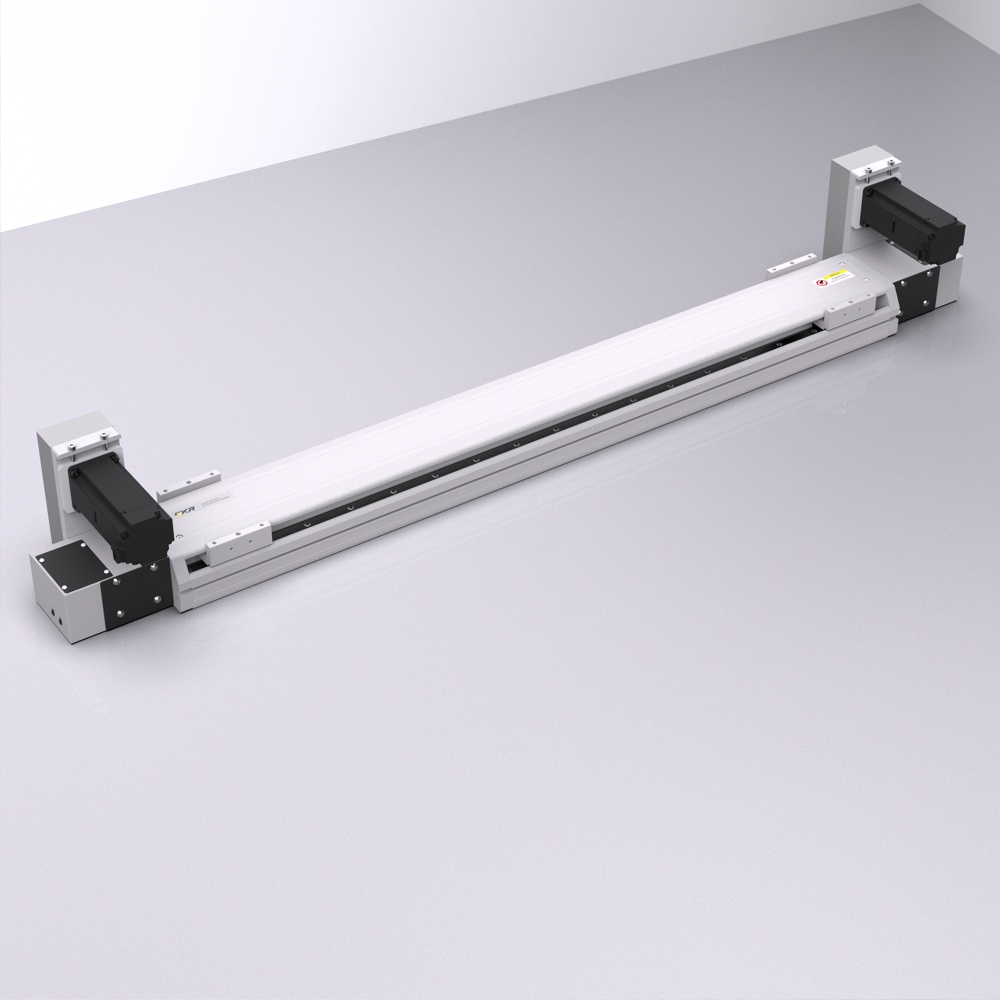

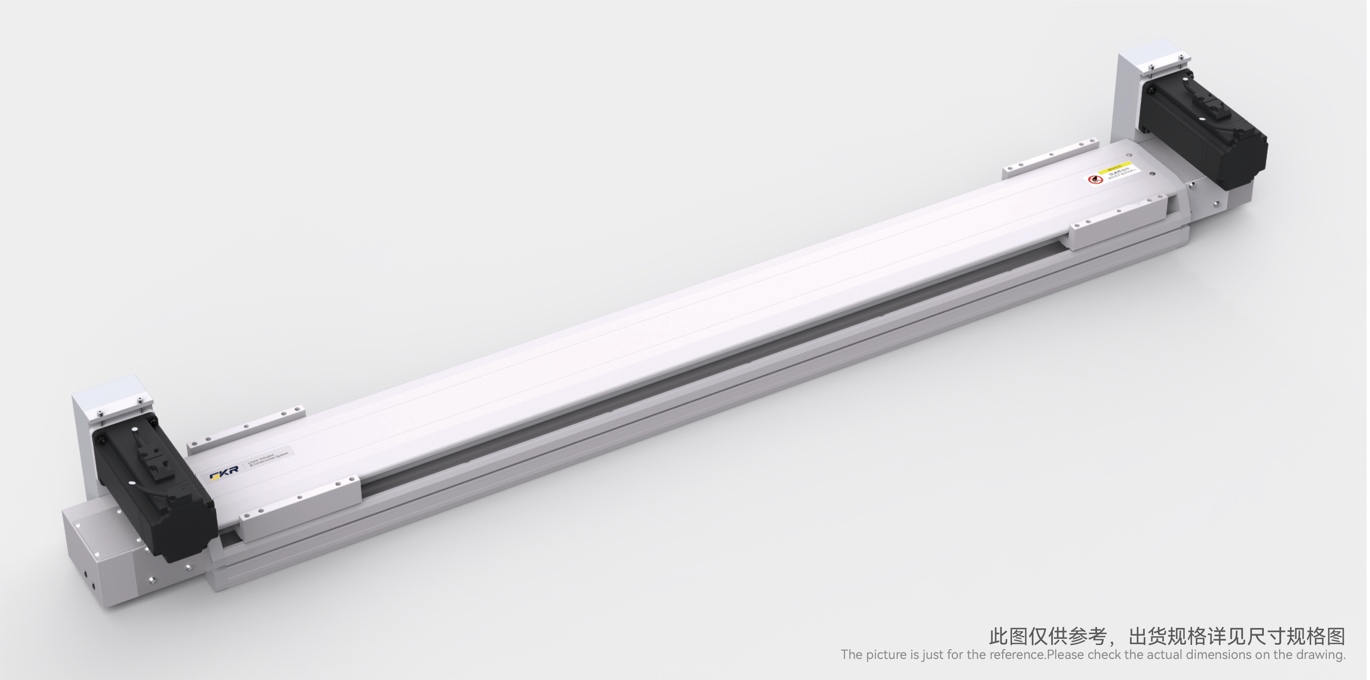

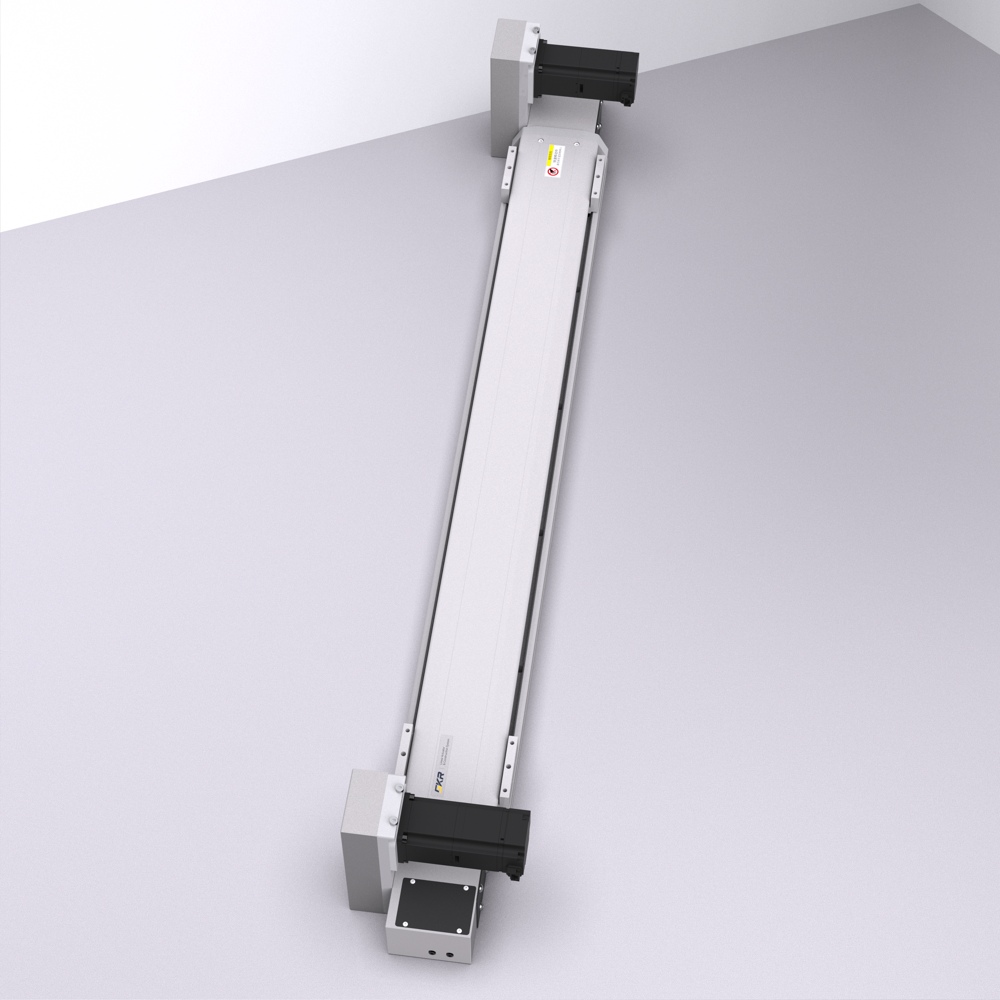

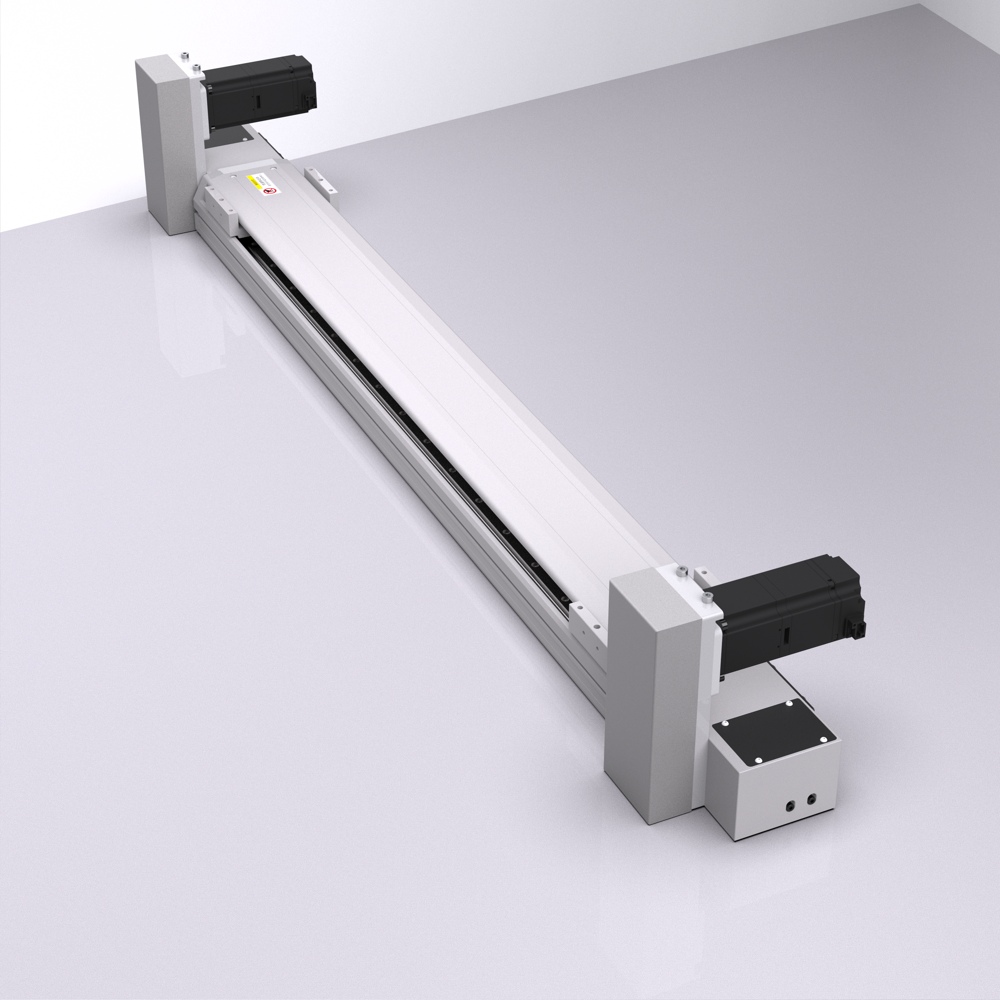

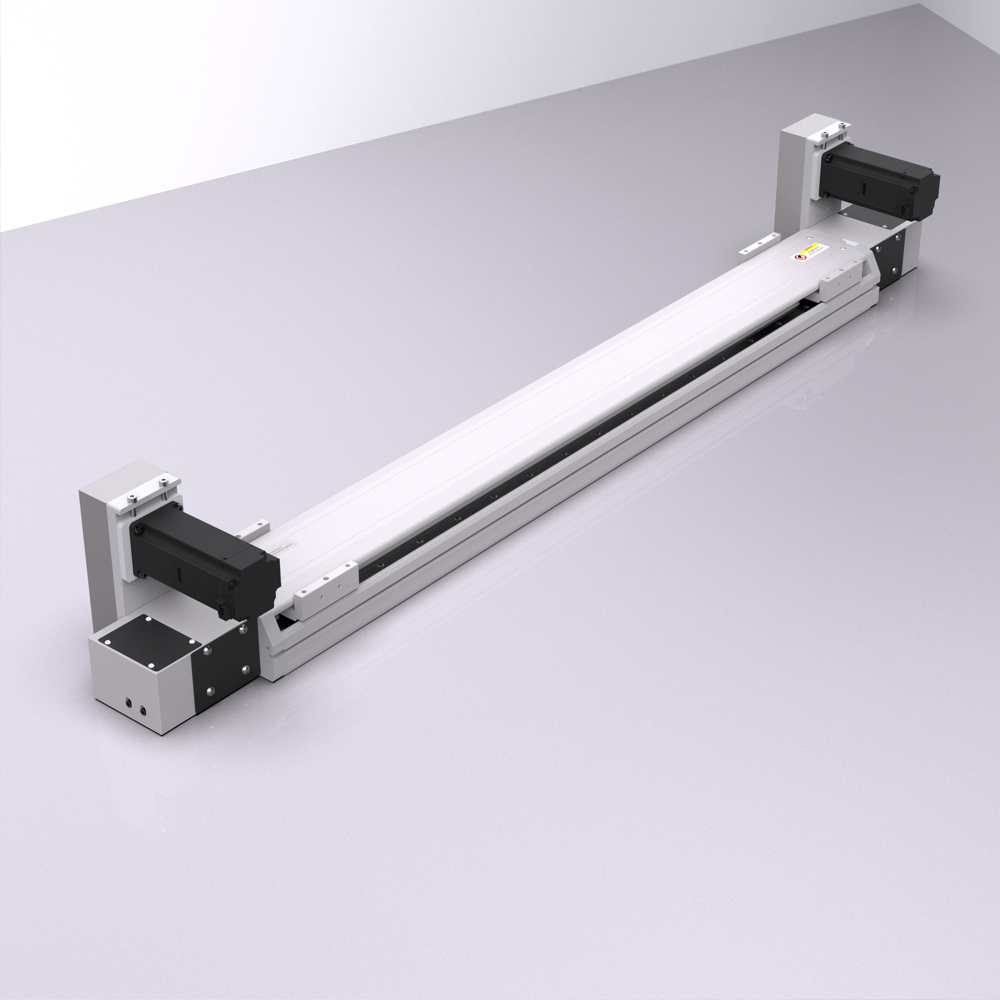

PPB170 Series, Dual-drive Asynchronous Synchronous Belt Semi-closed Module

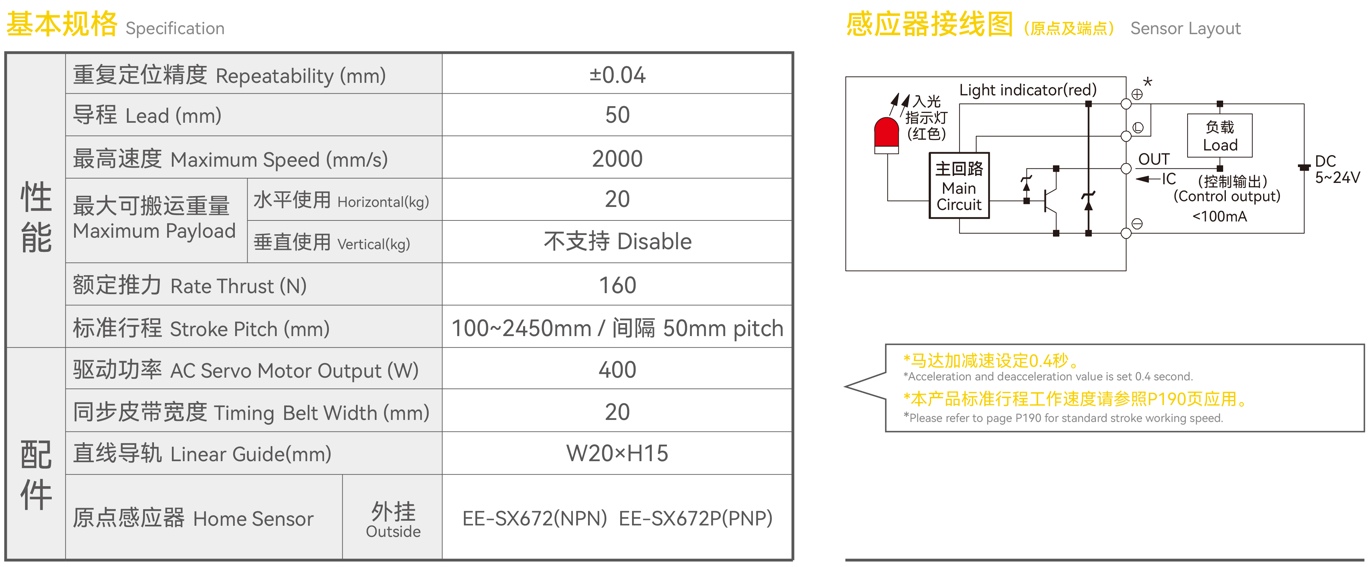

Dual-drive asynchronous, synchronous belt slide table. High-speed multi-purpose.- Repeatability±0.04mm
- Synchronous Belt Diameter20mm-2pcs
- Lead50mm
- Horizontal Handling Weight20kg
- Vertical Handling WeightThis series is not supported
- Linear Guide Model20×15-2pcs
- Body Size Reference Width:170mm， Height:97mm

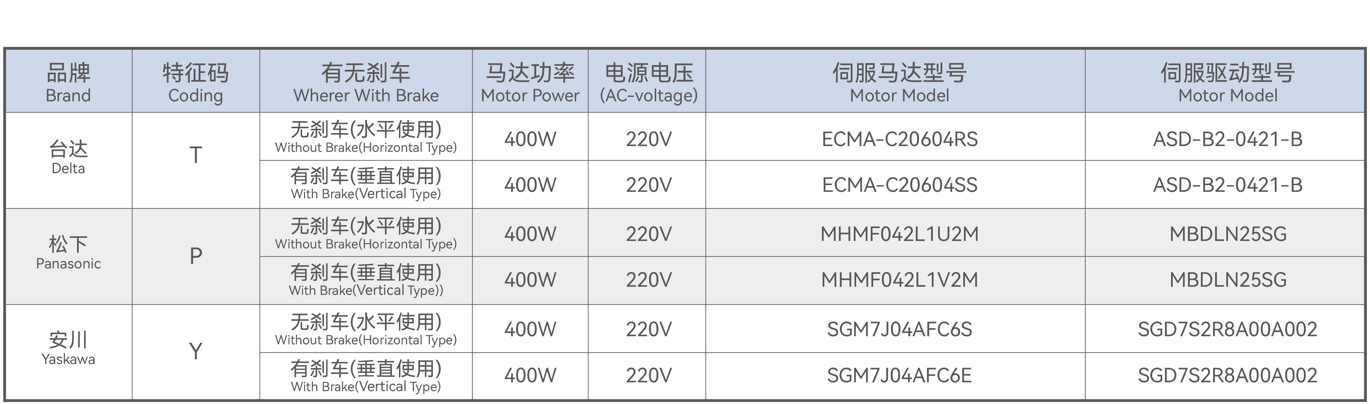

- Drive Specification400W/3000r·min/1.27N·m
- Standard Stroke100~2450mm(Interval 50mm)
Product Data Download
Product Description
