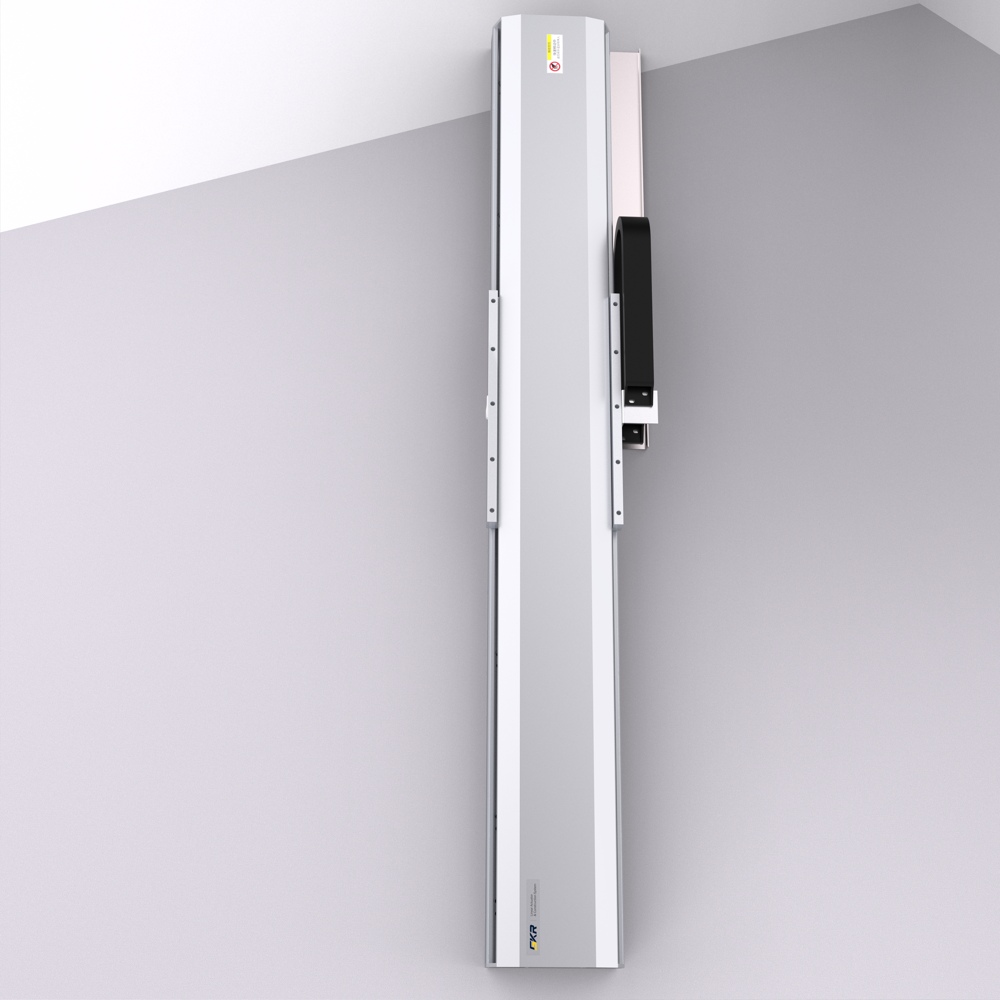

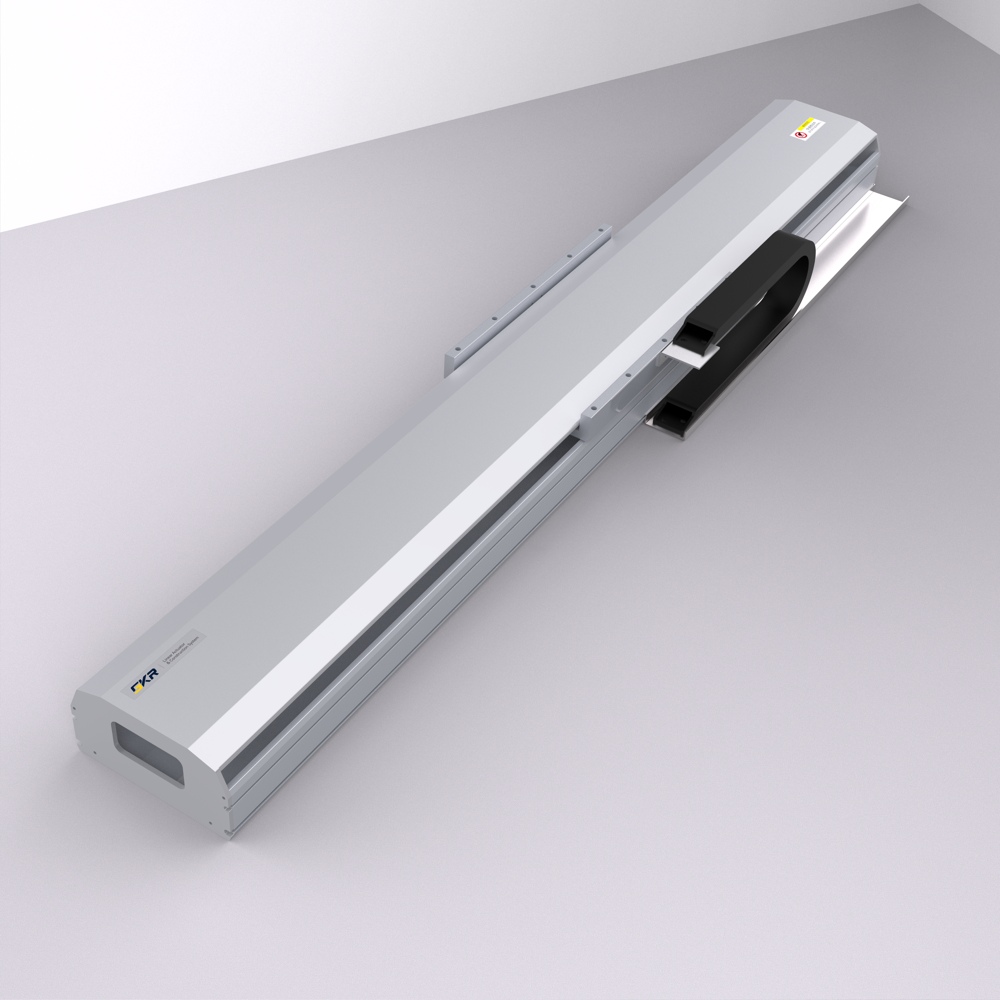

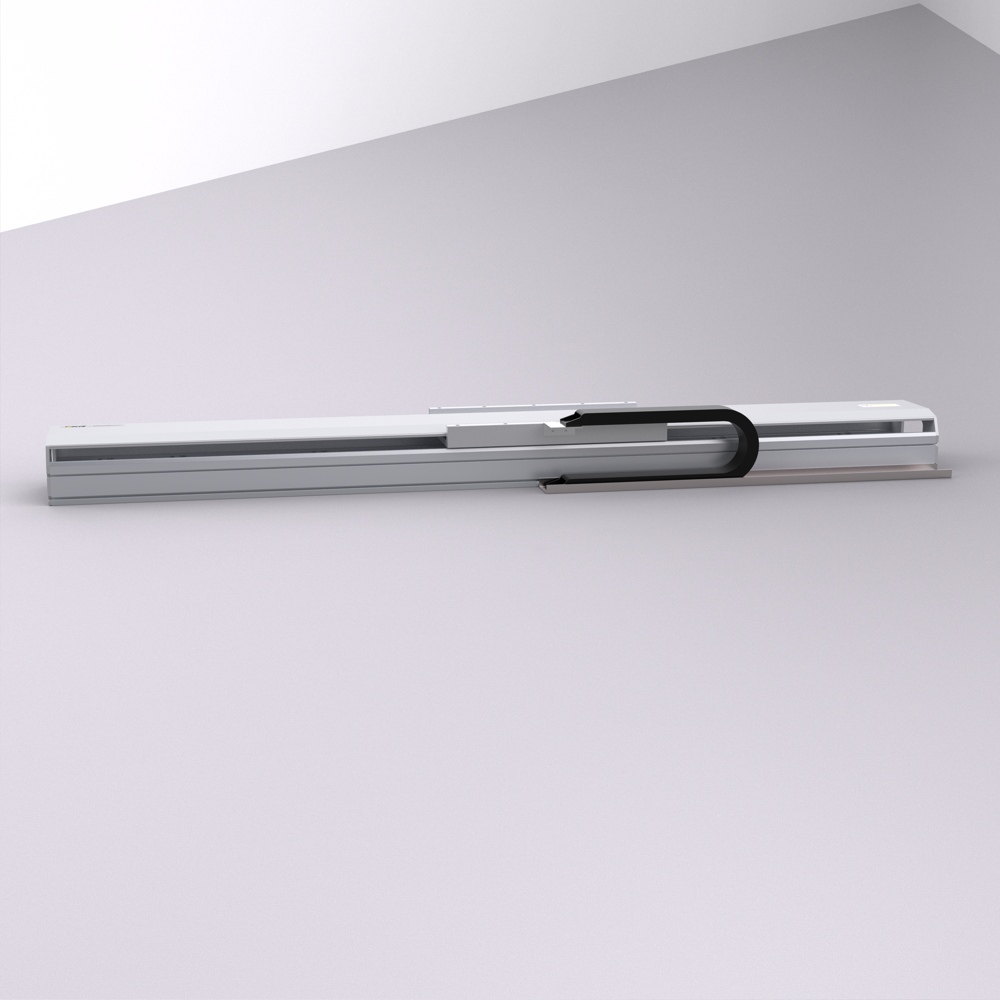

〔SKR〕Linear Module

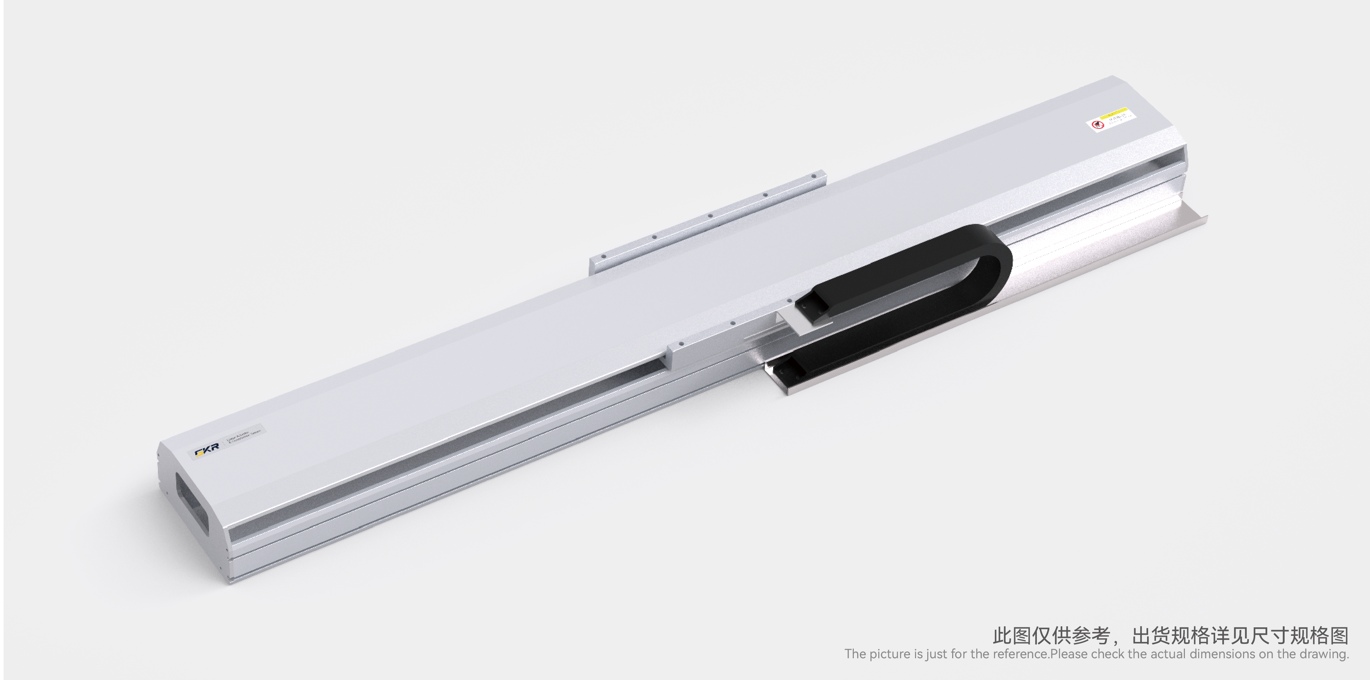

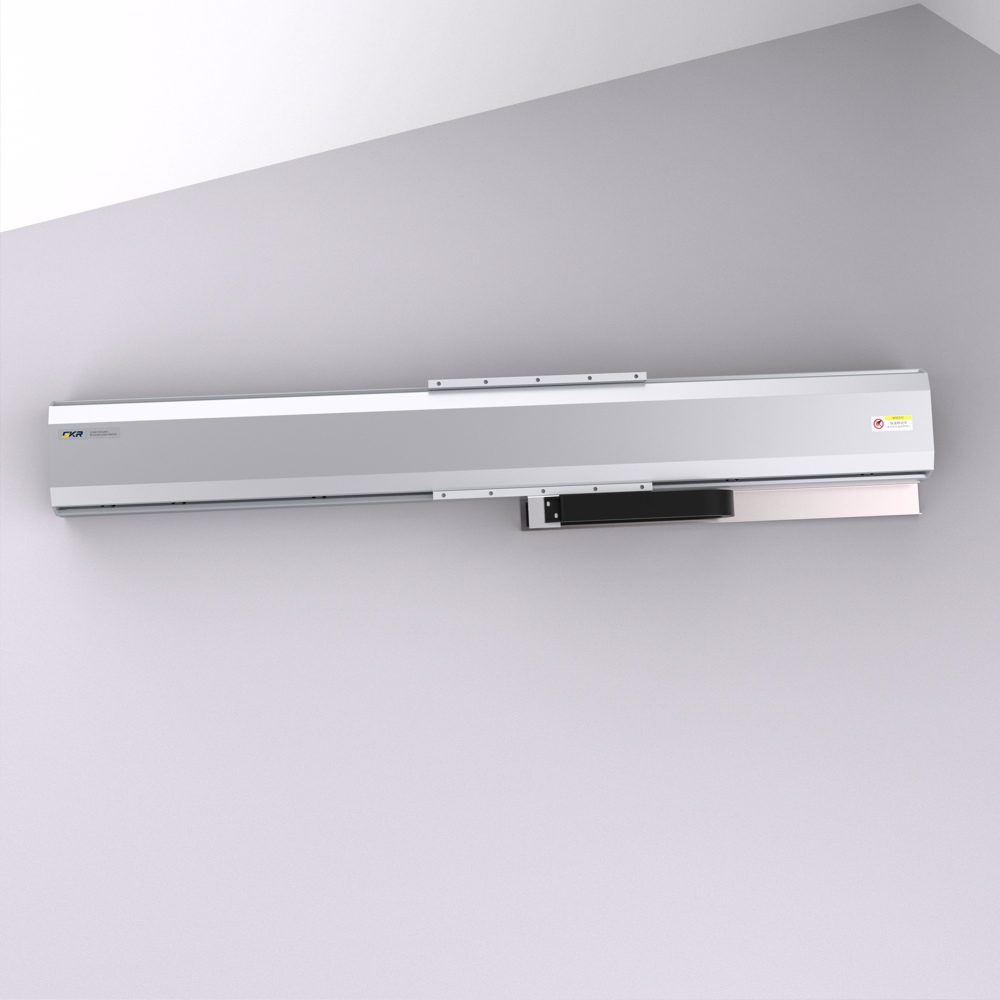

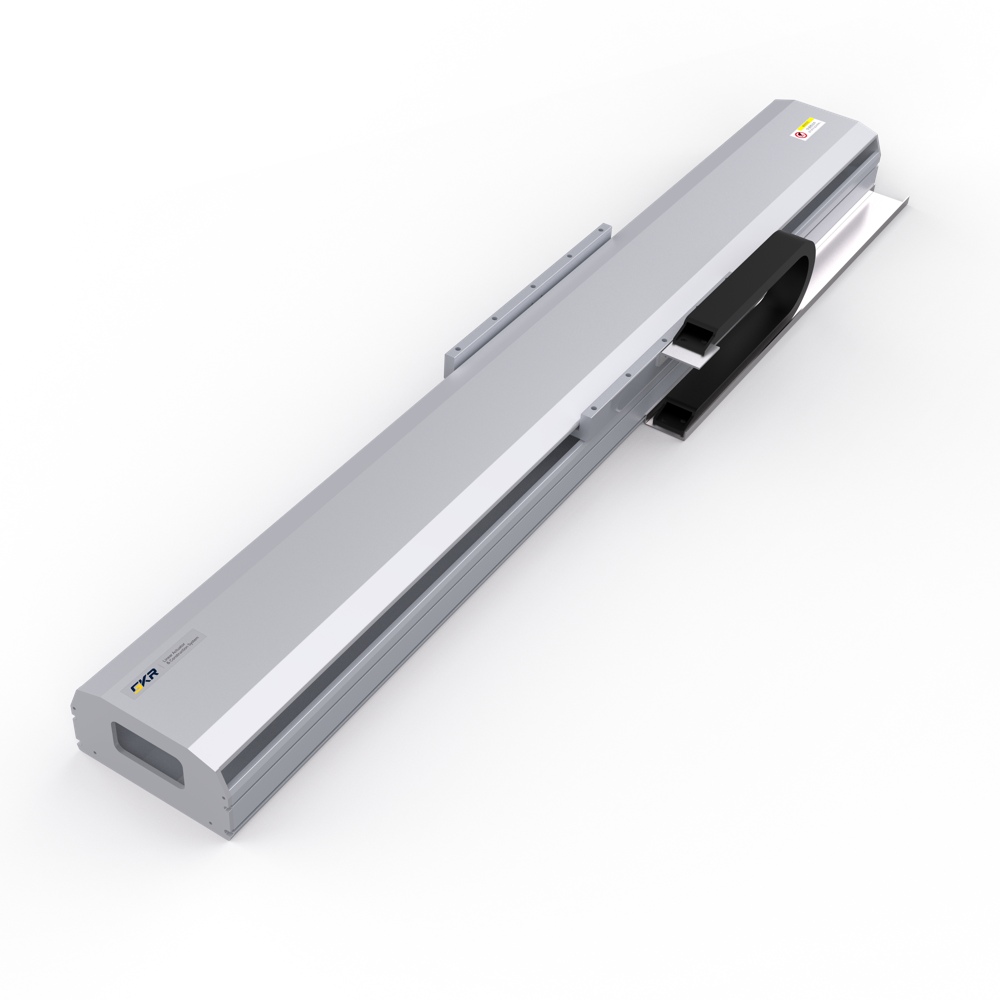

SKR22S series · linear motor

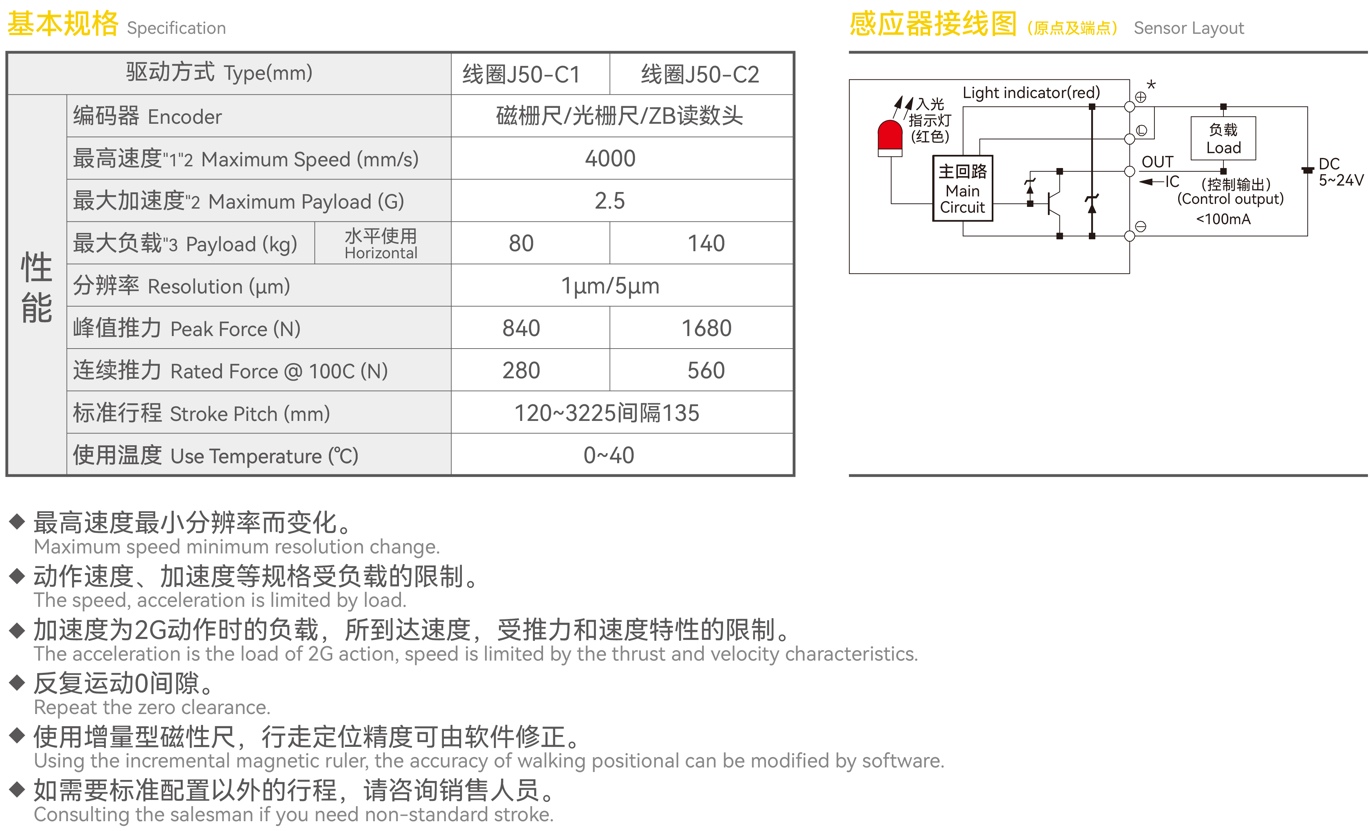

To the largest specification linear motor slide table.- Repeatability±0.002mm
- Continuous thrust performance280/560/N
- Peak thrust performance840/1680/N
- Maximum working speed4000mm/s
- Horizontal Handling Weight80kg/140kg

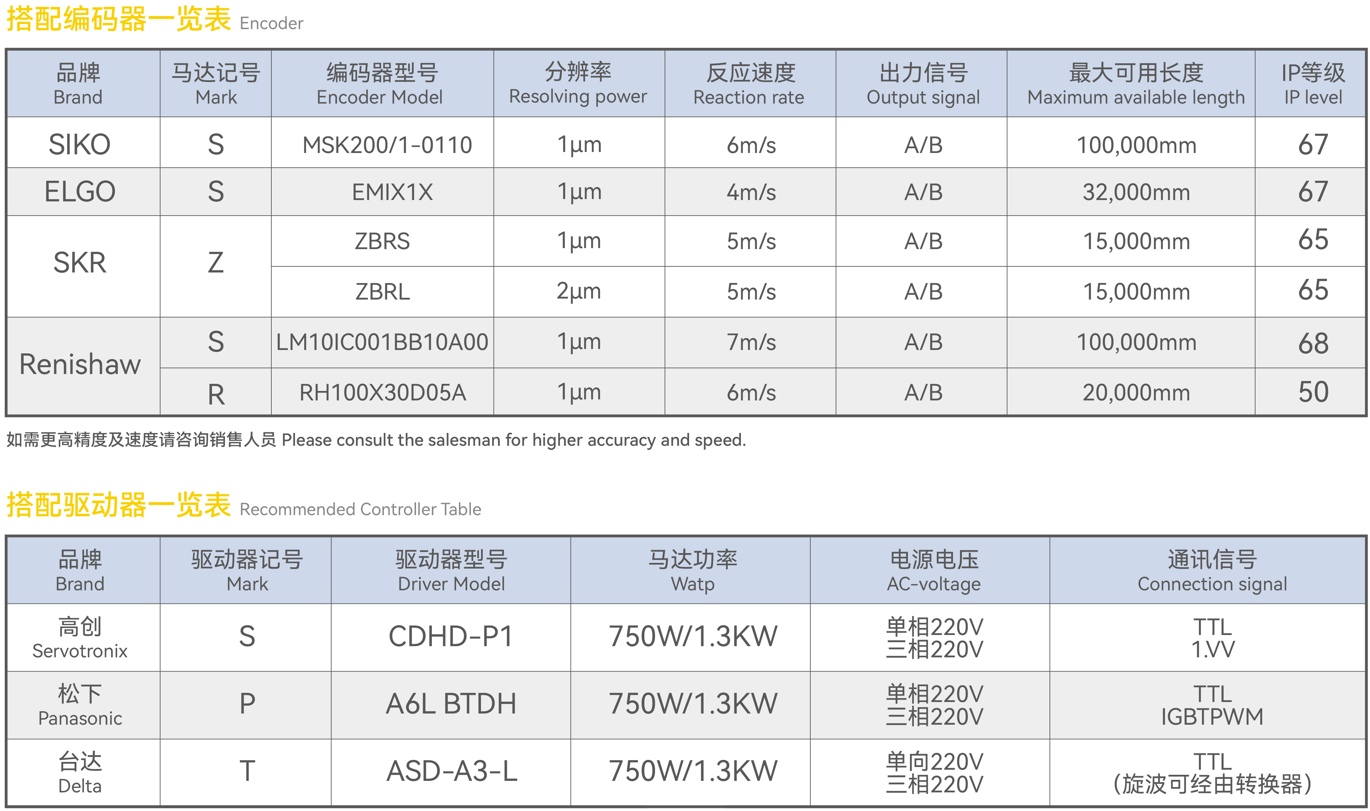

- Encoder resolution1μm/5μm
- Linear Guide Model23×18-2pcs

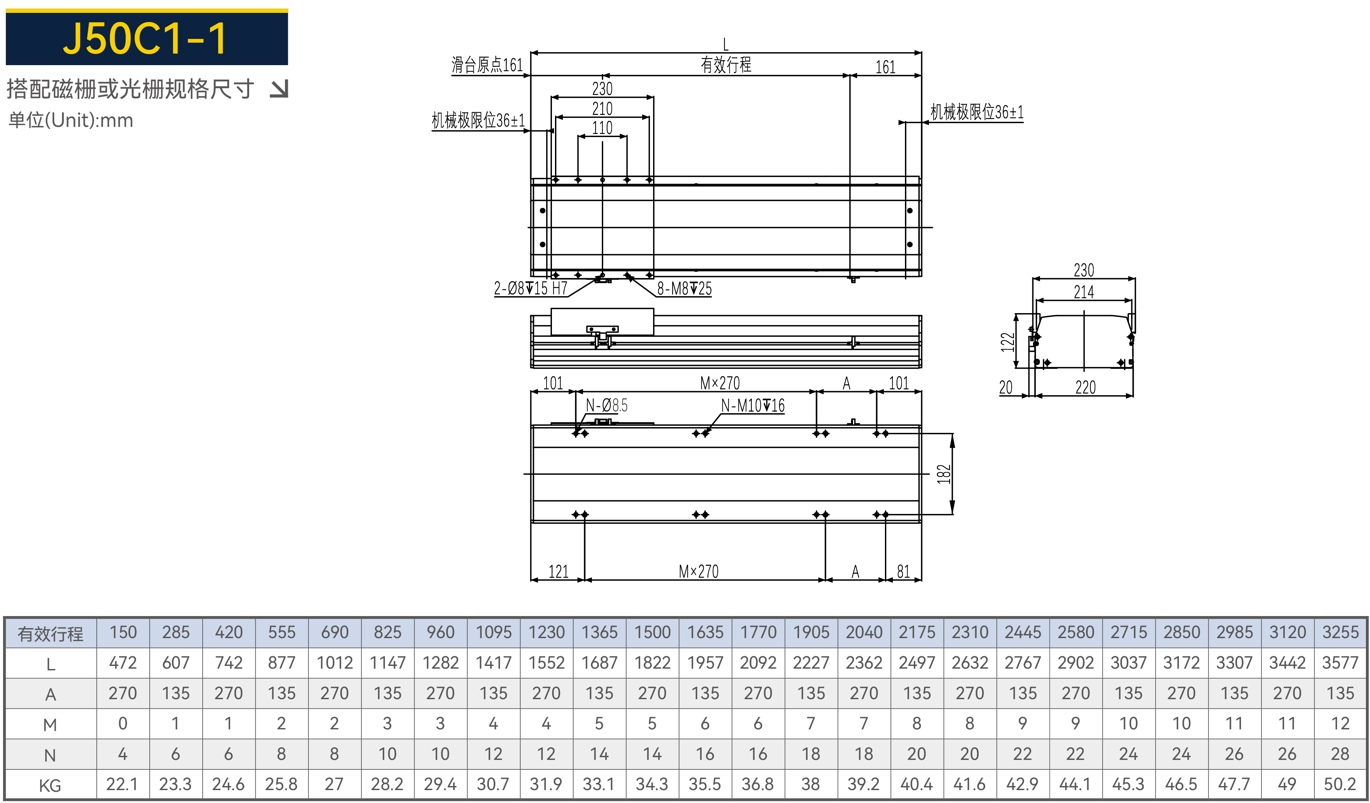

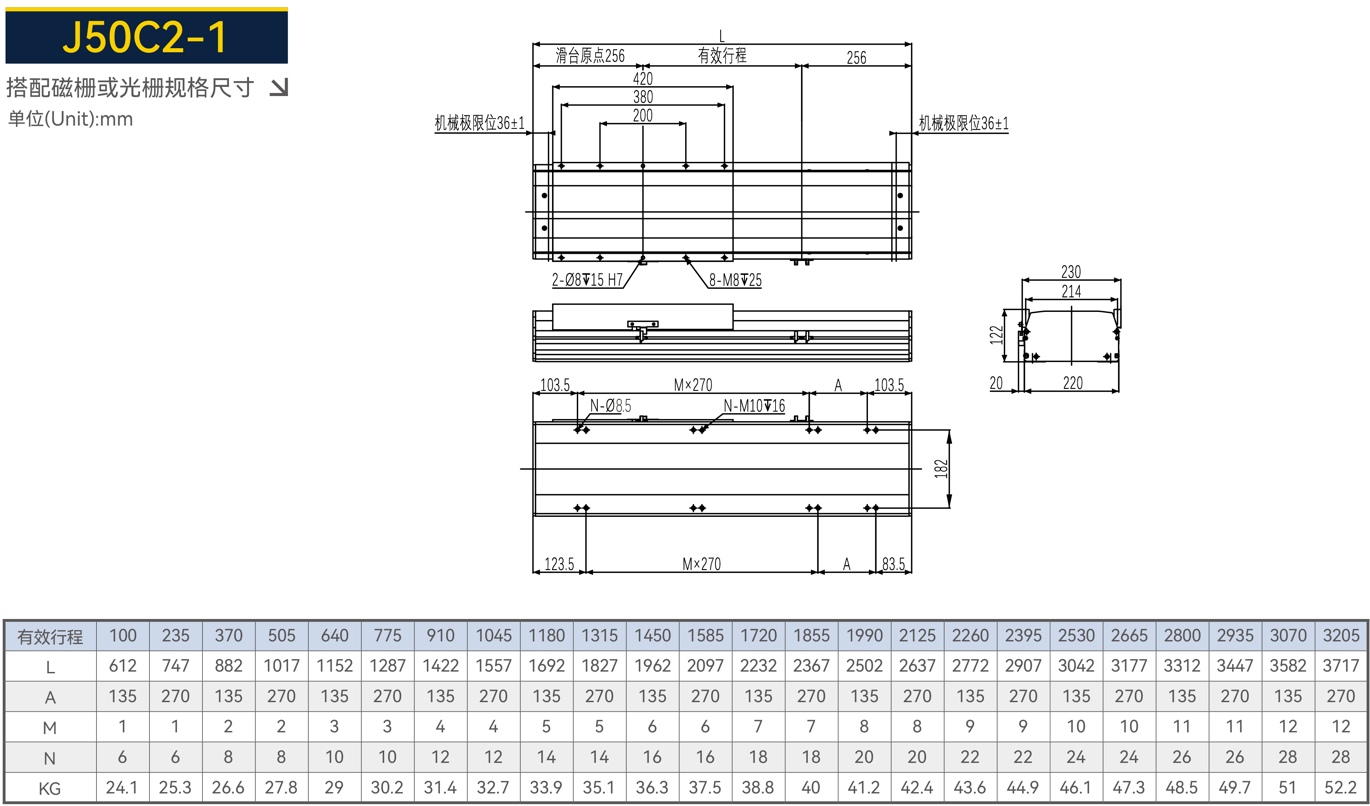

- Body Size Reference Width:220mm，Body Height:122mm
- Drive Specification750W/1300W
- Standard Stroke120~3225(Interval 135mm)
Product Data Download
