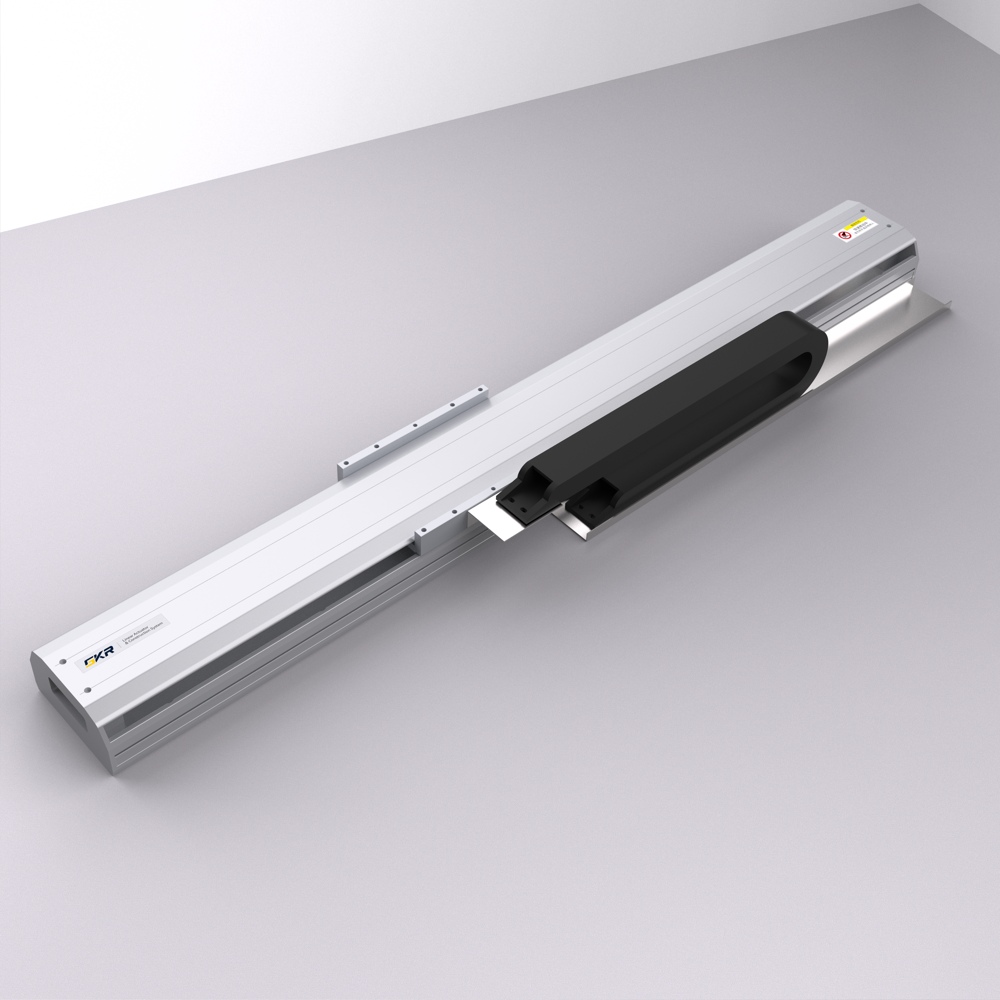

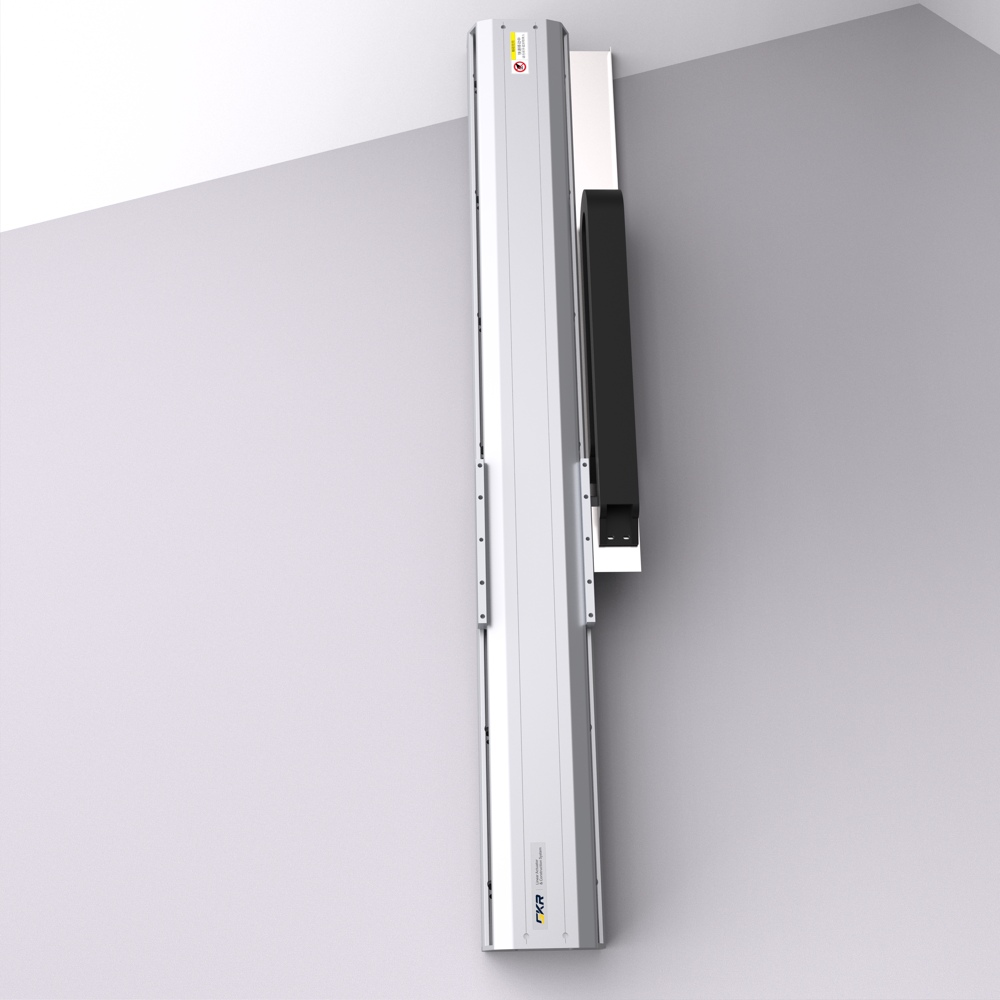

〔SKR〕Linear Module

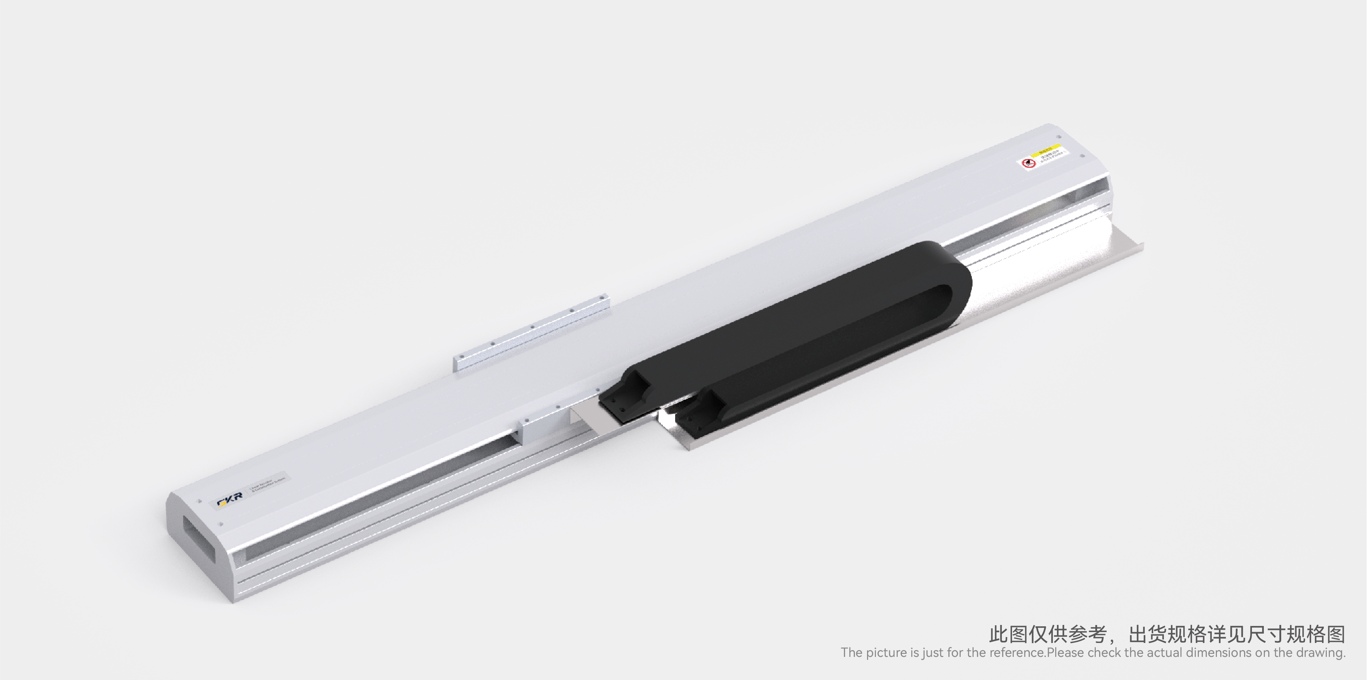

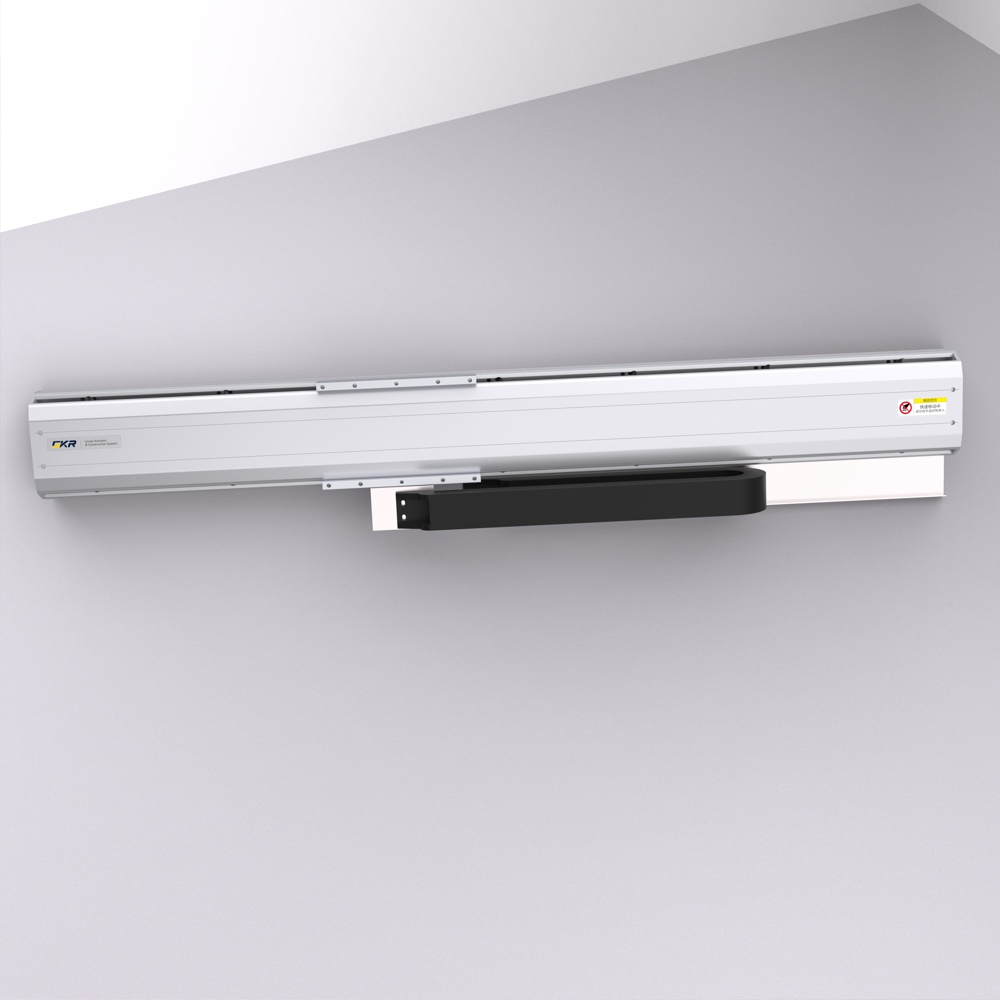

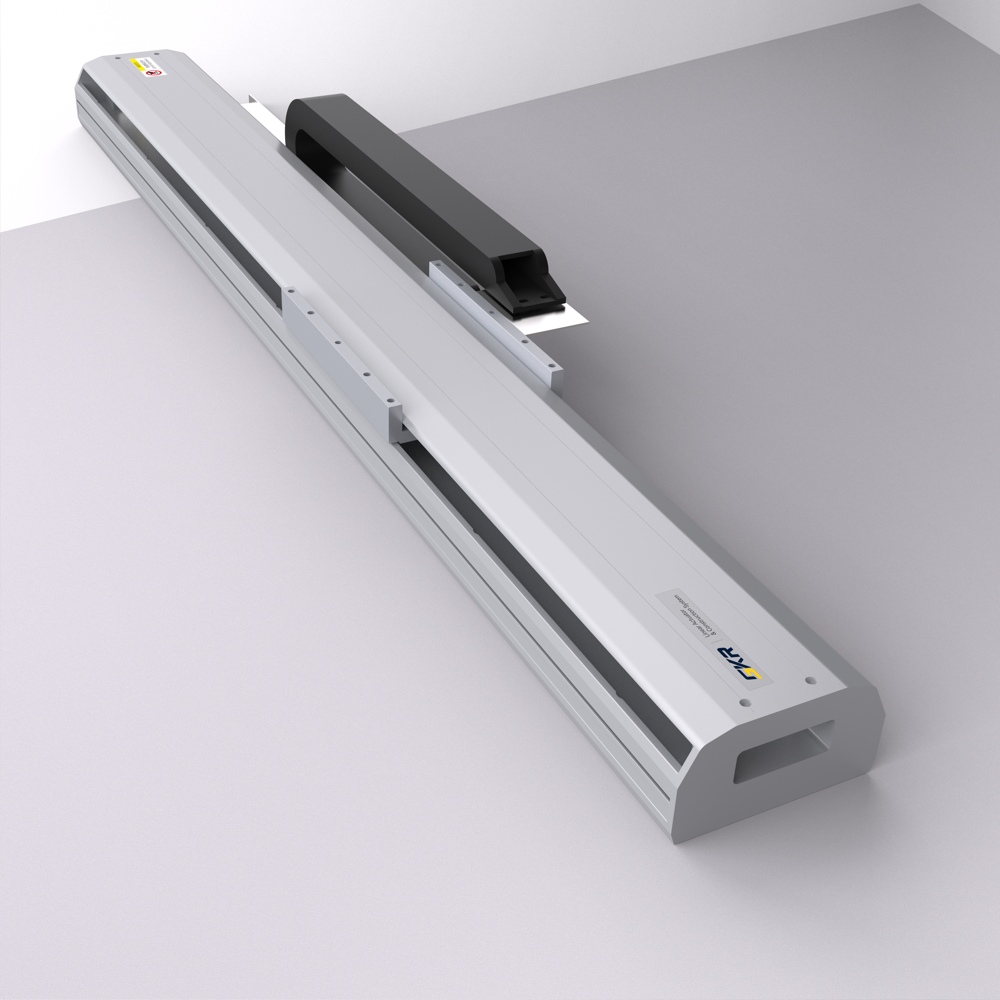

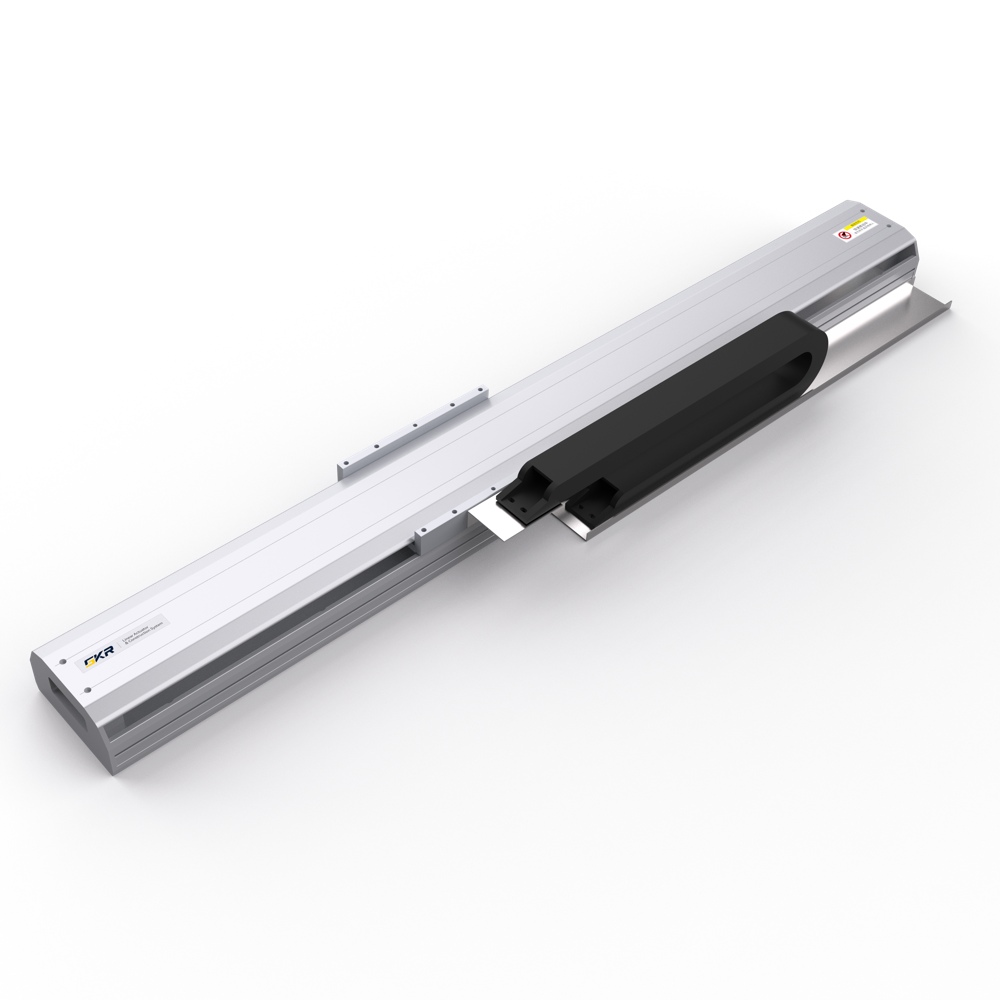

SKR17S series · linear motor

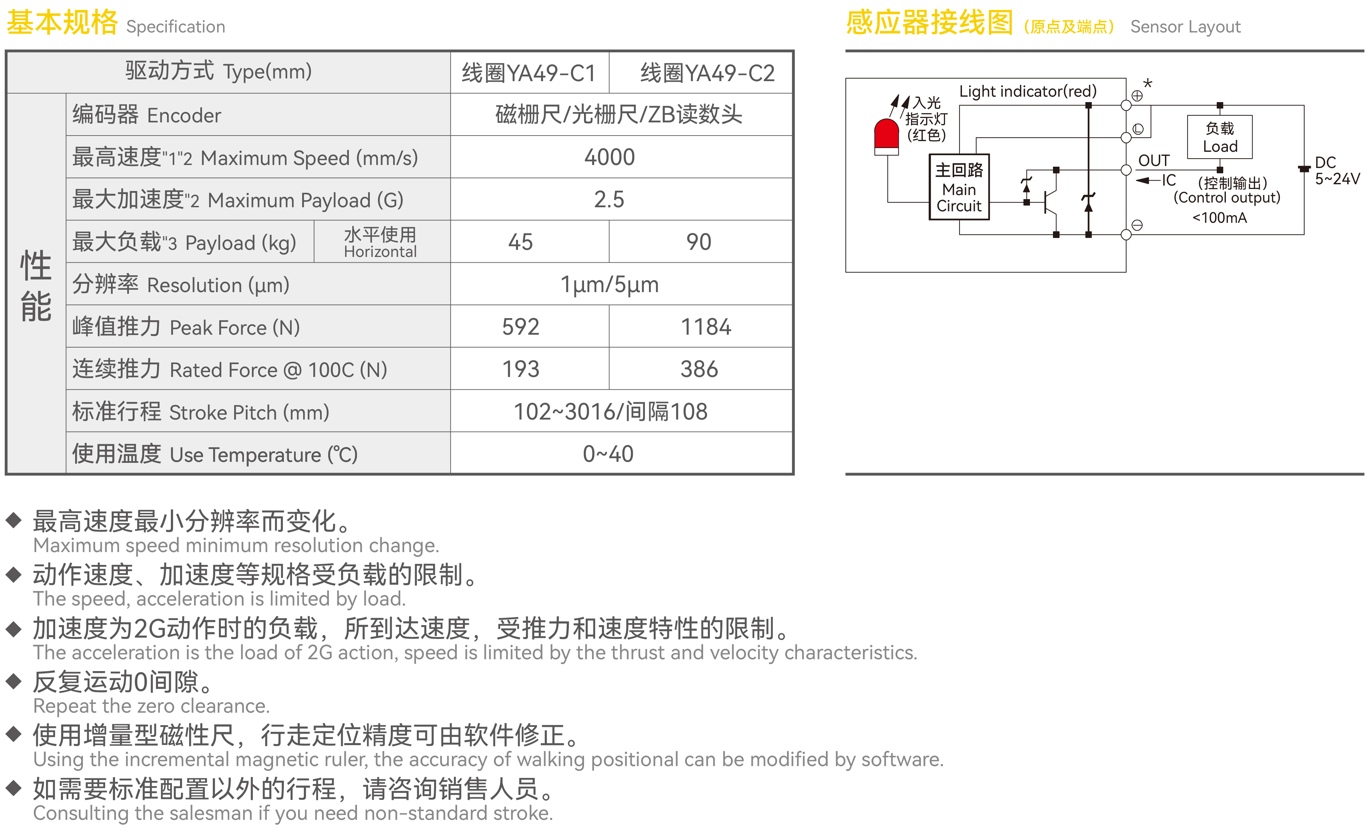

Large specification linear motor, upgraded version of SKR17.- Repeatability±0.002mm
- Continuous thrust performance193/386/N
- Peak thrust performance592/1184/N
- Maximum working speed4000mm/s
- Horizontal Handling Weight45kg/90kg

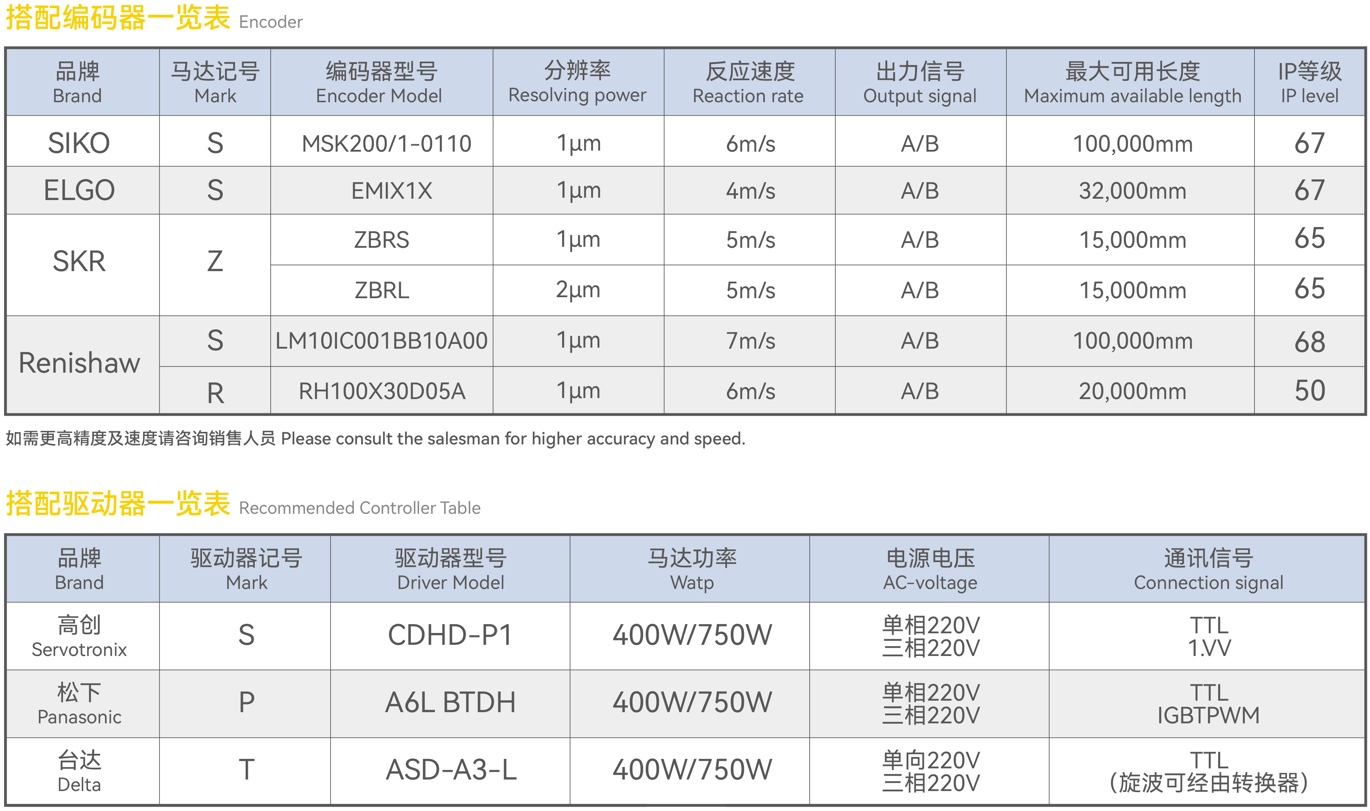

- Encoder resolution1μm/5μm
- Linear Guide Model15×12.5-2pcs

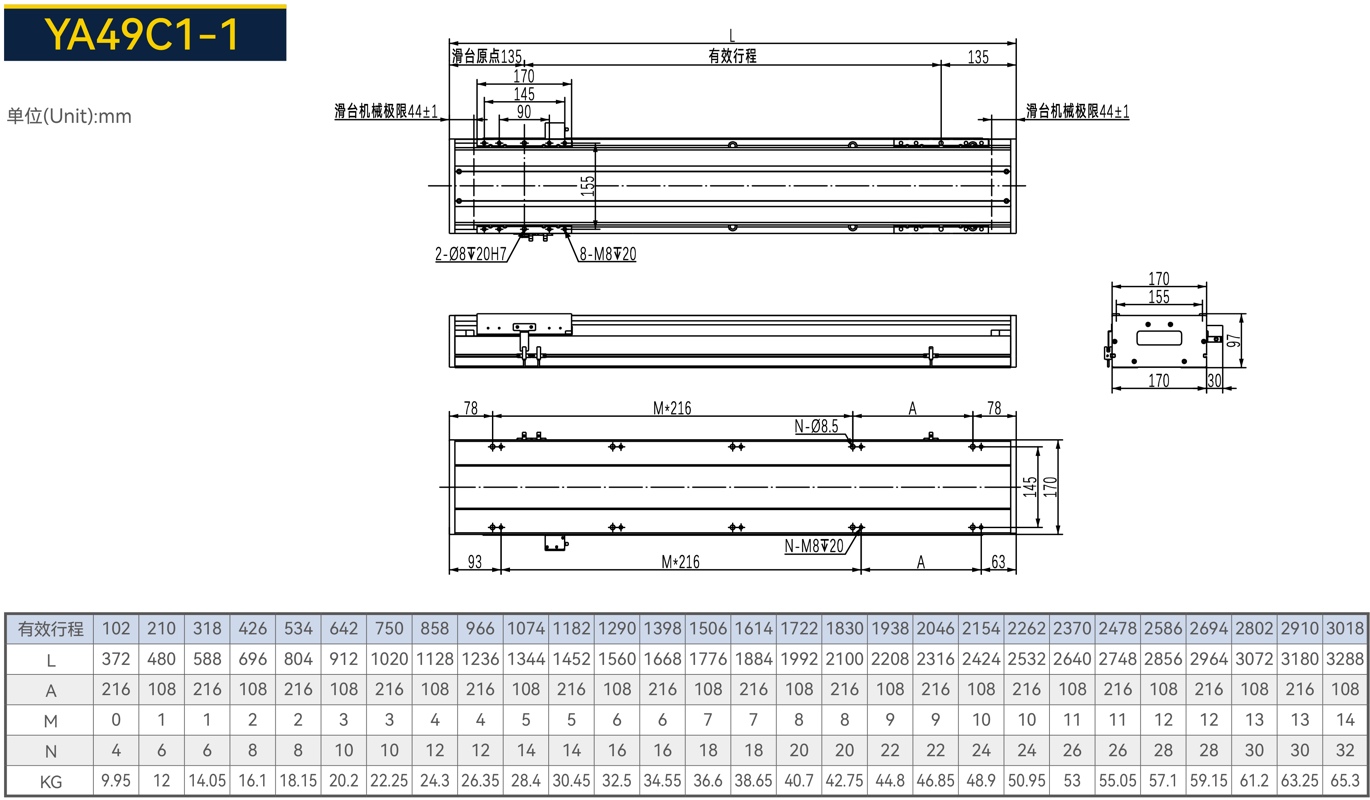

- Body Size Reference Width:170mm，Body Height:97mm
- Drive Specification400W
- Standard Stroke102~2478(Interval 108mm)
Product Data Download
Product Description
