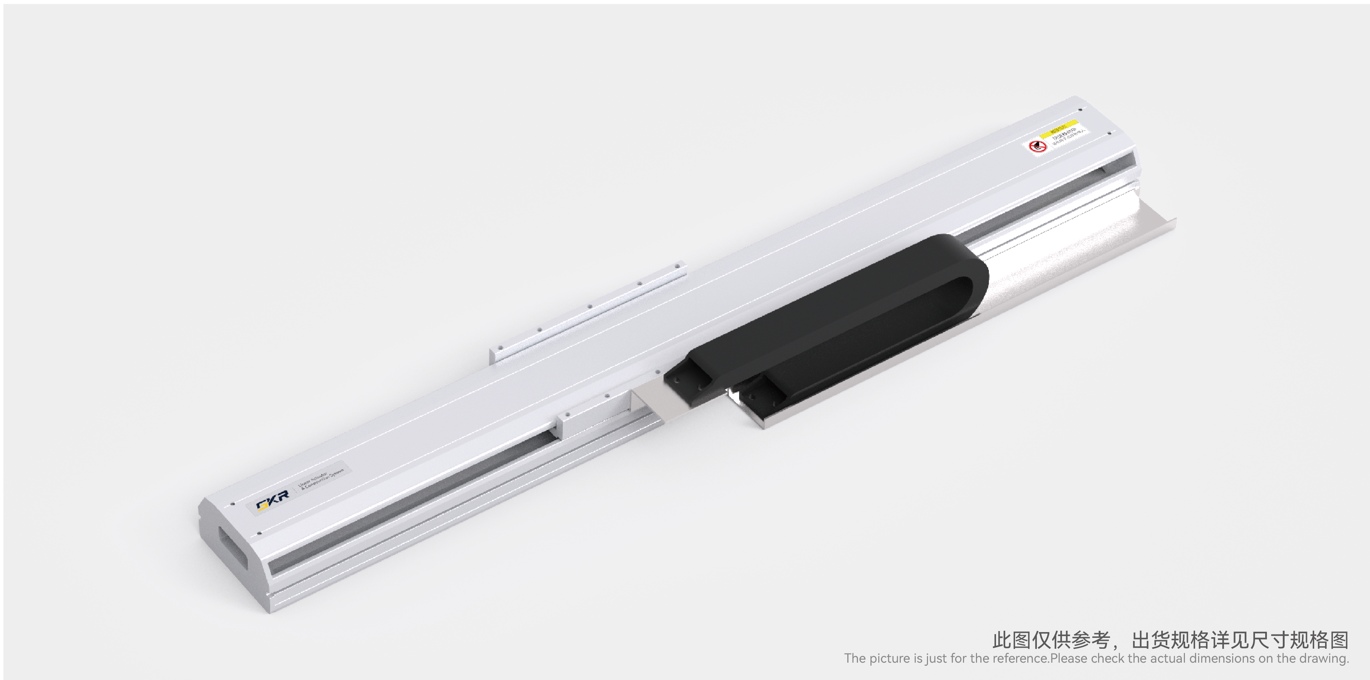

〔SKR〕Linear Module
SKR14S series · linear motor
Medium specification linear upgrade. SKR14 upgraded model.- Repeatability±0.002mm
- Continuous thrust performance137/274/N
- Peak thrust performance405/810/N
- Maximum working speed3000mm/s
- Horizontal Handling Weight30kg/60kg
- Encoder resolution1μm/5μm
- Linear Guide Model15×12.5-2pcs

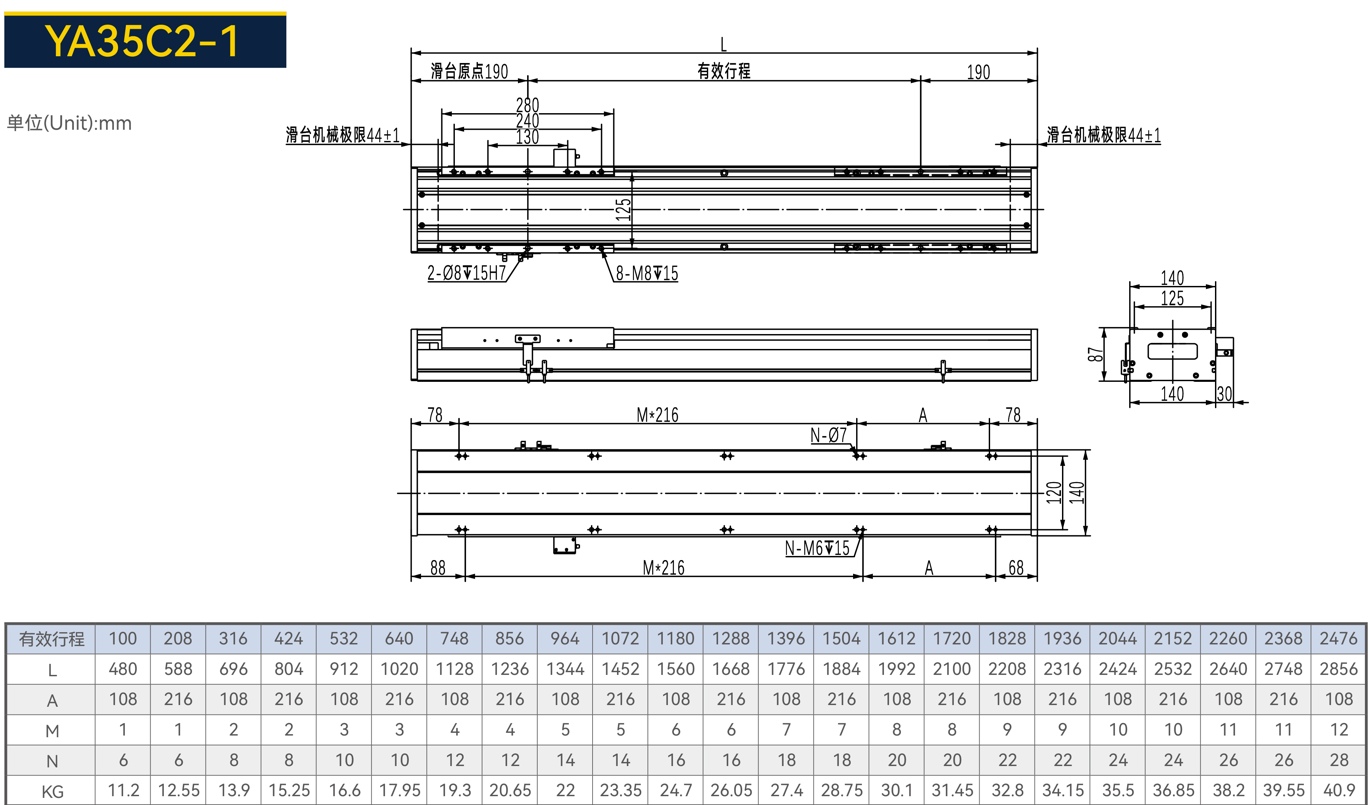

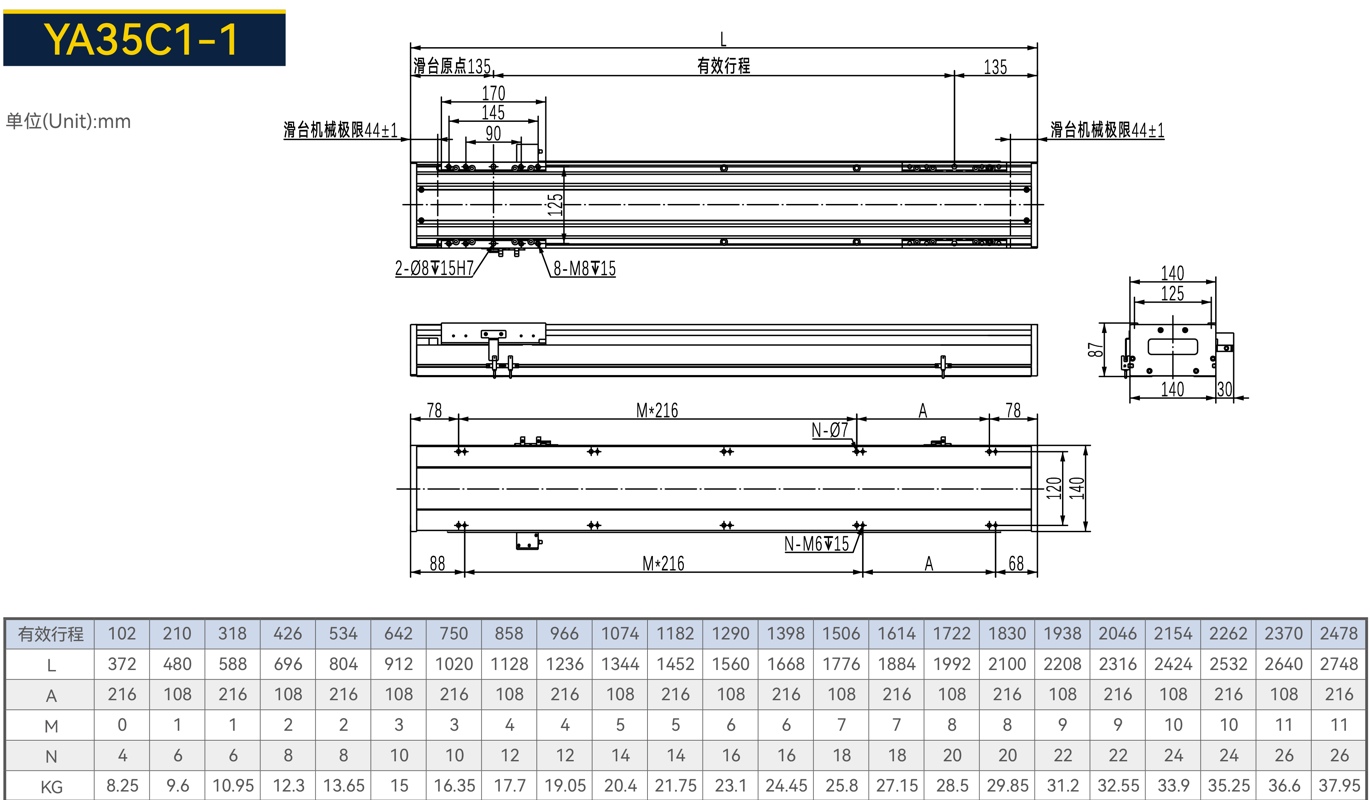

- Body Size Reference Width:140mm，Body Height:87mm
- Drive Specification400W
- Standard Stroke102~2478(Interval 108mm)
Product Data Download
Product Description
