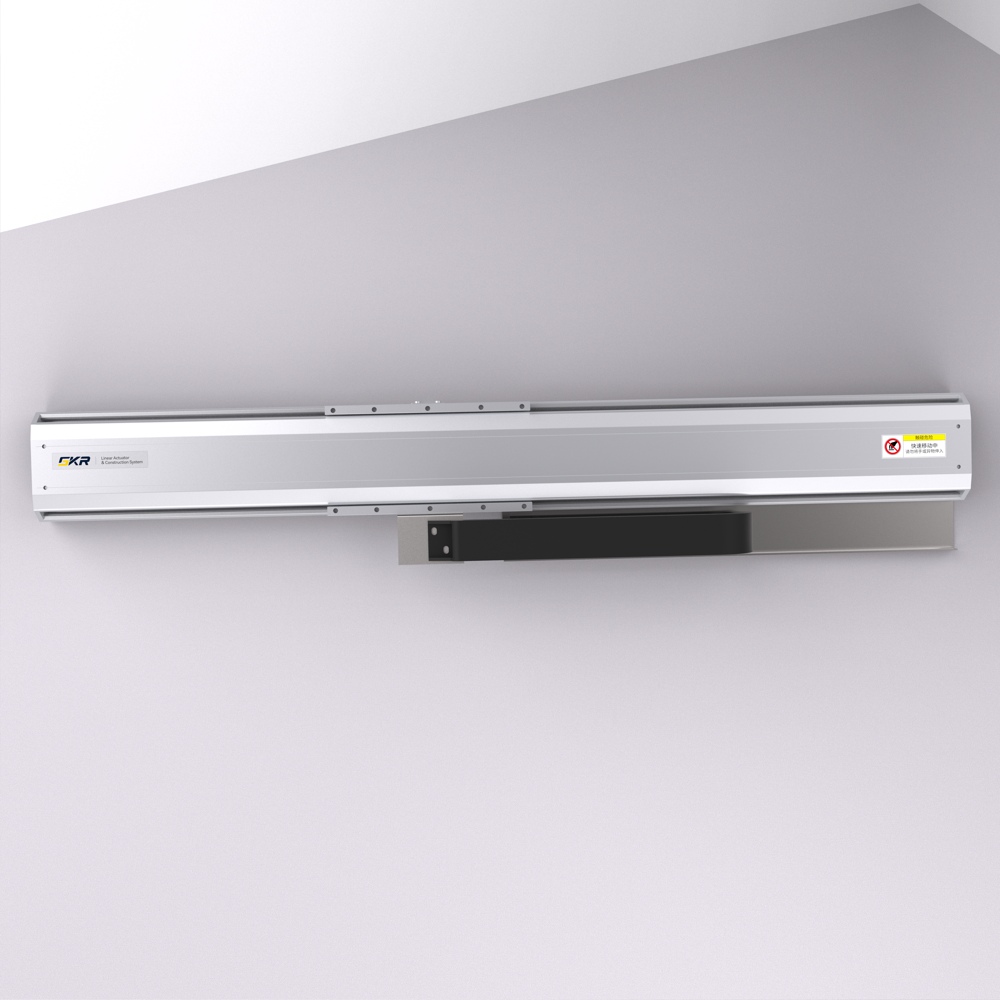

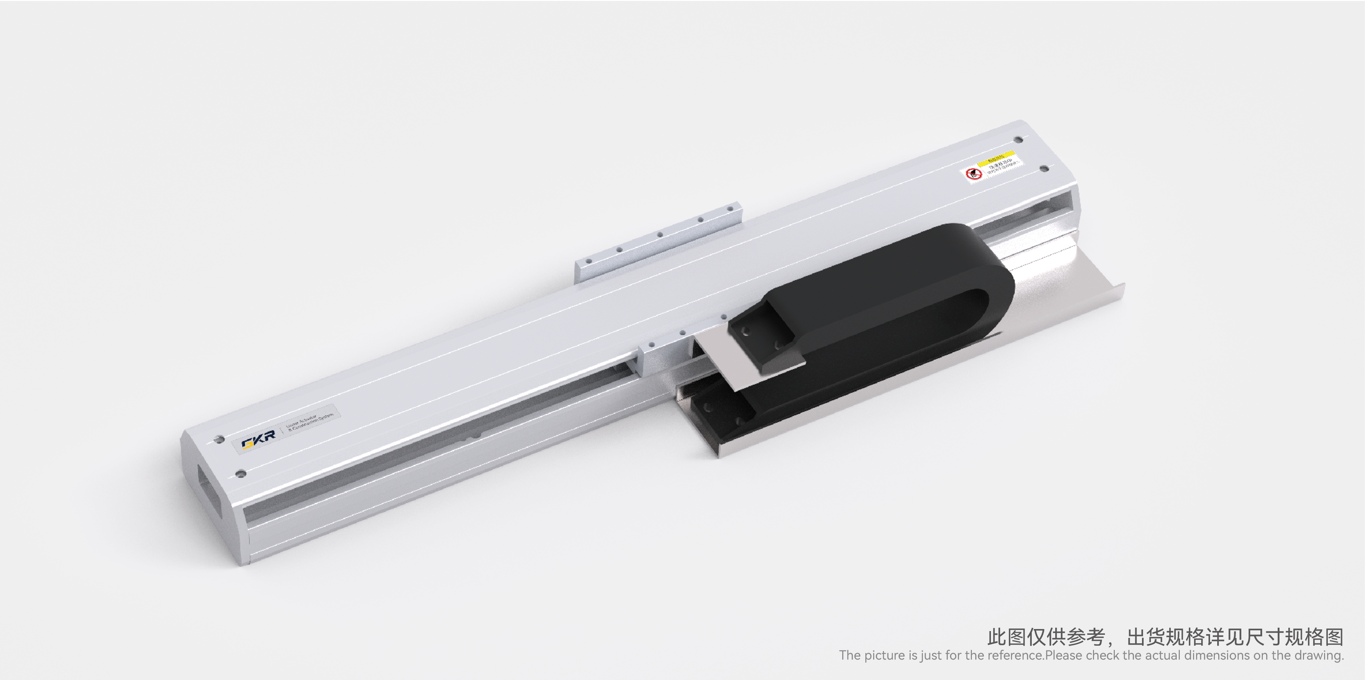

〔SKR〕Linear Module
SKR12S series · linear motor
SKR12 upgraded model, performance comparable to older SKR14 performance.- Repeatability±0.002mm
- Continuous thrust performance72/137/N
- Peak thrust performance221/405/N
- Maximum working speed4000mm/s
- Horizontal Handling Weight15kg/30kg

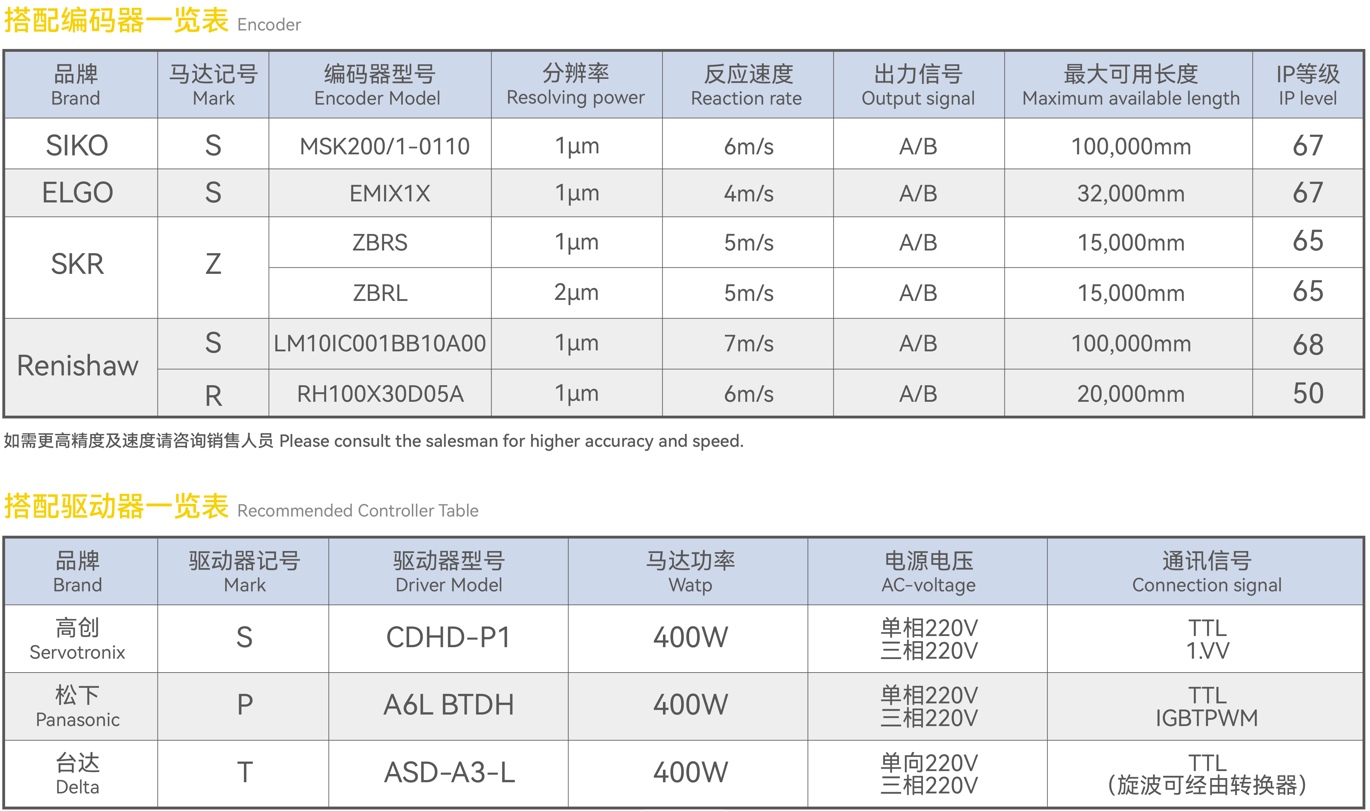

- Encoder resolution1μm/5μm
- Linear Guide Model15×12.5-2pcs

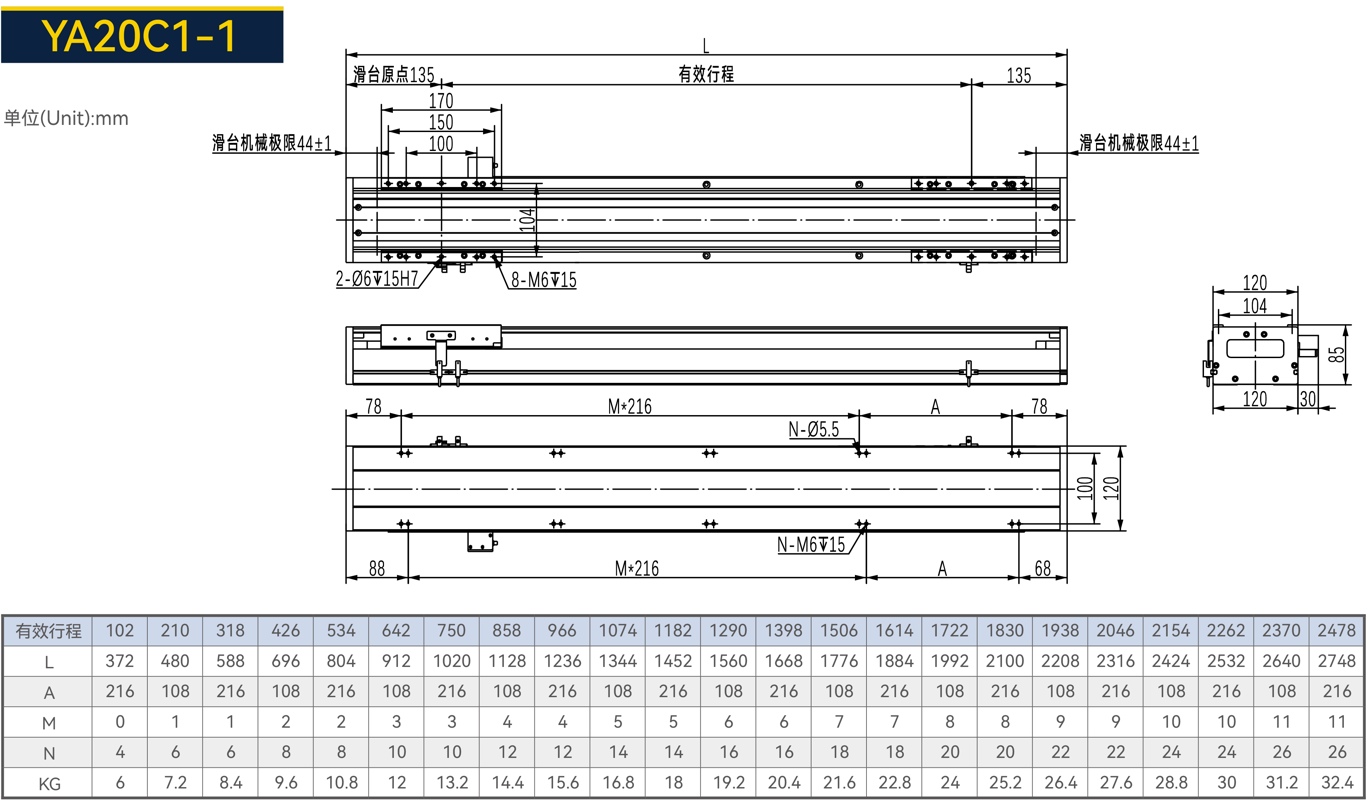

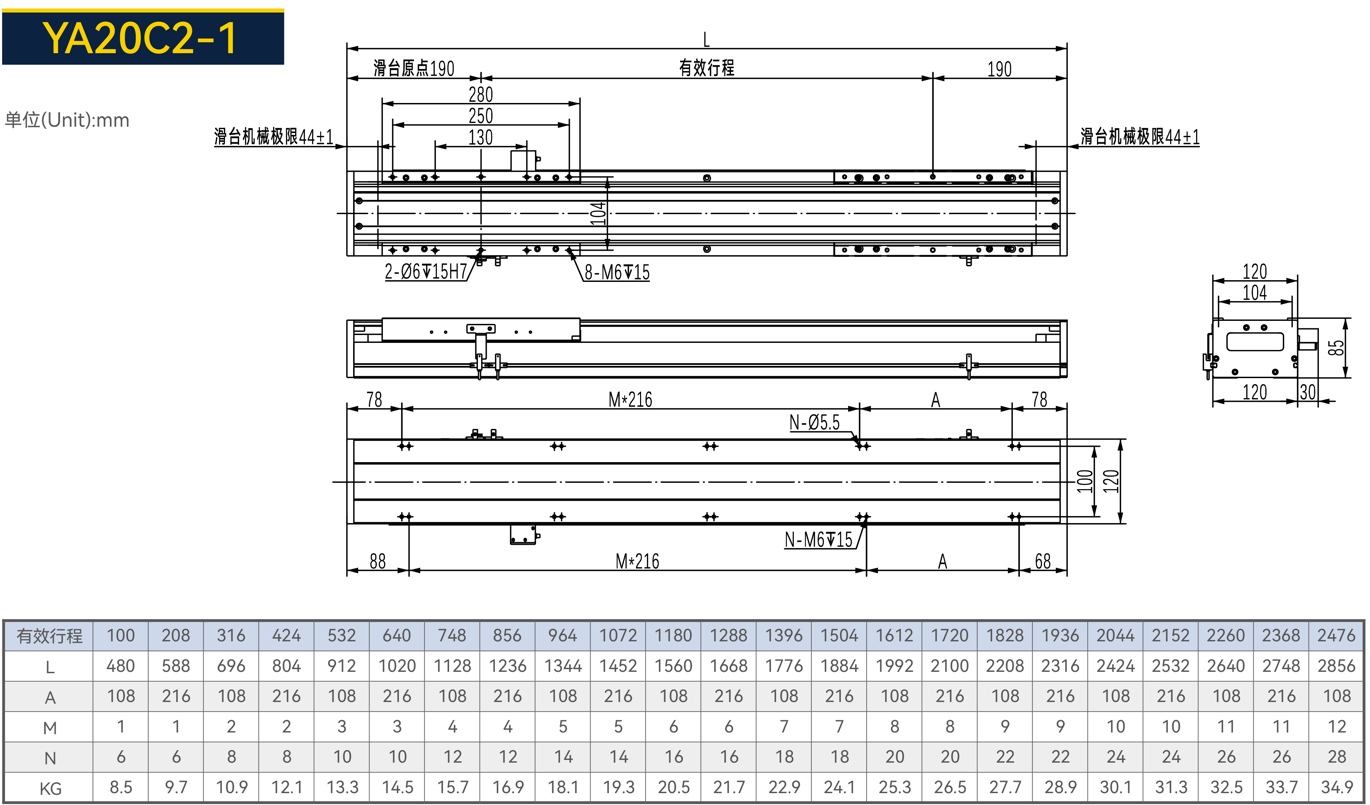

- Body Size Reference Width:140mm，Body Height:87mm
- Drive Specification400W
- Standard Stroke102~2478(Interval 108mm)

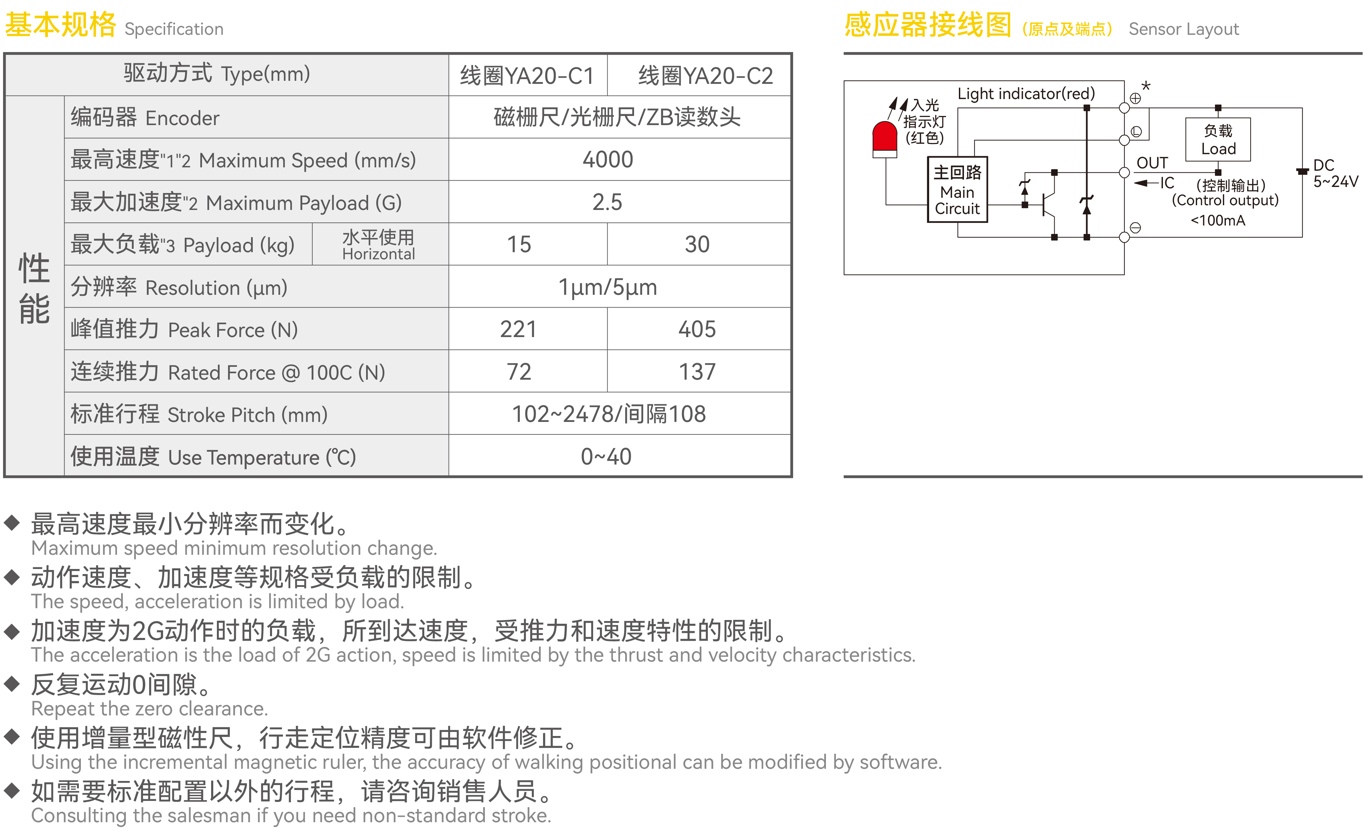

Product Data Download
Product Description
SKR SeriesOther Products
Here are other models in this series！
- View Details
SKR14S series · linear motor
- Repeatability±0.002mm
- Continuous thrust performance137/274/N
- Peak thrust performance405/810/N
- Maximum working speed3000mm/s
Medium specification linear upgrade. SKR14 upgraded model.
- View Details
SKR17S series · linear motor
- Repeatability±0.002mm
- Continuous thrust performance193/386/N
- Peak thrust performance592/1184/N
- Maximum working speed4000mm/s
Large specification linear motor slide table module. Upgraded version of SKR17.
- View Details
SKR22S series · linear motor
- Repeatability±0.002mm
- Continuous thrust performance280/560/N
- Peak thrust performance840/1680/N
- Maximum working speed4000mm/s
To the largest specification linear motor slide table.
